380V 50HZ Ceiling PU Sandwich Panel Production Line Foaming Machine



PU Ceiling Technical Parameter

1. PU foam thickness: 18mm
2. Linear Speed of production:2-5 m/min
3. Maximum Roller Forming speed:15 m/min
4. Main Power of production: ≥ 35KW
5. Cutting:pneumatic piston driving, non-stop cutting via sliding table
6. Raw Material of sheet: Aluminum Coil, corbon steel coil
7. Thickness of sheet material: 0.5-0.8mm

• This production line is a kind of specialized equipment for producing sandwich panel with the middle layer of anti-combustion polyurethane and with roof(OR wall/ceiling) forming panel as the top face layer, aluminum foil as the bottom face layer.

• The sandwich panel is 18 mm in thickness, 1000mm in width, length determined by the customer.

• The sandwich panel is mainly used as keeping warm for wall and roof . Different insulating panels with other soft facing layers could also be produced on the line.

• The operation principle of this line is as follows: raw materials of rigid-foam are delivered into the mixing head through the metering pump on the injection machine and then injected onto the bottom facing sheet going to conveyors along with the top superficial sheet. Between the upper and lower conveyors, the liquid materials are hardened into shape,after all for above actions are completed, by an automatic tracking cutting mechanism, cut into segments according to the preset length.

Working Flow of PU Ceiling




Customes Visiting

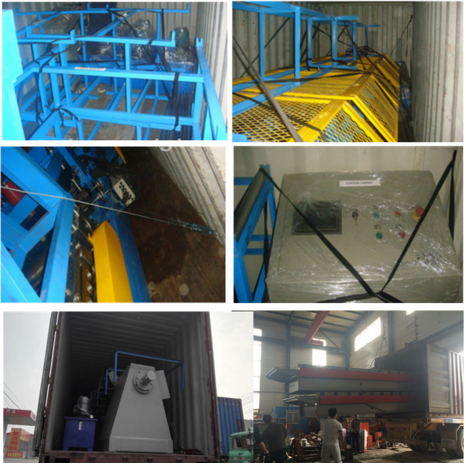

Loading Pic
