0.4-1.5mm×1250mm Slitting &Cutting Line Min Slitting Width 200mm

1. Technical Parameter

1.1 Raw material: 0.4-1.5mm galvanized steel

1.2 Finished product specification: width tolerance:1.5mm

Min slitting width: 200mm

1.3 Decoiler: Max coil weight: 6.5T

Inner diameter: 508mm

Max out diameter: 1220mm

1.4 slitting speed: 0-30m/min

1.5 driving motor: 11Kw

1.6 slitting shaft diameter: 100mm

1.7 shearing blade: 7 pieces

1.8 Max slitting pieces: 8 pieces

1.9 Min slitting width: 43mm

2.0 shearing blade material: 12CrMov

2.1 cutting thickness: 0.4-1.5mm

2.2 cutting speed: 4-5pcs/min(2000mm per pcs)

2.3 cutting station power: 5.5kw

2. Working Flow

Decoiling -- Slitting -- Cutting -- Recoiler -- Output

3. Machine Components

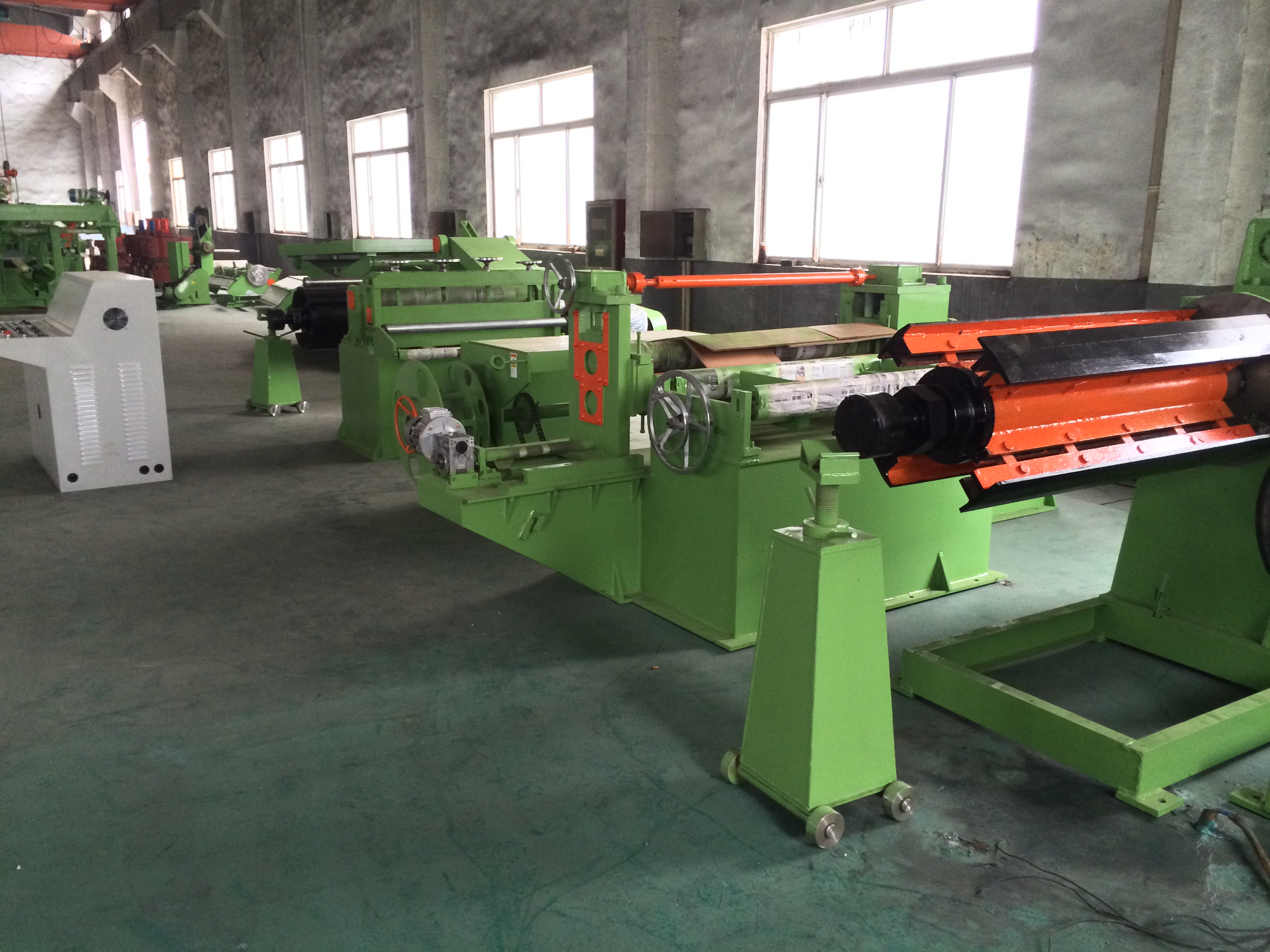

4. Machine Photo

The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises’s growing demand.
