    Hydraulic Power Automatic Metal Roofing Sheet Glazed Tile Making Machine 5 Ton Manual Decoiler

    Ask Lasest Price
    Brand Name : Sussman
    Model Number : SM-GT
    Certification : CE
    Price : negotiable
    Payment Terms : T/T L/C, Western Union, D/P, MoneyGram
    Supply Ability : 10 sets per months
    Delivery Time : 60days after deposit
    • Product Details
    • Company Profile

    Hydraulic Power Automatic Metal Roofing Sheet Glazed Tile Making Machine 5 Ton Manual Decoiler

    Hydraulic Power Automatic Metal Roofing Sheet Glazed Tile Making Machine 5 Ton Manual Decoiler



    Glazed Tile Technical Parameter

    Steel Sheet Thickness

    0.3-0.7mm (depend on requirement )

    Transmission material

    45# steel, high frequency quenching

    Transmission way

    single chain

    Material of blad

    Cr12, quenching treatment

    Capacity of Decoiler

    5 ton manual decoiler

    Forming Speed

    12-15 m/min

    Roller Groups

    16 stations

    Feeding material

    galvanized steel or color-coated coil

    Principal Axis

    45# high grade steel with quenching treatment

    Main motor power

    7.5 Kw

    Hydraulic power

    4kw

    Waranty

    12 year gurantee,lifetime service


    Glazed Tile Main Components


    S.N

    Equipment name

    Quantity

    1.

    5T manual un-coiler

    1 set

    2.

    Main roll forming machine 16 stations drived by chain


    1 set

    3.

    Hydraulic cutting

    1 set

    4.

    Control system (including control box)

    1 set

    5.

    Out tables

    2 sets









    Working Flow of Glazed Tile

    Decoiler-----feeding------roll forming ------ cutting----output table

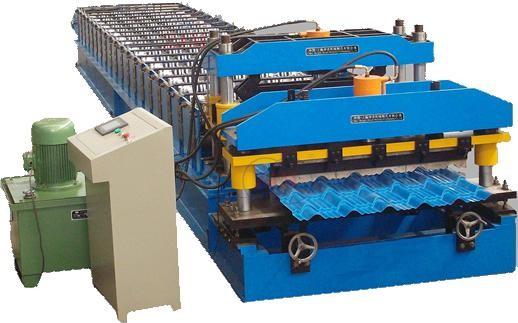

    Glazed Tile Pictures



    Usage


    The Construction machines can produce various of steel roof and wall panel, it is a new building materials ,the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short building period , beauty, light weight but high strength


    Our Services


    1. Warranty :One year,and we will provide technical support for whole life of the equipment.

    2. Delivery time: Within 60 days after deposit receipt your payment

    3. Guarantee period: 12months free service/ pay service all the machine life


    We will attend PERU ARCON EXPO
    Time:4th-7th,July,2018
    Address: Lima Jokey Plaza International Exhibition Center

    You are warmly welcome to our company to have a face to face meeting and check the machine
