11Kw Main Motor Power 18 Stations CZ Purlin Roll Forming Machine Two 2m Output Tables

Main Components

Technical Parameter

1. Steel Sheet Thickness: 1.5-3.0mm (depend on requirement )

2. Hydraulic power: 7.5Kw

3. Transmission way: double chain

4. Material of blad: Cr12, quenching treatment

5. Capacity of Decoiler: 3 ton passive decoiler

6. Forming Speed: 10-20m/min

7. Roller Groups: about18 stations main roller

8. Roller Material: GCr15 grade steel, quenching treatment

9. Roller Diameter: 180mm

10. Principal Axis: 45# high grade steel with quenching treatment

11. Main Motor Power: 11 Kw

Advantage for

Working Flow

Decoiler ---- Feeding --- Levelling--- Punching --- Cutting ---Roll forming--- Run out table

Profiles of CZ Purlin Interchangeable Roll Forming Machine

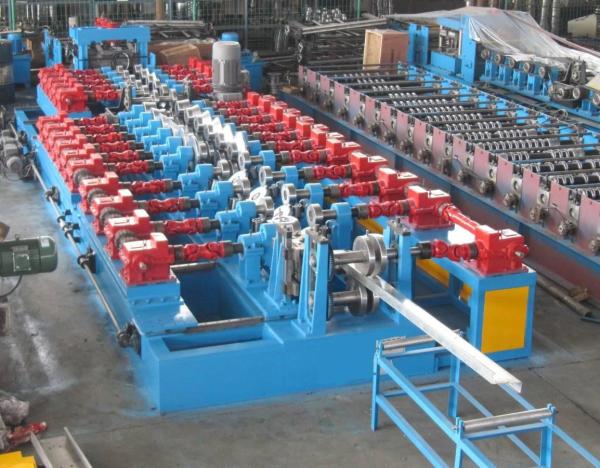

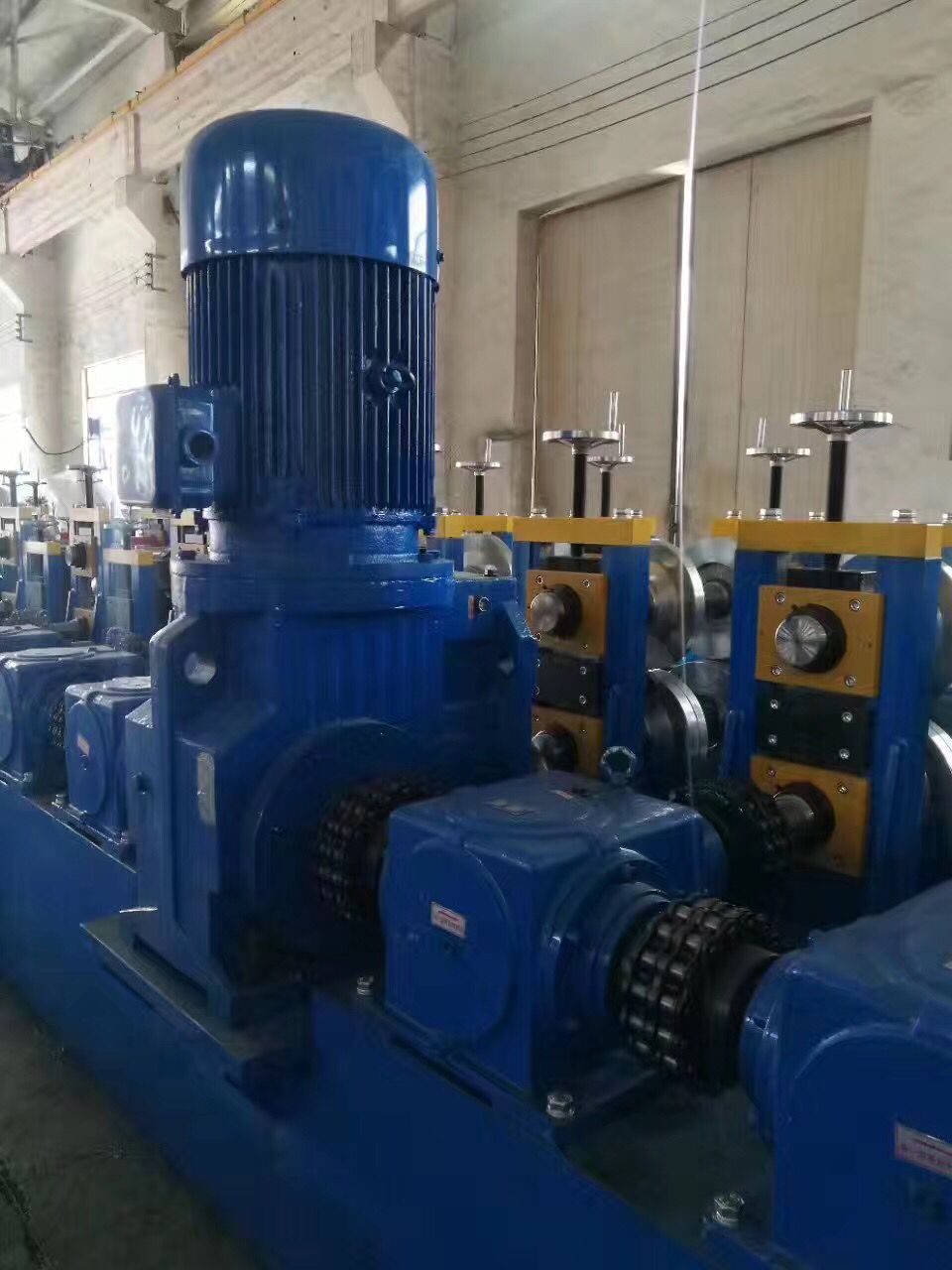

Machine picture

Loading Pics

The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises’s growing demand.
