Automatic Change Size C Z Purlin Making Machine with Automatic PLC Control Hydraulic Punching

Technical Parameter

Products specification: C80-300. Thickness: 2-3mm. Yield strength: 250Mpa max.

Running speed: 0-12m/min.

Main shaft material: 45# steel, Q&T treatment

Main axis diameter: ￠75mm

Roller material: GCr15 bearing steel, Qunching heat treatment, surface black finish. Rigidity: HRC58-62.

Roller groups: 15 groups main rollers

Levelling roller: 7 rollers levelling device

Main motor power: 11KW;

Hydraulic station motor power: 5.5KW

Punching station: 4 punch device

Electrical control system: Whole line adopted PLC control, Panasonic PLC.

Cutting method: Hydraulic powered, automatically cut to length after roll forming

Cutting mold material: Cr12 quenching treatment

Uncoiling: by 3ton passive uncoiler

Machine dimension: 11.5m L X 1.2 m W X 1.0 m H

Machine weight: about 8 tons.

Working Flow

Decoiling - Levelling - Punching - Roll Forming - Cutting -Out table

Machine Components

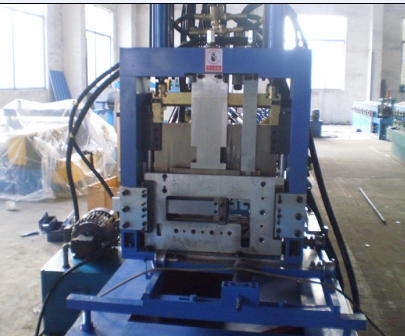

Machine Photo
