15 Steps Of Forming C Purlin Cold Roll Forming Machine High Speed 0-12m/min

1. Technical Parameter

Products specification: C80-300. thickness: 2-3mm. Yield strength: 250Mpa max.

Running speed: 0-12m/min.

Main shaft material: 45# steel, Q&T treatment

Main axis diameter: ￠75mm

Roller material: GCr15 bearing steel, Qunching heat treatment, surface black finish. Rigidity:HRC58-62.

Roller groups: 15 groups main rollers

Levelling roller: 7 rollers levelling device

Main motor power: 11KW;

Hydraulic station motor power: 5.5KW

Punching station: 2 punch device

Electrical control system: Whole line adopted PLC control, Panasonic PLC.

Cutting method: Hydraulic powered, automatically cut to length after roll forming

Cutting mold material: Cr12 quenching treatment

Uncoiling: by 5T Manual uncoiler

Drive way: 1.5 inch double chain

Machine dimension: 8m L X 0.88 m W X 1.0 m H

Machine weight: about 8 tons.

2. Working Flow

Uncoiling - Infeed guiding & Levelling- Roll forming- Cut to Length-Out put table

3. Machine Components

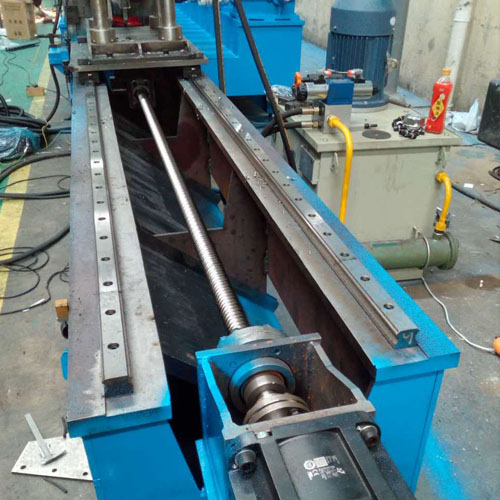

4. Machine Photo

The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises’s growing demand.
