    High Speed 0.27-0.4mm Aluminum PU Rolling Shutter Door Roll Forming Machine With Flying Saw Cutting

    Ask Lasest Price
    Brand Name : Sussman
    Model Number : SM-MSD
    Certification : CCC, SGS, ISO9001, CE
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram, D/P
    Supply Ability : 10 sets per month
    Delivery Time : 60days
    • Product Details
    • Company Profile

    High Speed 0.27-0.4mm Aluminum PU Rolling Shutter Door Roll Forming Machine With Flying Saw Cutting

    High Speed 0.27-0.4mm Aluminum PU Rolling Shutter Door Roll Forming Machine With Flying Saw Cutting


    Features


    1. Roller shutter door forming machine is configured with domestic brand or Italy brand PU online foaming facility.
    2. It has double head uncoiler help to increase coil loading efficiency.
    3. The straightening device can be adjusted to decrease the twist or curve distortion caused in process of roll forming.
    4. The sufficient rolling stations guarantee a perfect profile section.
    5. Roller shutter door forming machine adopts PLC and inverter controller.
    6. Non-stop shearing adopted can increase working efficiency.


    Technical parameter


    Item NO


    Description


    specification

    1

    Line speed

    8-15m/min

    2

    Thickness of material

    0.27-0.4 mm

    3

    Raw material

    140mm aluminum coil plate and colorful galvanize steel Material yield strength: ≤G200Mpa

    4

    Main Motor

    11kw

    5

    Roller stations

    about 46/42/38 stations

    6

    Roller material

    GCr15: model steel, HRC50-54

    7

    Shaft diameter

    40mm ,material is 45# forge steel

    8

    Transmission

    By chain 1 inch or gearbox

    9

    Material of chain

    45# forged steel with frequency quenching, 12A

    10

    Material of cutting

    Cr12Mov with quench HRC58-62°

    11

    Power Supply

    380V 50HZ 3phase (customized)

    12

    Tolerance

    less than ±0.5mm

    13

    Dimension

    24000mm× 600mm × 900mm

    14

    Weight

    About 7 ton

    15

    Frame

    H beam style

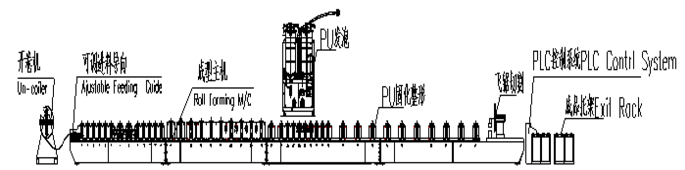

    Rolling PU Shutter Working Flow



    Rolling PU Shutter Profile Drawing


    Following profile in only for customer reference, the exactly can be provide by customer


    Main Components


    1main forming machine1 set
    2Guide Feeding device1 set
    33 Ton Manual De-coiler1 set
    4Foaming machine (just foamed one owned)1 set
    5Straighten device1 set
    6Automatic Punching device1 set
    7Pneumatic flying saw cutting machine1 set
    8Product Run out table1 set
    9PLC control system Panasonic1 set
    10Spare Parts and Tools

    1 set


    Rolling Shutter Door Forming Machine Pictures


    Applications

    Pu foam Rolling shutter door, pu foam shutter door, pu foam roller shutter door, pu foam shutter door slat



    Package&Delivery


    The machine is bare packing.

    Usually one machine can be put into one 20-40 feet container.

    We use steel wire to fix the machine in the container.
