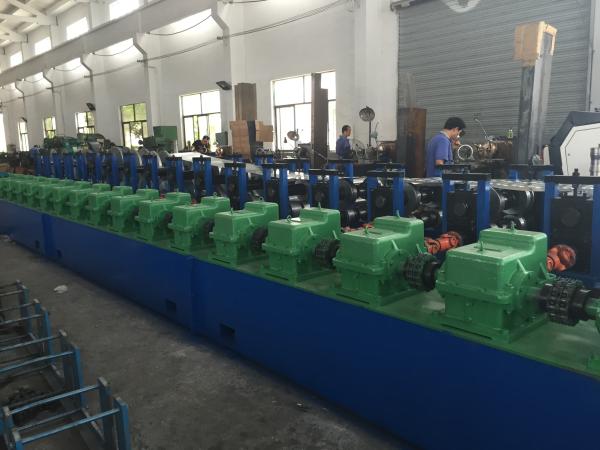

Thickness 0.7-2mm Cabel Tray Cold Roll Forming Machine Height 100/150/200mm Adjustable

Decoiler-----feeding and guiding ------punching ------ roll forming-----cutting----output table

Cable Tray Profile Drawings

Cable TrayTechincal discription

1. Decoiler

(1)Max. Width: 600 mm
(2)Inner Diameter: Φ350 – Φ600 mm
(3)Out Diameter: 1500 mm
(4)Max. Loading Capacity: 5000 kgs

2. Leveling device

(1)Max. Width: 400 mm
(2)Thickness: 1.0-2.0 mm
(3)Rollers for Leveling: 7 rollers
(4)Material for Rollers: GCr15 steel

3. Roll forming

(1)Rolled Material: Cold Rolled Steel Sheet
(2)Material Thickness: 1.0-2.0 mm
(3)Rollers: 20 Groups
(4)Material for Rollers:Gcr15 steel polished and coated with chrome HRC55-60°

(5)Shaft diameter:80mm

(6)Shaft material:high grade No.45 steel after treatment

(7)Motor Power: 18.5 kw
(8)Rolling Speed: 4-5m / min; Adjustable

(9)Voltage:380V,3Phase,50HZ

4. Punching device

(1)Adopted with 3 independent 4 pillar hydraulic punches.
(2)Motor for Hydraulic Punch: 7.5 kw
(3)Hole-Punching Modular: 3 Pcs

5. Cutting device

(1)Material for Cut-Off Modular:GCr12 steel
(2)Hardness for Heat Treatment:HRC55-60°
(3)Cut-Off Type:Hydraulic, Automatic Cut-Off

6. Control system

Type: PLC Frequency Control System with touch screen
PLC Brand: Japan Panasonic
Encoder Brand: Omron

Length Error: ±1.5mm

7. Output tables

It is simple and used to load finished product.

Length:6m
