Cable Tray Width 100-600mm High Speed Fully Automatic Cable Tray Making Machine

• Cable tray width: 100-600mm
• Working Speed: 0-10m / min
• Forming stations: according to different profiles,
• Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome, about 20 stations
• Material of Shaft: 45# Advanced Steel (Diameter: *90mm), thermal refining
• Main Power with reducer: 15KW WH Chinese Famous
• Cutting: Hydraulic Cutting Cr12mov
• Material of Cutting Knife: Cr12Mov, Quench HRC58-62
• Hydraulic Station Power: 7.5KW Wuxi Wanshen Famous Chinese Brand
• The whole machine is controlled by industry computer-PLC.
• PLC--Panasonic, Japan
• Touch Screen—Panasonic, Japan
• Drive way: Chain drive, with 1.5 inch 20A Chain

Cable Tray Profile Drawings

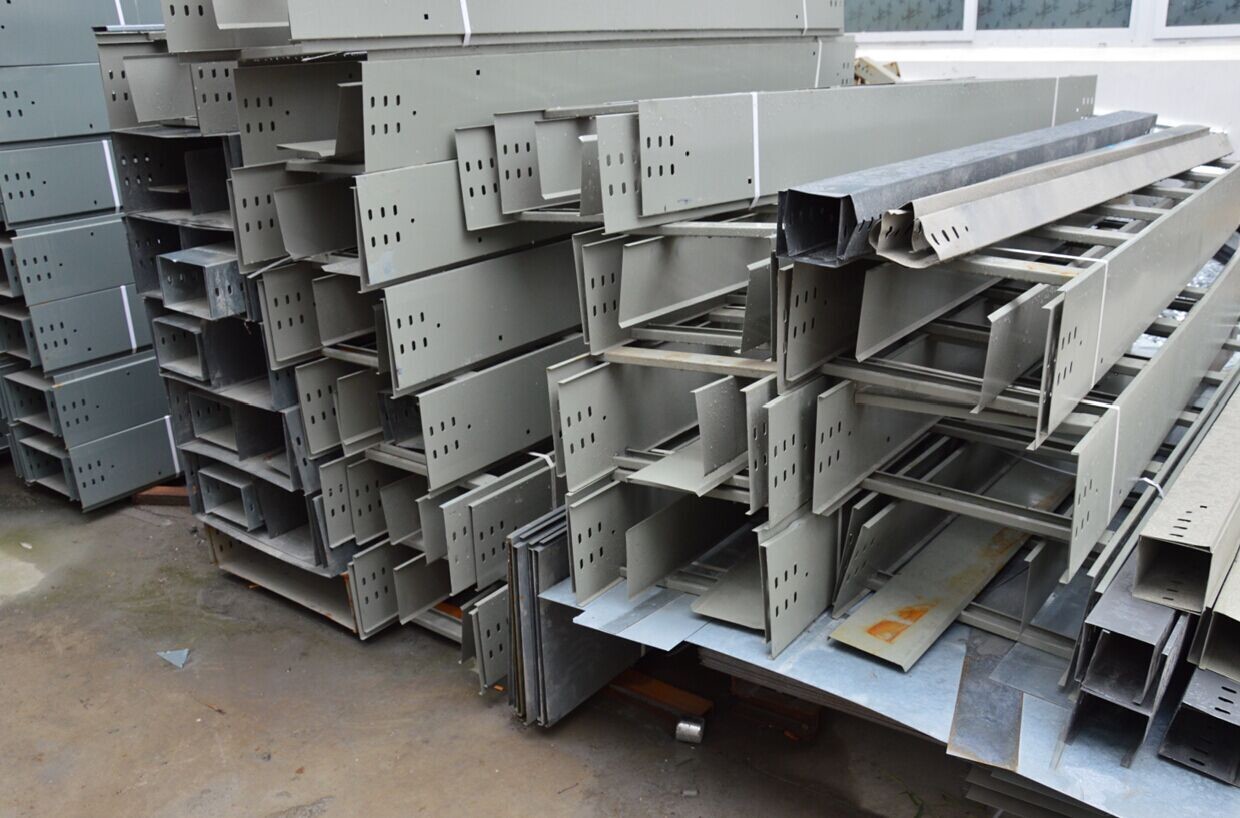

Cable Tray Product Photo

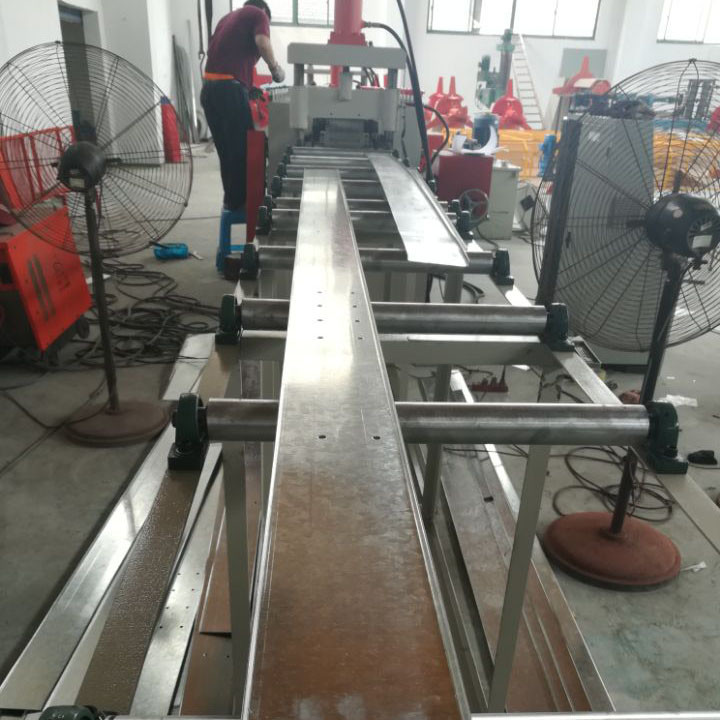

Decoiler- Levelling- Servo Feeding- Punching- Main Roll Forming - Cutting- Runout Table

In the electrical wiring of buildings, a cable tray system is used to support insulated electric cables used for power distribution and communication. Cable trays are used as an alternative to open wiring or electrical conduit systems, and are commonly used for cable management in commercial and industrial construction. They are especially useful in situations where changes to a wiring system are anticipated, since new cables can be installed by laying them in the tray, instead of pulling them through a pipe.

The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises’s growing demand.
