    Customized C Shape U Stud And Track Roll Forming Machine Galvanized steel frame making machine

    Ask Lasest Price
    Brand Name : Sussman
    Model Number : SM-CU
    Certification : SGS, ISO9001, CE
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 5 sets per month
    Delivery Time : 60days
    • Product Details
    • Company Profile

    Customized C Shape U Stud And Track Roll Forming Machine Galvanized steel frame making machine

    Customized C Shape U Stud And Track Roll Forming Machine Galvanized steel frame making machine

    The C U Stud and Track Roll Forming Machine, as known as Hat Shape Roll Forming Machine, Main Channel Roll Forming Machine, Omega Furring Channel Roll Forming Machine, Wall angle Roll Forming Machine, Ceiling Roll Forming Machine,T Grid Roll Forming Machine etc. can produce studs, tracks and many other shapes derived form Shape C.

    The thickness is normally can be formed at 0.4-1.2mm .

    If you need to more efficiency then we recommend you adpot the servo flying shear with no stop system

    The Max. whole line speed can be reached at 40m/min.

    If you want to produce more than one profile in one machine, we recomend you the double rows forming machine and triple rows forming machine to save space and economy, we called 2 in one and 3 in one machine.



    Technical Parameter

    Name

    Technical Data

    Steel sheet thickness

    0.5-0.8mm depend on requirement

    Hydrauic power

    4kw

    Transmission way

    chain

    Capacity of decoiler

    3 Ton

    Forming speed

    10-15m/min

    Roller material

    45# high grade steel with finish machining treatment, quenched HRC58-62

    Roller stations

    13 stations

    Roller diameter

    70mm

    Roller shaft

    45# high grade steel with quenching treatment

    Main motor power

    7.5kw

    Size of machine

    4500 mm* 800mm* 1000mm



    Main Components


    No

    Name

    Quantity

    1

    3 ton passive de-coiler

    1 set

    2

    Main roll forming machine

    1 set

    3

    Punching device

    1 unit

    4

    Hydraulic cutting device

    1 unit

    5

    Finished products tables

    2 units

    6

    Hydraulic station

    1 set

    7

    PLC control system

    1 set




    CU Stud Machine Working Flow

    De-coiler—→feedingwithguide—→main roll forming machine—→cutting—→ run out table






    Profile Drawing OF CU Stud Roll Forming Machine





    Advantage For CU Stud


    1. Reasonable Price
    2. High Quality
    3. 12 Months Warranty
    4. More Than 10 Years Experience
    5. Durable
    6. Reliable


    Applications

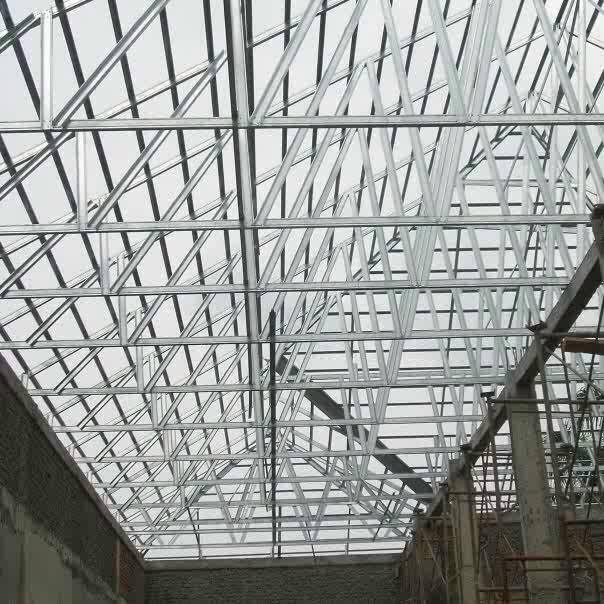

    Metal stud and track, steel stud and track, c stud, u runner, u track, furring channel, roof ceiling batten, roof truss, c truss, light weight steel truss...




    CU Stud Forming Machine Pictures
