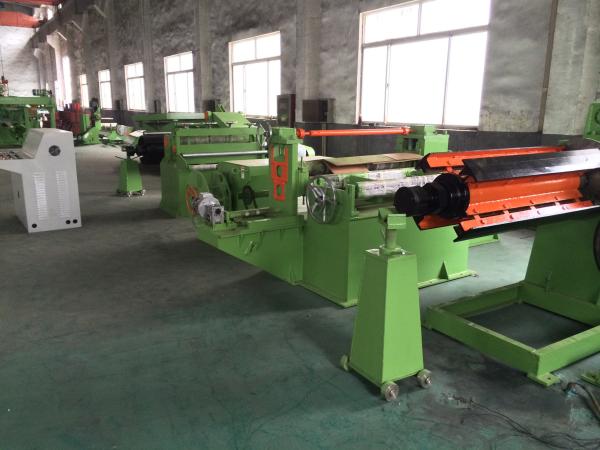

Machine Weight 15 Ton 4.0mm x 1300mm Steel Slitting Lines Hydraulic Cutter Machine 30m / min

1. Technical Parameter

• Material of coil plate: stainless coil plate
• Coil plate thickness:0. 5-4mm
• width of coil material: 1300mm
• coil weight :Max 15T
• coil I.D: ф508-660mm
• coil O.D: ф1300mm
• line speed:30m/min
• the diameter of slitting blade shaft: ф200mm
• slitting blade: φ200mmXφ340mmX20
• material of slitting blade: 6CrW2Si
• the hardness of slitting blade: HRC58°-60°
• cutting line number:

0.5-1.5mm,max 20 strips;1.5-2.5mm,max12 strips;2.5-4mm,max 8 strips

• Min width of slitting: 25mm ( plate thickness ≤ 1mm )
• Finished products coil I.D: φ508mm
• Finished products coil O.D: ≤φ1300mm
• tolerance of width error: ≤±0.05mm/2M
• other parameters: power:380V/50Hz/3Ph
• area of the whole machine:25m(L)x8m(W)
• operator needed: 1 technician and 2 general workers
• weight of the whole machine around 40T

2. Description of the whole machine line

1 hydraulic entry car

• The car can move levelly and vertically, which is convenient for putting the steel coils to the un-coiler
• capacity: 15 Tons (Max)

2 Hydraulic decoiler

• Supporting steel rolls and uncoiling
• Capacity: 15 Tons (Max)

3 Press and pinch and feed device

• It is good for improve the plates' surface and do straighting then guiding the steel plates into next process.

4 Hydraulic cutting machine

• It is used to make the plates easy to the next process by cutting the head even.

5 Looper 1

6 Slitting Machine

• Power part: this is composed of power-stand, decelerator, 55Kw direct current motor, gear distributing case, coupler, spindle, connecting-cover, etc.
• It change the blades through moviing out the bracket hydraulically and is every convenient and fast.

7 Scrap Winder

8 Looper 2

9 Tension Stand

11. Recoiler

• The motor is DC 85Kw with controller to ensure the recoiling

12. Hydraulic unload car

13. Electric control system

14. Hydraulic station

3.Our After-Sales Service Commitments

Sussman hereby solemnly promises: We implement the “three guarantees” service policy for any equipment sold by Sussman, provide free of charge installation guidelines, commissioning and maintenance of the equipment, training of the Buyer’s relevant Operators; and provide technical requirements for the installation and operation of the equipment, technical layout diagrams and other related information, provide a lifetime supply of maintenance and spare parts

The detailed measures are as follows:

1.Guidelines for installation and commissioning of equipment:

Based on the actual situation, to assist and guide the Buyer and Buyer’s technical personnel in the overall installation location, the installation of equipment, and provide Buyer with answers to their questions and related issues;

2.Provide training for operation and maintenance personnel:

Based on the Buyer’s request, Sussman will provide free of charge training of the operation and maintenance personnel;

a) The User (Buyer) can send their operation and maintenance personnel to our factory for learning and training;

b) When Sussman is doing the installation and test running of the equipment for the Buyer, the Buyer can send their personnel to participate.

3.If failure occurs in any of the machines during the “three guarantees” period(one year), then, upon the Buyer’s request, Sussman will eliminate the failure;

4. Sussman will inform all its Buyers about any upgrades and significant product improvements. Sussman will provide equipment modifications based on their costs. Sussman will provide Buyers with high-quality after-sales services in a careful and responsible attitude, provide very strong guarantee for the Buyer’s normal production.

We provide quick and satisfactory customer service, and promise to respond within 24 hours after receiving your complaints by phone or email

4.FAQ

1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .

2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.

3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.

4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.

5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome your visit us and test machine by yourself in our factory.

6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.

The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises’s growing demand.
