Pipe Mill Roll Forming Machine Gearbox Drive High Frequency Square Tube Production Line



General Information

This equipment is specially used for producingΦ20-Φ76mm,δ0.8-2.0mm high-frequency straight seam welded pipe and corresponding square pipe and special-shaped pipe(δ≤2.0mm). The composition of equipment is from decoiler to fixed length cutting saw. Rolling speed can be adjusted correspondingly within suitable range of pipe diameter and wall thickness.



Pipe Technical Parameter


1. Steel Sheet Thickness: 0.5-0.6mm (depend on requirement )
2. Voltage: 380V, 50HZ, 3 phase
3. Transmission way: single chain
4. Material of blad: Cr12, quenching treatment
5. Capacity of Decoiler: 3 ton passive decoiler
6. Forming Speed: 12m/min
7. Roller Groups: about 24 stations
8. Roller Material: 45# grade steel, quenching treatment
9. Roller Diameter: 180mm
10. Principal Axis: 45# high grade steel with quenching treatment
11. Main Motor Power: 11 Kw



Pipe Main Components

Working Flow of Round Pipe


Decoiler ---- Feeding --- Levelling --- Cutting --- Roll forming --- Fly saw cutting --- Run out table

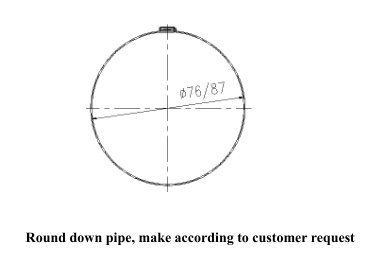

Profiles of Square Pipe

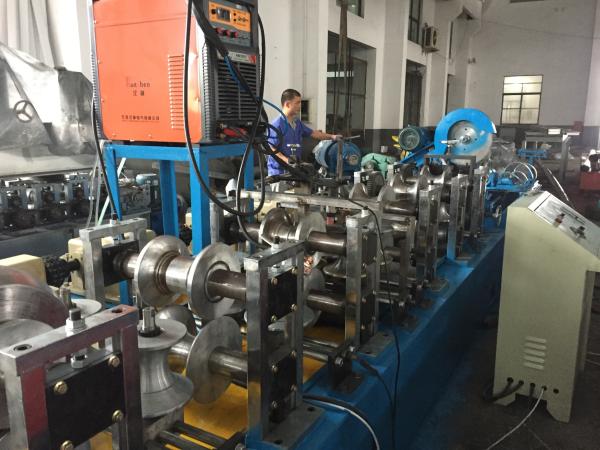

Photo Gallery


















Loading pictures




After-sale Serive
- The seller take responsibility to installation and commissioning of the equipment and free training. After machine arrive the destination, by the request of the buyer , the seller will provide 1 technical engineer to guide installation and training , and the buyer should give the technical person with full cooperated.
- Installation period: about 5 days after the complete preparation by the buyer such as the foundation and all necessary accessories.
- Training time: 5 days.
- Before departure of the engineers from seller, the buyer should pay for installation and commissioning fee 100$/day to the point account of the seller. The two-way ticket,visa, food, hotel , the translator and insurance are all should provide by buyer with full responsibility.
-The seller supply technical data (including forming mould drawing, electrical elements drawing and equipment drawing etc.)
