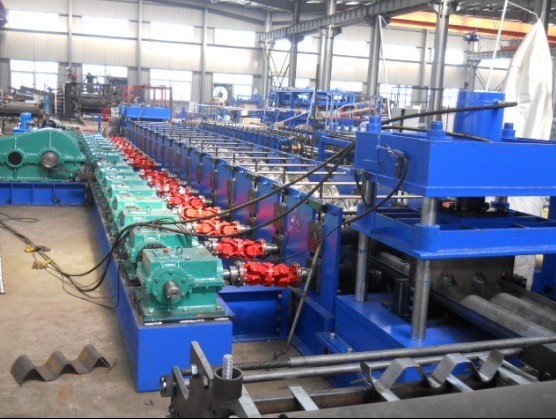

2-4mm Galvanized Steel Two wave W Beam Highway Guardrail Roll Forming Equipment PLC Control Automatic

Technical Parameter

1. Steel Sheet Thickness: 2-4mm (depend on requirement )

2. Hydraulic power: 7.5Kw

3. Transmission way: gear box

4. Material of blad: Cr12, quenching treatment

5. Capacity of Decoiler: 5 Ton hydraulic decoiler

6. Forming Speed: 10-20m/min(not including punching time)

7. Roller Groups: about 15 stations main roller

8. Roller Material: GCr15, quenching treatment

9. Roller Diameter: 180mm

10. Principal Axis: 45# high grade steel with quenching treatment

11. Main Motor Power: 22 Kw

Main Components

Working Flow of Roll Forming Machine

Decoiler ---- Feeding --- Levelling---Punching--- Roll Forming ---- Cutting ---- Run out table

Profile of product

Photo Gallery

Loading pictures

The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises’s growing demand.
