| Items | Specifications |
Material of coil | Material Thickness | 1.5-2mm |
Un Coiler | 3 tons manual |
Forming system | Rolling Speed | 6-8m/min |
Roller Stations | About 16 stations |
Roller Material | Gcr15 coated with chrome
|
Shaft diameter | 65mm |
Maim Motor Power | 11kw |
Pinching motor | 2.2kw |
Motor cutting Power | 7.5kw |
Cutting
system | Material Of Cutting | CR12mov with quench treatment |
Hardness | HRC58-62 |
Tolerance | +-1.5mm |
Cutting blades | 3 sets |
Electrical control system | Electric Source | 380V, 50HZ,3 phase
Also can satisfy Customer’s requirey |
Control System | PLC (Panasonic) as list in the note |
| Weight | About 6 tons |
| Way Of Drive | 1.2 inch chain |
Main Components
Machine list |
5 ton passive de-coiler | 1 set |
Leveller | 1 set |
Punching | 4 sets |
Main roll forming machine | 1 set |
PLC Control box | 1 unit |
Hydraulic station | 1 unit |
Out table | 2 units |
Working Flow of Roll Forming Machine
A.Passive
Decoiler..........................................................To
load and uncoiling material
(We also have Electric Decoiler and Hydraulic Decoiler to hold the
heavy material.)
B.Servo Feeding
Applicator............................................To feed the
material accurately
C.Hydraulic/Press
Punching...........................................To punch as
requirements
D.Roll Forming
Unit.........................................................To
roll form as requirements
E.Hydraulic
Cutting.........................................................To
cut sheets as desired length
(We also have non-stop hydraulic cutting system.)
F.Output
Table................................................................Support
the finished products
De-coiler—→Level device —→Main roll forming machine—→Hydraulic cutting—→ Run out table

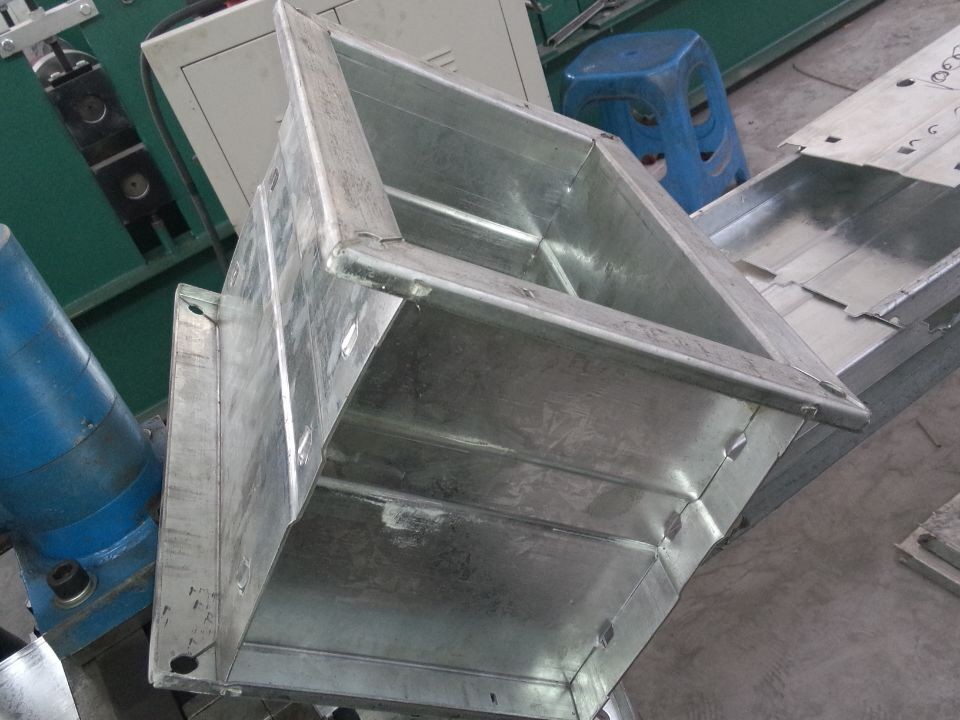

Profile of product
Photo Gallery
Loading pictures
After-sale Serive
- The seller take responsibility to installation and commissioning
of the equipment and free training. After machine arrive the
destination, by the request of the buyer , the seller will provide
1 technical engineer to guide installation and training , and the
buyer should give the technical person with full cooperated.
- Installation period: about 5 days after the complete preparation
by the buyer such as the foundation and all necessary accessories.
- Training time: 5 days.
- Before departure of the engineers from seller, the buyer should
pay for installation and commissioning fee 100$/day to the point
account of the seller. The two-way ticket,visa, food, hotel , the
translator and insurance are all should provide by buyer with full
responsibility.
-The seller supply technical data (including forming mould drawing,
electrical elements drawing and equipment drawing etc.)
