Tee Grid Roll Forming Equipment Machine
Technical Parameter
| Items | Specifications |
Material of coil | Material Thickness | 0.4-0.8 mm galvanized Steel Coil |
De-coiler | Weight | 3 ton manual |
Knurls | Two sides | 1 sets of roll |
Punching | numbers | 3 sets |
Forming system | Rolling Speed | 18-20 m/min |
Roller Stations | About 12 stations forming |
Roller Material | Gcr15 Steel with quenching |
Shaft Material | 45# Steel Diameter 75mm shaft |
Maim Motor Power | 7.5 kw |
Hydraulic cutting Power | 4 kw |
Cutting system | Material Of Cutting | CR12 with quench treatment |
Hardness | HRC58-62 |
Tolerance | +-1.5mm |
Cutting blade | 1 set of cutting blade |
Electrical control system | Electric Source | 380V, 50HZ,3 phase |
Control System | PLC with touch screen Japanese Panasonic and Yaskawa Brand |
Joint system | stations | About 5 stations |
Weight | TON | About 3 tons |
Way Of Drive | | Gear box |
Size of machine | mm | Length 5500mm* Width 800mm* Height 1400m |
Main Components
Machine list |
3 ton passive de-coiler | 2 sets | |
Hydraulic punching device | 3 sets | |
Main roll forming machine | 1 set | |
PLC Control box | 1 unit | |
Hydraulic station | 1 unit | |
Locking device for joints | 1 unit | |
Out table | 2 units | |
Working Flow of Roll Forming Machine
A.Passive
Decoiler..........................................................To
load and uncoiling material
(We also have Electric Decoiler and Hydraulic Decoiler to hold the
heavy material.)
B.Servo Feeding
Applicator............................................To feed the
material accurately
C.Hydraulic/Press
Punching...........................................To punch as
requirements
D.Roll Forming
Unit.........................................................To
roll form as requirements
E.Hydraulic
Cutting.........................................................To
cut sheets as desired length
(We also have non-stop hydraulic cutting system.)
F.Output
Table................................................................Support
the finished products
Uncoiling—Feeding&Leveling--Roll forming—Cutting—Products
collecting

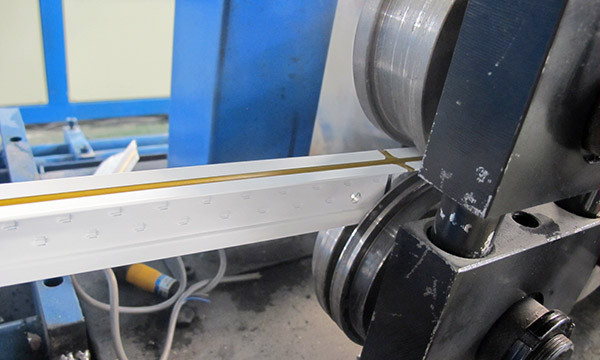

Profile of product
Photo Gallery
Loading pictures
Company Profile
Sussman Machinery (wuxi) Co., Ltd. is specialized in building
materials of light steel structure. Since the factory founded 10
years before, it always designs and produces various type profile
of roll forming machine.
The main products of factory is Roller shutter door, PU sandwish
panel line, pre-painted steel forming machine, Racking roll forming
machine, the cable tray roll forming machine, Glazed Tile forming
machine, Automatical C/Z Purlin forming machine, Floor Deck forming
machine, Guardrail forming machine, Down
Pipe forming machine, the whole carriage plate for car beam unit,
Steel storage unit, etc. The products
are widely used in warehouse, factory buildings, supermarket,
Nursing homes, villas and other
construction projects, Our factory can meet the construction
enterprises, automobile industry, Iron and
steel production enterprises' growing demands.
