    Chain Drive Light Steel Keel Omega Purlin Roll Forming Machine For Ceiling Framing System Line Speed 10-15m/min

    Ask Lasest Price
    Brand Name : Sussman
    Model Number : SM- CM
    Certification : SGS.CE.ISO
    Price : USD16500-USD18500 Per set
    Payment Terms : L/C, T/T
    Supply Ability : 10 sets per month
    Delivery Time : 60 days after get the first payment
    • Product Details
    • Company Profile

    Chain Drive Light Steel Keel Omega Purlin Roll Forming Machine For Ceiling Framing System Line Speed 10-15m/min

    Chain Drive Light Steel Keel Omega Purlin Roll Forming Machine For Ceiling Framing System Line Speed 10-15m/min



    Technical Parameter

    Items

    Specifications

    Material of coil

    Material Thickness

    0.3-0.8mm galvanized

    De-coiler

    Weight

    3 ton manual

    Forming system

    Roller Stations

    13 stations

    Roller Material

    Cr12 Steel with quenching

    Shaft Material

    45# Steel Diameter 70mm shaft

    Maim Motor Power

    7.5 kw

    Hydraulic cutting Power

    4 kw

    Cutting
    system

    Material Of Cutting

    CR12 with quench treatment

    Hardness

    HRC58-62

    Tolerance

    +-1.5mm

    Electrical control system

    Electric Source

    220V, 60HZ,3 phase

    Control System

    PLC with touch screen Japanese Panasonic and Yaskawa Brand

    Way Of Drive

    1 inch single chain

    Size of machine

    Length 7500mm* Width 800mm* Height 1000m

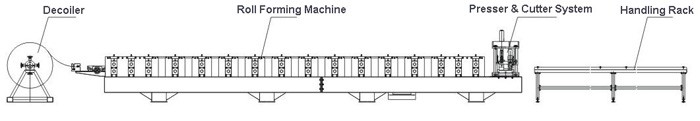

    Omega Purlin Making Line Main Components


    No.NameQty
    1Manual decoiler1
    2Hydraulic punching machine1
    3Main roll forming machine1
    4PLC Control box1
    5Hydraulic Pump Station1
    6Output table1


    Working Flow of Roll Forming Machine

    Feeding with guide—Roll forming——Cutting—Products collecting




    Standard Profile and Drading Of Product
