    Light Gauge Steel Window / Door J Channel Roll Forming Machine High Speed with PLC Control Automatic

    Ask Lasest Price
    Brand Name : Sussman
    Model Number : SS-JC
    Certification : CE ISO 9001
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram, D/P, D/A
    Supply Ability : 10 set per month
    Delivery Time : 60-90 days
    • Product Details
    • Company Profile

    Light Gauge Steel Window / Door J Channel Roll Forming Machine High Speed with PLC Control Automatic

    Light Gauge Steel Window / Door J Channel Roll Forming Machine High Speed with PLC Control Automatic

    J Channle Making Machine Technical Parameter

    Item NO


    Description


    Offered specification

    1.0

    Roll forming machine

    1.1

    Rolling speed

    0-12m/min(not include cutting time)

    1.2

    Rolling thickness

    0.5-1.0mm

    1.3

    Raw material

    Galvanized steel sheet

    1.6

    dimension

    4500×1600×1500(mm)

    1.7

    Effective width

    60mm-300mm

    1.8

    Roller stations

    13 stations

    1.9

    Roller material

    45# steel, coated with chrome, Quenching

    1.10

    Shaft diameter

    Φ60mm ,material is 45# forge steel

    1.11

    Transmission

    By Chain

    1.12

    Material of chain

    45# forged steel with frequency quenching, 12A

    1.14

    Material of cutting

    Cr12Mov with quench HRC58-62°

    1.15

    Cutting Tolerance

    6m+-1.5mm


    Main Components

    No

    Name

    quantity

    1

    3 ton passive de-coiler

    1 set

    2

    Main roll forming machine

    1 set

    3

    Control box

    1 unit

    4

    Hydraulic station

    1 unit

    5

    Cutting device

    1 unit

    6

    Out tables

    2 units


    Working Flow of Roll Forming Machine

    feedingwithguide—Rollforming——Cutting—Products collecting

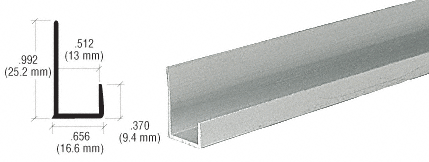

    Standard Profile Drawing of product

    j-chanel profile.jpgj-chanel profile 1.jpg

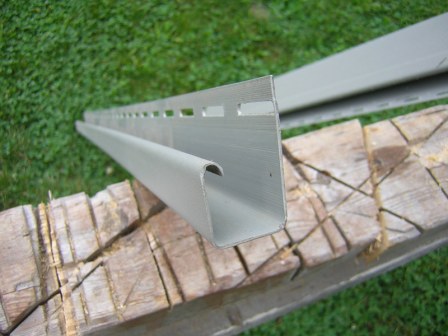

    j-chanel sample.jpg



    Production process
