1mm Galvanized Coils Stud and Track Roll Forming Machine Chain Transmission

    Buy cheap 1mm Galvanized Coils Stud and Track Roll Forming Machine Chain Transmission from wholesalers

    Buy cheap 1mm Galvanized Coils Stud and Track Roll Forming Machine Chain Transmission from wholesalers
    • Buy cheap 1mm Galvanized Coils Stud and Track Roll Forming Machine Chain Transmission from wholesalers
    • Buy cheap 1mm Galvanized Coils Stud and Track Roll Forming Machine Chain Transmission from wholesalers

    1mm Galvanized Coils Stud and Track Roll Forming Machine Chain Transmission

    Ask Lasest Price
    Brand Name : Sussman
    Model Number : RF-ST
    Certification : CE, SGS, ISO
    Price : negotiable
    Supply Ability : 10 sets/month
    Delivery Time : 60 days after deposit
    • Product Details
    • Company Profile

    1mm Galvanized Coils Stud and Track Roll Forming Machine Chain Transmission

    Material 1mm Galvanized Coils or Black Steel Top Hat Stud Roll Forming Machine Chain Transmission


    Technical Data


    Item NO

    Description


    Offered specification

    1.0Roll forming machineCeiling batten
    1.1Rolling speed25-30m/min(not include cutting time)
    1.2Rolling thickness0.48 mm to 0.55mm
    1.3Raw materialG550 Galvanized coils
    1.4Main motor5.5kw with gear box
    1.5PLCPanasonic Brand
    1.6dimensionAbout 5500×435×1000(mm)
    1.7Effective width66mm
    1.18Voltage220V, 60HZ, 3phase
    1.9Roller stationsAbout 13 stations
    1.10Roller materialCr40 Nitriding
    1.11Shaft diameterΦ50mm ,material is 45# forge steel
    1.12TransmissionBy chain One inch chain
    1.13Material of chain45# forged steel with frequency quenching
    1.14Material of cuttingCr12Mov with quench HRC58-62°
    1.15Tolerance6m+-1.5mm

    2. Working Flow


    Decoiler—feedingwithguide—Rollforming——Cutting—Products collecting



    3. Machine Components


    Machine list3 ton passive de-coiler1 set
    Feeding with guide1 set
    Main roll forming machine1 set
    PLC Control box1 unit
    Hydraulic station1 unit

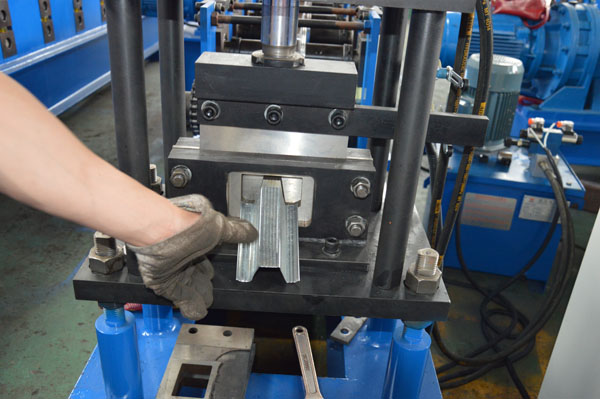

    Stop cutting device1 unit
    Safety cover1 unit
    Out table2 units

    4. Profile Drawing



    5. Machine Photo





    6.Other components
