    High Efficient Storage Shelf Rack Roll Forming Machine 8-10m/min Speed

    Ask Lasest Price
    Brand Name : Sussman
    Model Number : SS-BB
    Certification : SGS,CE.ISO
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 10 sets per month
    Delivery Time : 70 days
    • Product Details
    • Company Profile

    High Efficient Storage Shelf Rack Roll Forming Machine 8-10m/min Speed

    High Efficient Storage Shelf Roll Forming Machine 15 Roller Stations Worm Gear Box


    Technical Parameter


    Forming speed: 0~15M/Min

    Product speed: 8~10M/min

    Roller material: GCR12 bearing steel

    Forming stations: 15 stations + 4 fold ed machine

    Shaft diameter: 75mm

    Forming structure: Guiding column,chrome-plated

    Machine base frame: tube welding structure ,milling gauntry,punch holes automatic

    Transmission type: worm gear box

    Motor power of main machine: 7.5KW*2sets

    Bearing: HRB brand ,needle roll bearing, taper bearing

    Bolt: 8.8 grades

    Weight: about 8 tons

    Cutting die : Cr12MoV

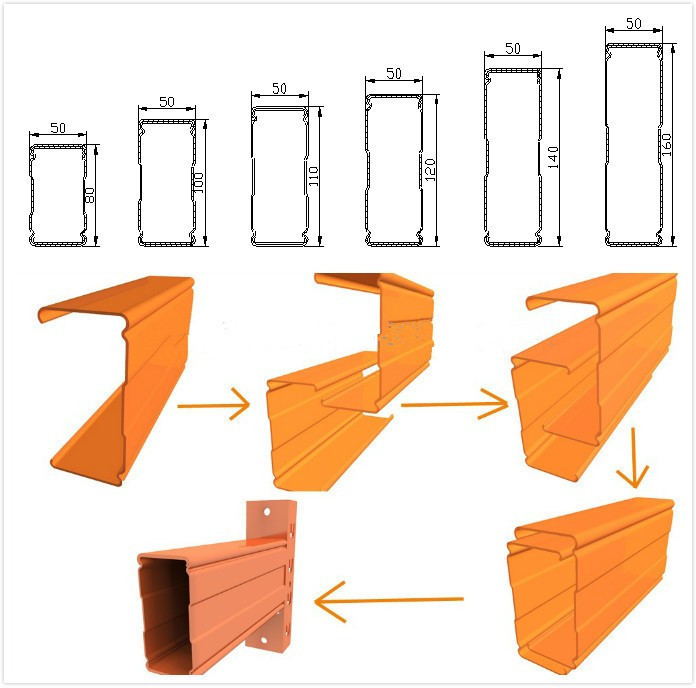

    Profile: +/-0.5mm as drawing

    Cutting Length Tolerance + / - 1 mm


    Main Components


    No.

    Item Name

    Quantity

    Remark

    1

    Manual de-coiler

    1 set

    3 tons

    2

    Leveling machine

    1set

    Wannan motor

    3

    Cutting device

    1 set

    Engineer define

    4

    Punching device

    2 sets

    Hydraulic Prepunching

    5

    Roll Forming Machine

    1 set

    ¢75mm

    6

    Cutter mold

    6 units

    Engineer define

    7

    Hydraulic station

    1 set

    Engineer define

    7

    Product stand table

    5 sets

    2 m*5

    8

    Folded machine

    1 set

    ¢75mm *4

    9

    Tool Box

    1 box

    standard

    10

    Books

    1 book

    Use manual, Wire diagram,

    Machine layout drawing,

    Maintenance book,

    11

    Spare parts

    1 set




    Working Flow of Roll Forming Machine


    Manual de-coiler-->leveling machine -- roll forming machine –Cutting device–>Product Stand Tables


    working flow.jpg

    Photo Gallery



    FAQ


    1) Q: Are you manufacturer or trading company?
    A: We are manufacturer and trading company .

    2) Q: Do you provide installing and training overseas?
    A: Overseas machine install and worker training services are optional.

    3) Q: How is your after sales support?
    A: We provide technical support on line as well as overseas services by skillful technicians.


    4) Q: How does your factory do regarding quality control?
    A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
