High Speed Rack Shelf Roll Forming Machine 15 Roller Stations Worm Gear Box

Technical Parameter

Forming speed: 0~15M/Min

Product speed: 8~10M/min

Roller material: GCR12 bearing steel

Forming stations: 15 stations + 4 fold ed machine

Shaft diameter: 75mm

Forming structure: Guiding column,chrome-plated

Machine base frame: tube welding structure ,milling gauntry,punch holes automatic

Transmission type: worm gear box

Motor power of main machine: 7.5KW*2sets

Bearing: HRB brand ,needle roll bearing, taper bearing

Bolt: 8.8 grades

Weight: about 8 tons

Cutting die : Cr12MoV

Profile: +/-0.5mm as drawing

Cutting Length Tolerance + / - 1 mm

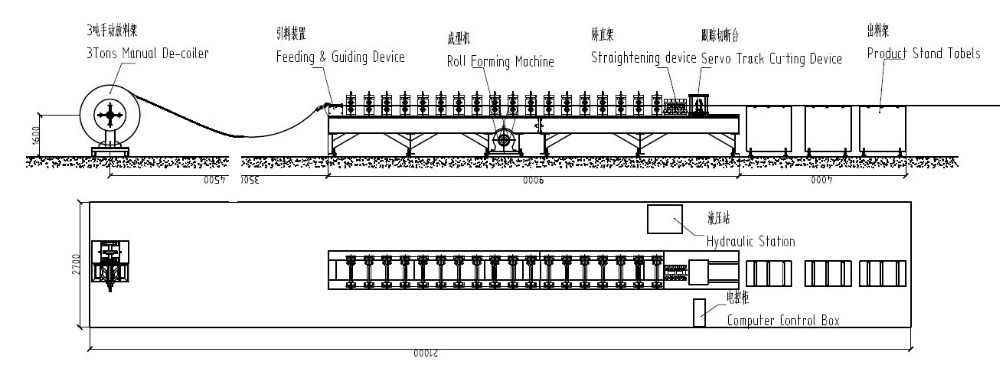

Working Flow of Roll Forming Machine

Manual de-coiler-->leveling machine -- roll forming machine –Cutting device–>Product Stand Tables

Main Components

Roll Formed Pallet Rack Advantages:

• Adaptable: Adapts to the weight, volume and size of many products and the teardrop style is interchangeable among different manufacturers. Excellent for warehouses storing products with varying sizes.
• Convenience: A boltless, easy to assemble product. Provides great stock management with direct access to each pallet. Because the clips can be moved quickly, shelves can be easily changed to accommodate various heights and load sizes.
• Cost-Effective: Less expensive and more adaptable than structural steel racks, the cost provides a good return on investment. The roll-formed design, using flat rolled carbon steel, still provides strength necessary for most applications.

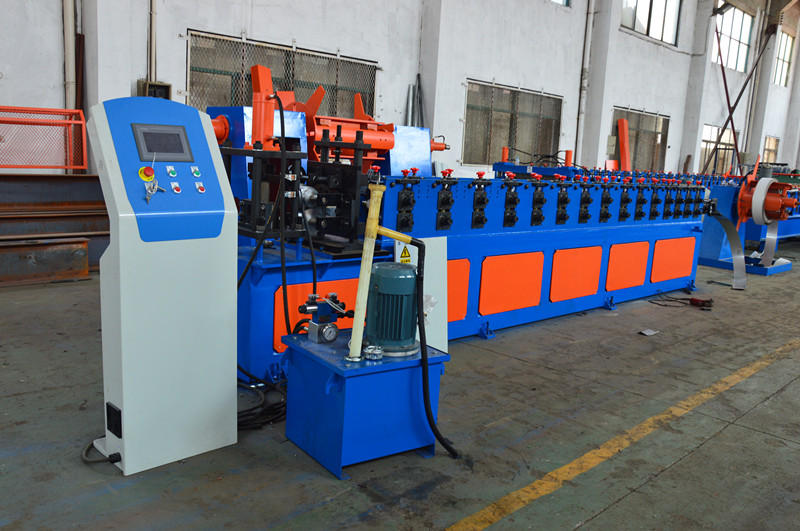

Photo Gallery

FAQ

1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .

2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.

3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.

4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.

5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome your visit us and test machine by yourself in our factory.

6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.

The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises’s growing demand.
