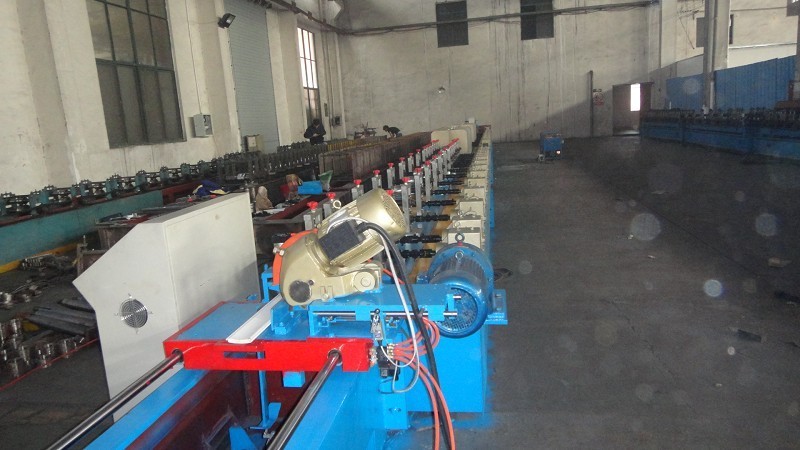

77mmFully Automatic PU Shutter Door Roll Forming Machine Foam Filled Insulated


Technical Parameter

Material type aluminum coil plate and colorful galvanize steel
Material thickness: 0.27- 0.4mm. coil width 140mm
Material yield strength: ≤G200Mpa
Main specification
a. Decoiler
Manual un-coiling Capacity: ≤3 T
b. Main datas of forming machine
Forming stands: about 46 stands
Roller material GCr15: model steel, HRC50-54
Axial diameter: Φ40mm
Main axial material: No 45 steel HRB260-280
Driving part is gear box transmission
Frequency conversion decelerating Delta
PLC control: fix length control ±1mm (Delta)
Main components: CHINT, DELIXI
The precision of roller: less than ±0.5mm
Main roll forming machine motor: 380V, 50HZ, 11kw (or according to your requirements)
Machine basement material: H beam
Foaming machine: 1 set (China top brand)
Pneumatic flying punching machine 1 set
Material of cut: Cr12Mov Quench: HRC58-62
Automatic punching device 1 set
Finished products table: 1 set
Working speed: 8-15m/min
dimensions of main forming machine
24000mm× 600mm × 900mm
Machine weight: about 7T

Main Components

Working Flow of Roll Forming Machine

Decoiler—feedingdevice—mainforming—PUinjection---straightendevice—punching—FlysawCutting ---run out table

Profile of product

Photo Gallery

Loading pictures

The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises’s growing demand.
