Automatic Stud And Track Roll Forming Machine 10 Roller Stations ​

1. Technical Parameter

Material thickness: 1mm galvanized coils or black steel

profile width: about 22mm

profile height: about 5.5mm

rolling speed: 10-15m/min

roller stations: 10 stations

roller material: 45# steel, with quenching 60mm shaft

main motor power: 3Kw

hydraulic cutting power: 3Kw

cutting blade material: Cr12

power supply: 380V, 50Hz, 3Phase

machine weight: about 2.5Tons

machine size: Length 3500mm* Width 500mm* Height 800mm

2. Working Flow

Feeding with guide—Rollforming——Cutting—Products collecting

3. Machine Components

4. Profile Drawing

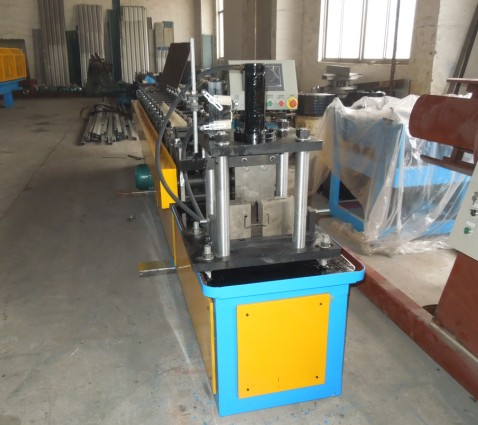

5. Machine Photo

6.Components

7.Our After-Sales Service Commitments

1.Guidelines for installation and commissioning of equipment:

Based on the actual situation, to assist and guide the Buyer and Buyer’s technical personnel in the overall installation location, the installation of equipment, and provide Buyer with answers to their questions and related issues;

2.Provide training for operation and maintenance personnel:

Based on the Buyer’s request, Sussman will provide free of charge training of the operation and maintenance personnel;

a) The User (Buyer) can send their operation and maintenance personnel to our factory for learning and training;

b) When Sussman is doing the installation and test running of the equipment for the Buyer, the Buyer can send their personnel to participate.

3.If failure occurs in any of the machines during the “three guarantees” period(one year), then, upon the Buyer’s request, Sussman will eliminate the failure;

The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises’s growing demand.
