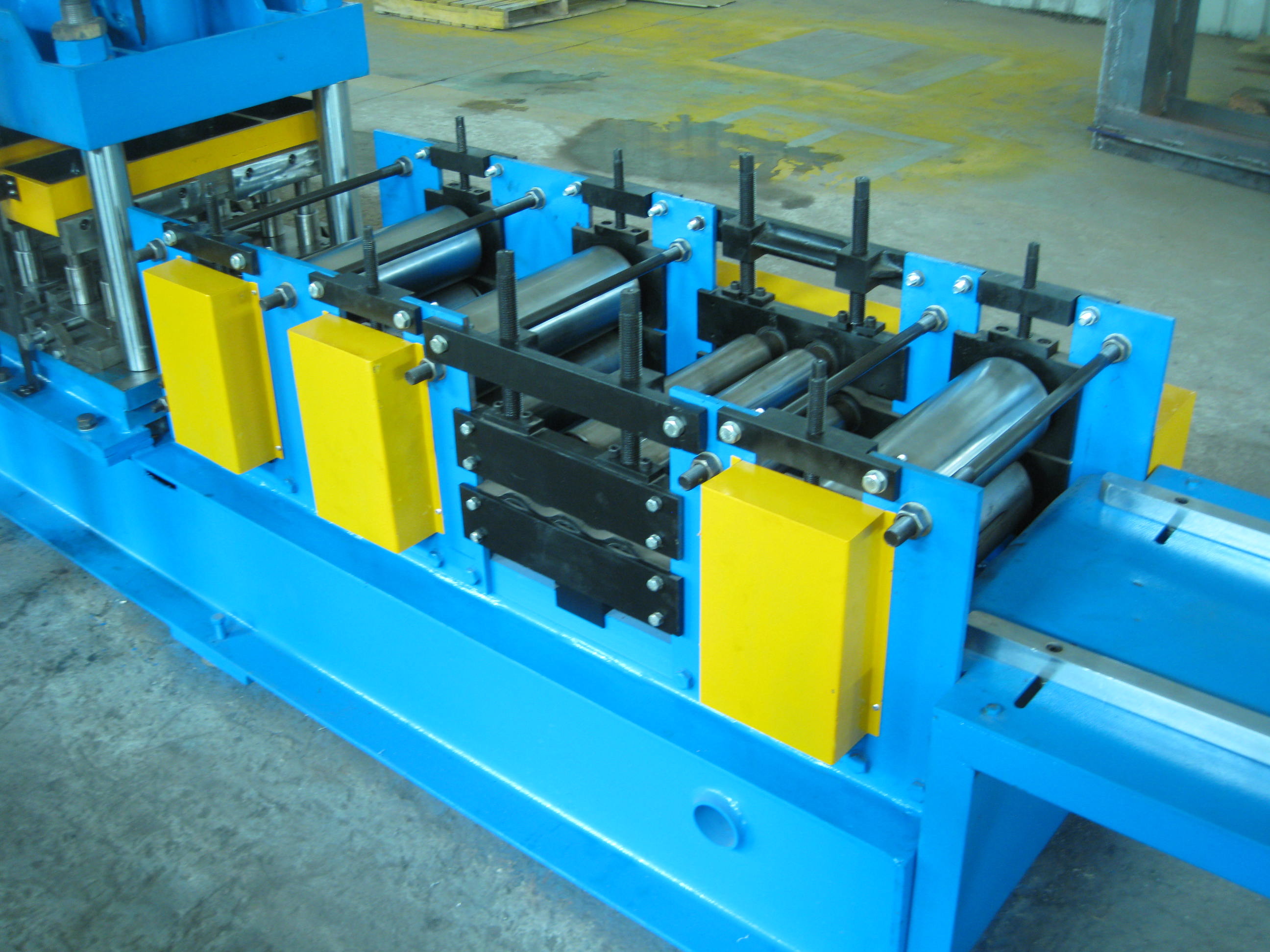

Galvanized Steel Iron Door Frame Making Machine PLC Control 18 Stations​

Technical Parameter

1. Suitable Plate Material: thickness 1.5-2.0mm, Galvanized steel or blank steel

2. Working Speed: 12-15 meters / min

3. Forming Steps: 18 stations

4. Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome

5. Material of Shaft: 45# Advanced Steel (Diameter: 76mm), thermal refining

6. Driven system: gear box drive

7. Main Power with reducer:15KW WH Chinese Famous

8. Cutting: Hydraulic Cutting Cr12mov

9. Material of Cutting Knife: Cr12Mov, Quench HRC58-62

10. Hydraulic Station Power: 7.5KW Wuxi Wanshen Famous Chinese Brand

11. The whole machine is controlled by industry computer-PLC.

12 PLC--Siemens, Japan English and Chinese Language

13 Touch Screen-- Siemens Japan

14. Encoder--Omron, Japan

15 Electric parts--Schneider

16 Machine direction: from Right to Left

Main Components

Working Flow of Roll Forming Machine

Uncoiling—Feeding&Leveling--Punching Device---Roll forming—Cutting—Products collecting

Profile of product

Photo Gallery

Loading pictures

The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises’s growing demand.
