100mm - 600mm Width Adjustable Moderate Cable Tray Roll Forming Machine

Cable tray roll forming machine is commonly used for cable management in commercial and industrial construction. This intelligent roll former could produce different types of cable trays like: Solid bottom cable tray, Trough cable tray, Channel cable tray, Perforated cable tray, Non perforated cable tray and Trunking cable tray etc. with different raw materials like: hot-dip galvanized steel, pre-galvanized steel, hot-rolled and cold-rolled steel, stainless steel and aluminum. Thickness range of material is 0.6mm-1.2mm or 1-2mm. You could set up 10 different lengths for cable tray.

Technical Data:

5.1. Suitable Plate Material:

Steel thickness:1-2mm cold rolled steel and galvanized steel

Profile width after forming:100-600mm automatic change

Height of profile: 50-150mm

Sheet length: 2000—6000mm

5.2. Working Speed: About 2-3 meters / min

5.3. Forming Steps: about 20 stations

5.4. Material of Roller: Cr12, Quench HRC58-62 Plated Chrome

5.5. Material of Shaft: 45# Advanced Steel (Diameter: 90mm), thermal refining

5. 6. Driven system: Chain Driven

5.7. Main Power with reducer: 22KW WH Chinese Famous

5.8. Cutting: Hydraulic Cutting Cr12mov

5.9. Material of Cutting Knife: Cr12Mov, Quench HRC58-62

5.10. The whole machine is controlled by industry computer-PLC.

5.11 PLC--PLC-Delta

5.12 Encoder--Omron, Japan

5.13 Electric parts--Schneider

5.14 Adjust the width by the motors and the rails, controlled by the PLC

Machine List:

Profile Drawing:

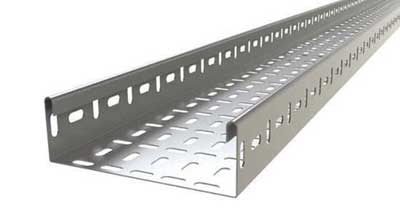

Finished Products






Working Flow

Decoiler- Levelling- Servo Feeding- Punching- Main Roll Forming - Cutting- Runout Table


Application

In the electrical wiring of buildings, a cable tray system is used to support insulated electric cables used for power distribution and communication. Cable trays are used as an alternative to open wiring or electrical conduit systems, and are commonly used for cable management in commercial and industrial construction. They are especially useful in situations where changes to a wiring system are anticipated, since new cables can be installed by laying them in the tray, instead of pulling them through a pipe.

Loading Pictures

The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises’s growing demand.
