T90 T100 T120 Trapezoidal Roof Panel Sheet Roll Forming Machine Tile Making Machine

Trapezio Tile Forming Machine 100/952, or T100 is popular in Brazil

trapezoidal shaped T90 is popular in Argentina

TR-3 in Peru

Technical Parameter

1.Passive uncoiler 5 ton

2.Main motor power:7.5KW*2

3.Motor power of hydraulic station:5.5KW

4.Forming station: about 38 stands

5.Main machine size:9.5 m×1.2m×1.25m

6.Forming speed: 10m/min

7.Diameter of roller shaft:¢76mm

9.Roller surface coating with chrome:single face≥0.05mm

10.Forming thickness:0.3-0.8mm

11.profile according to GB/T12755-91 standards

12.material of cutting blade: Cr12

13.frequency: Yaskawa

14. PLC Siemens

Machine List:

Profile Drawing:

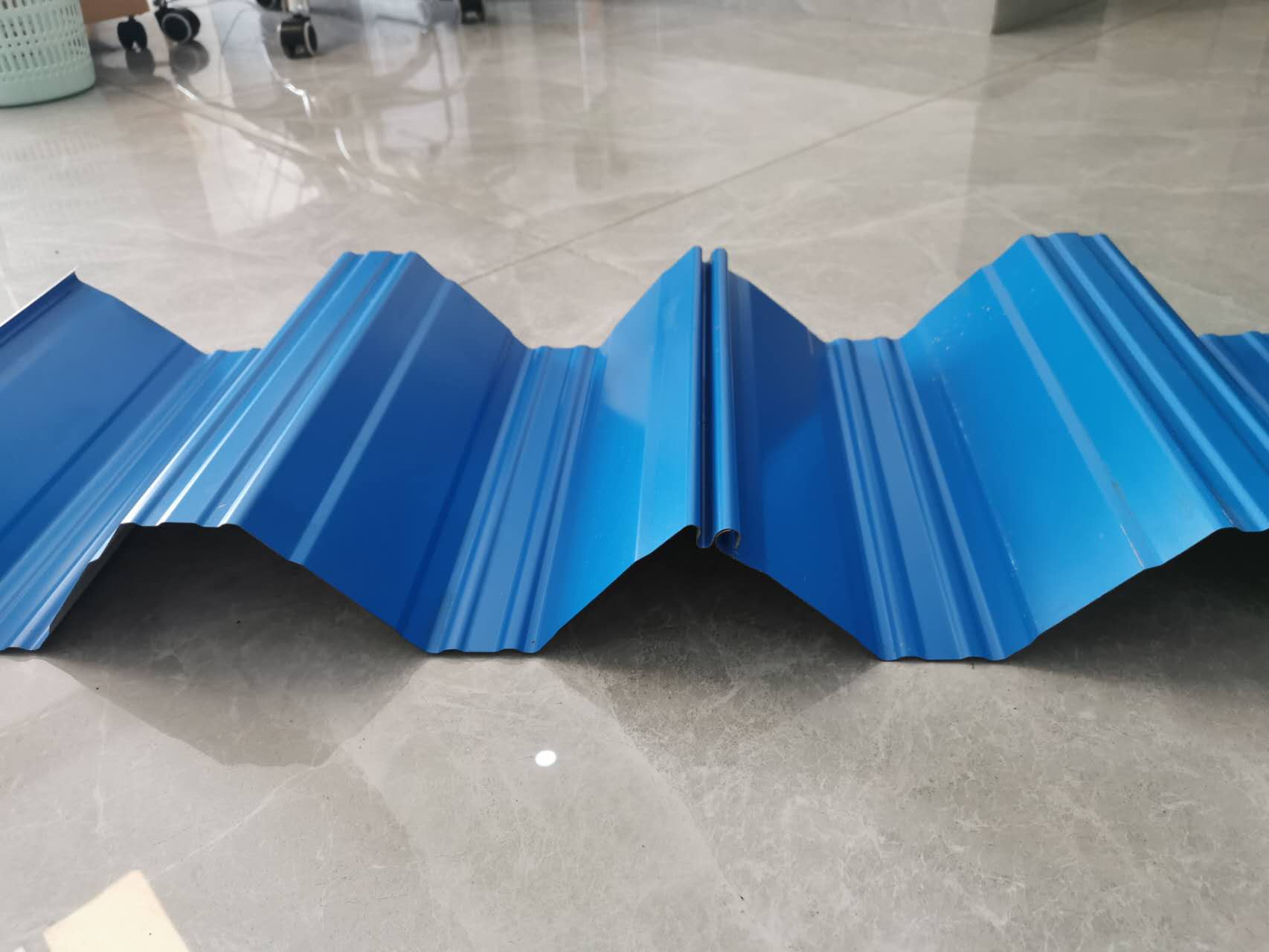

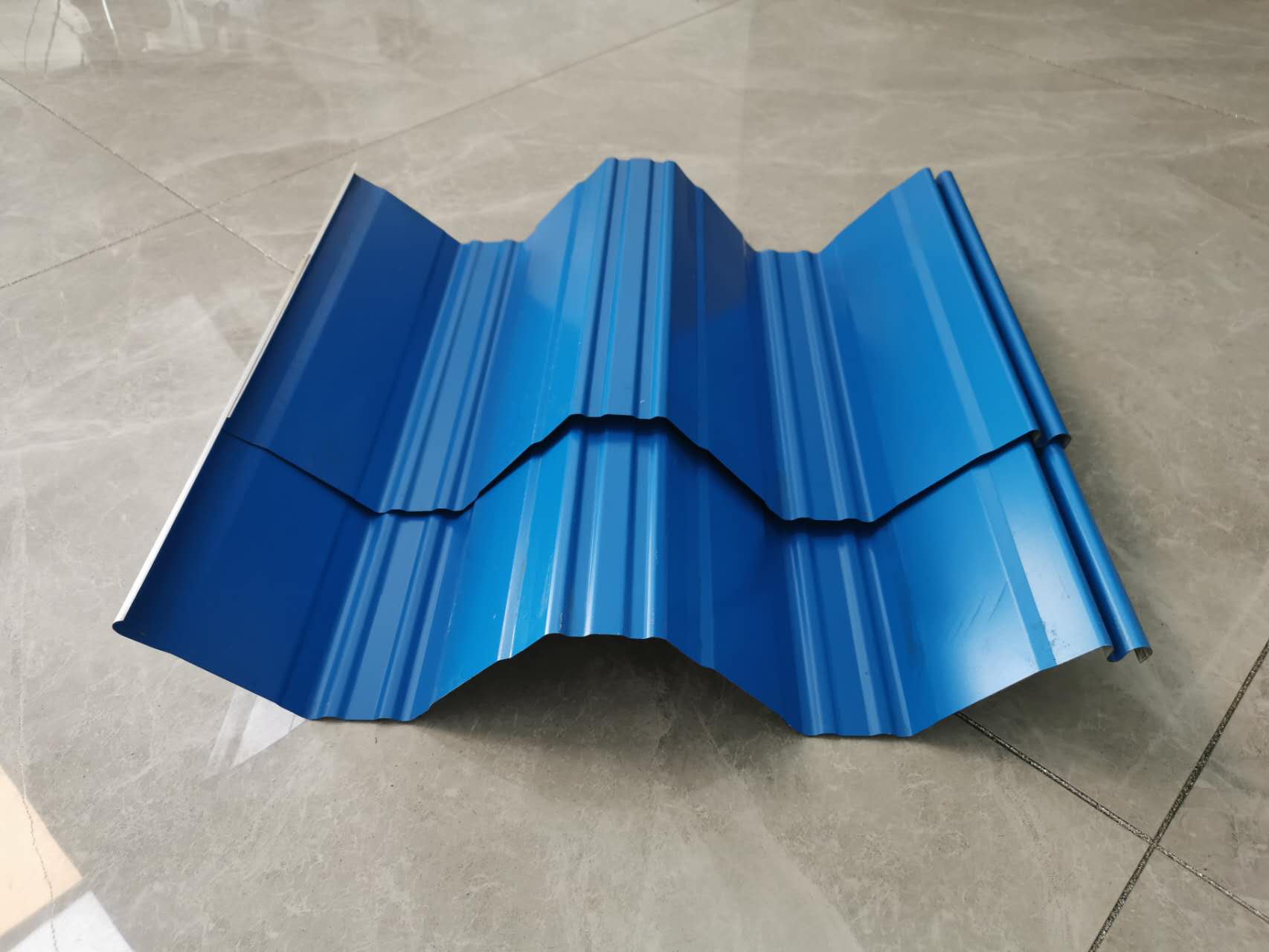

Sample pictures:

Application:

The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises’s growing demand.
