Customized Roof Tile Roll Forming Machine 1000mm Steel PPGI 0.3-0.8mm

Ask Lasest Price
Brand Name :	Sussman
Model Number :	SM-GT
Certification :	CE,SGS,ISO
Price :	negotiable
Payment Terms :	T/T L/C
Supply Ability :	10 sets per months
Delivery Time :	60 days after deposit

Add to Cart

Product Details
Company Profile

Customized Roof Tile Roll Forming Machine 1000mm Steel PPGI 0.3-0.8mm

1000 mm Glazed Roof Tile Roll Forming Machine Step Tile Roofing Sheet Forming Machine

Glazed Tile Technical Parameter

(1) 5Tons manual un-coiler
Description	There are different choices, please turn to the catalogue of un-coiler
(2) Entry bench & Manual Pre-shearing device
Function	Smart cut control, to cut off the end of the final piece of sheet only
Shearing Thickness	0.3-0.8mm
(3) The general machine parameter
Suitable roll forming material	Color steel sheet or galvanized steel
Feeding width	1220mm
Frame design	Wall-plate-frame-design /New-stand-frame-design
Roll stages	18 stages
Material of forming roller	45# steel, CNC lathes, Hard Chrome Coated
Shafts Diameter	Φ75 mm
Main motor power	7.5KW with reducer
Max. Line speed of roll former	3-4m/min
Hydraulic Stair-Drawing & Cutting Device	There is one hydraulic press to make the stair according to requirement and hydraulic post cut for cut off
Hydraulic group power	7.5KW
Material of cutting blade	Cr12, heat treatment
Electric Standard	380V /50Hz/3PH or as the customer's requirements
Machine Dimensions	9500mm×1800mm×160mm
Major Color of Machine Painted	RAL 5015 (Blue) or as per customer's requirements
(4) PLC Control system
PLC	Delta / Siemens brand
Touch Screen	Delta / Siemens brand
Inverter	Delta
Encoder	Omron brand
(5) Product rack
Description	un-powered, 2 units, 2 meters

Glazed Tile Main Components

S.N	Equipment name	Quantity
1.	5T passive un-coiler	1 set
2.	Main roll forming machine	1 set
3.	Hydraulic cutting	1 set
4.	Control system (including control box)	1 set
5.	Out tables	2 sets

Working Flow of Glazed Tile

Decoiler----Feeding---Roll forming---Cutting---Run out tables

Profiles of Glazed Tile

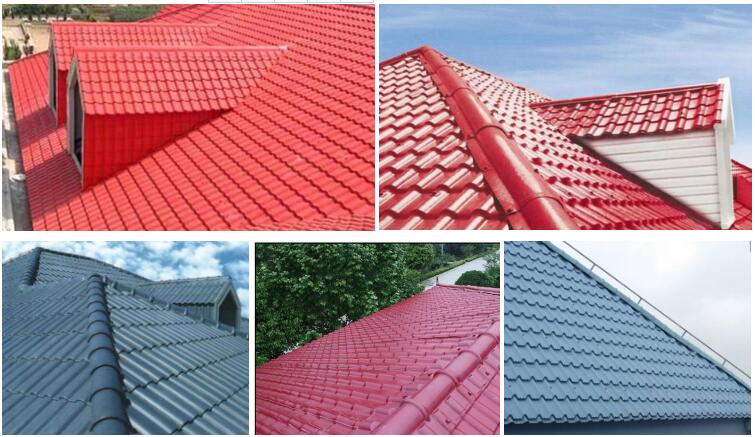

Application

Glazed Steel Tile Making Machinery for Colored Glazed Steel Roofing Sheet is used to make the color glazed tiles in batch by the Steel Tile Making Machinery. the finished product of Glazed Steel Tile Making Machinery For Colored Glazed Steel Roofing Sheet is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste. This machine working speed is around 4-5 meter per minutes.
