24 Gauge Aluminum Galvalume Snap Lock Standing Seam Roof Roll Forming Machine

Ask Lasest Price
Brand Name :	Sussman
Model Number :	RF-ST
Certification :	CE, SGS, ISO
Price :	negotiable
Supply Ability :	10 sets/month
Delivery Time :	60 days after deposit

Add to Cart

Product Details
Company Profile

24 Gauge Aluminum Galvalume Snap Lock Standing Seam Roof Roll Forming Machine

24 Gauge Aluminum Galvalume Snap Lock Standing Seam Roof Roll Forming Machine

Snap Lock standing seam panel is one of the most versatile metal roofing panels made, which using commercial metal building or on a residential metal roofing application, its structural performance is unsurpassed.

1. Technical Parameter

Number	Items	UnitType	RF-ST
1	Steel Thickness	mm	0.7-1.2mm for Color coated steel 0.5-0.8mm for aluminum sheet
2	Forming Speed	m/min	8-12
3	Roller stands	stations	16 stations
4	Roller Material	mm	45# steel, coated with chrome
5	Shaft material and diameter	mm	Ф70mm, 45# steel, fire treated
6	Main Motor Power	Kw	7.5KW motor
7	Hydraulic cutting Power	Kw	4KW
8	Hydraulic pressure	Mpa	12
9	Power Supply		220V, 60HZ,3 phase
10	Tolerance	mm	1.5
11	Material of cutting		Cr12Mov HRC60-62
12	Machine weight	T	about 6 tons

2. Machine List

5 tons manual de-coiler	1 set
Hydraulic cutting	1 set
Main roll forming machine	1 set
PLC Control box	1 unit
Hydraulic station	1 unit
4 meters Passive Out table	2 units
Safety cover	1 unit

3. Snap lock standing seam Profile Drawing

Snap-lock profiles consist of panels that have been carefully rollformed with specifically shaped edges, a male and female leg, that snap together and do not require hand or mechanical seaming during installation. Snap-lock profiles are attached to the roof deck using a clip that attaches to the seam and fastens underneath the panel.

5. Packaging & Shipping

Before loading to the container, we will check the machine first

Second, make some protection on the machine, Such as, we will mpaint the coil on the roller and shaft, in case the roller and shast got corrosion and rusty during long time delivery

Third, we will make the plastic package on the easy damage parts, and fix all the parts into container by the steel wire rope, and ensure the machine will not damage when shaking on sea.

At last, we will take photos for customer when loading to container.

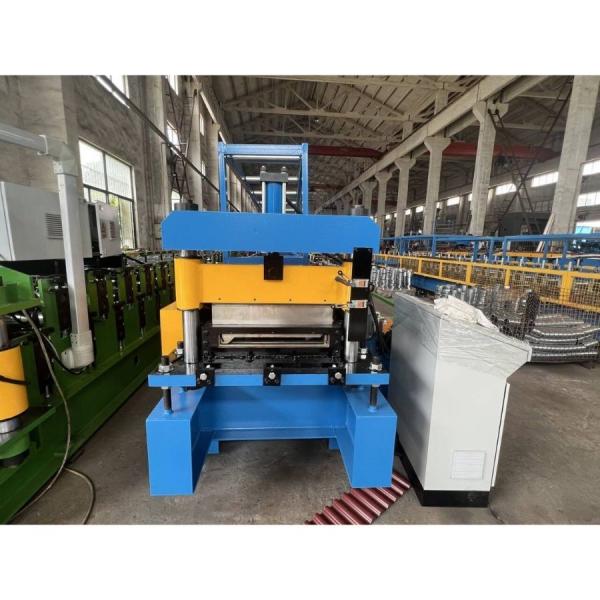

6. Machine photo
