    GI Zincalum Ondulado 18 High Speed Corrugated Wall Roof Panel Making Roll Forming Machine

    Ask Lasest Price
    Brand Name : Sussman
    Model Number : SM-RP
    Certification : CE ISO SGS
    Price : negotiable
    Payment Terms : T/T L/C
    Supply Ability : 10 sets per months
    Delivery Time : 65 days after deposit
    • Product Details
    • Company Profile

    GI Zincalum Ondulado 18 High Speed Corrugated Wall Roof Panel Making Roll Forming Machine

    GI Zincalum Ondulado 18 High Speed Corrugated Wall Roof Panel Making Roll Forming Machine


    The normal machinable thickness range of our roof panel roll forming machine is 0.3mm-0.8mm, working raw material is Aluminum, PPGI, Galvanized steel, Galvalume steel etc. We design the machine according to your drawing, specially the pitch and height of each wave. This machine is used to form the pre-painted sheet/GI material to various roofing of the projects such as sports center, exhibition center, subway project, airport and stadium etc.


    Nu-Wave Corrugated is an economical, structural through-fastened roof or wall panel suitable for general usage., hot sale in Amercia.

    Panel is ideal for roof ,vertical or horizontal wall applications, soffit or interior accent panels.
    32 inches coverage roof panel, 34 2/3 inches coverage wall panel.

    Technical parameter:

    Rolling Speed
    0-30m/min
    Feeding width
    1250mm
    Thickness
    0.3-0.7mm
    Control System
    PLC
    Roller Stations
    about 20 stations
    Roller Material
    45# forge steel, coated with chrome
    Motor Power
    11kw main motor+3KW servo motor
    Hydraulic power
    5.5kw
    Hydraulic Pressure
    12Mpa
    Tolerance
    1.5mm
    Power supplier
    380V, 60HZ,3 phase
    Way Of Drive
    1.2 inch single chain
    Machine weight
    about 12 tons

    Machine List


    Machine list5 tons hydraulic de-coiler1 set
    Main roll forming machine1 set
    PLC Control box1 unit
    Hydraulic station1 unit
    Safety cover1 set
    Spare parts1 set

    working flow



    Profile Drawing

    This drawing shows the drawing of ONDULADO-48, is not only popular in Chile, also in Africa, South Africa, the Philippines, Indonesia, Thailand and etc.
    The length after corrugation is 1000mm, the height wave is 14mm or 18mm, we can customized the wave size and total length according to your demand.


    Machine Shows

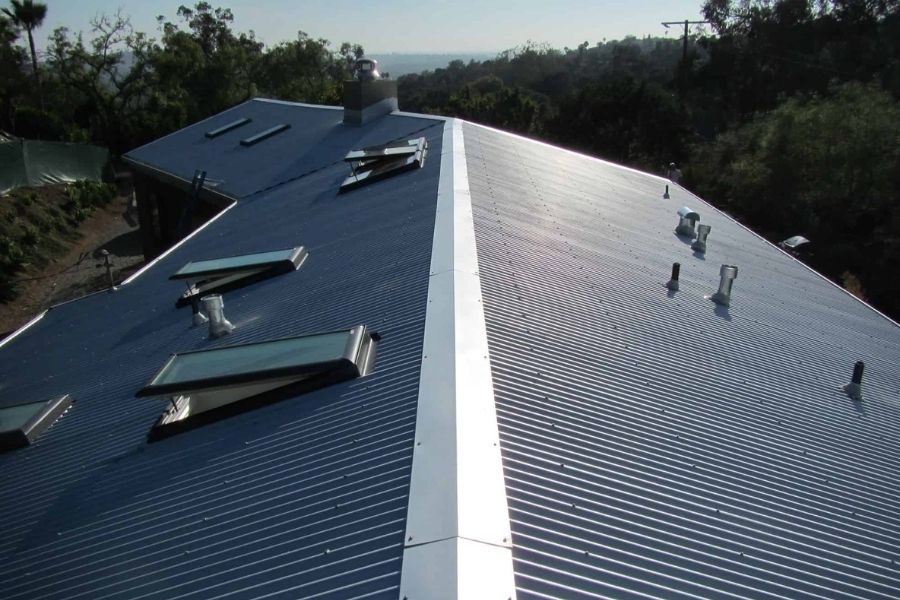

    Application:
