Metal Shutter Door Slat Shutter Door Roll Forming Machine With 0.7-1.2mm Thickness

    Buy cheap Metal Shutter Door Slat Shutter Door Roll Forming Machine With 0.7-1.2mm Thickness from wholesalers

    Buy cheap Metal Shutter Door Slat Shutter Door Roll Forming Machine With 0.7-1.2mm Thickness from wholesalers
    • Buy cheap Metal Shutter Door Slat Shutter Door Roll Forming Machine With 0.7-1.2mm Thickness from wholesalers
    • Buy cheap Metal Shutter Door Slat Shutter Door Roll Forming Machine With 0.7-1.2mm Thickness from wholesalers
    • Buy cheap Metal Shutter Door Slat Shutter Door Roll Forming Machine With 0.7-1.2mm Thickness from wholesalers
    • Buy cheap Metal Shutter Door Slat Shutter Door Roll Forming Machine With 0.7-1.2mm Thickness from wholesalers

    Metal Shutter Door Slat Shutter Door Roll Forming Machine With 0.7-1.2mm Thickness

    Ask Lasest Price
    Brand Name : Sussman
    Model Number : SM-SD-045
    Certification : CE, SGS, ISO
    Price : negociate
    Supply Ability : 5 sets per month
    Delivery Time : 75 days
    • Product Details
    • Company Profile

    Metal Shutter Door Slat Shutter Door Roll Forming Machine With 0.7-1.2mm Thickness

    Metal Shutter Door Slat Shutter Door Roll Forming Machine With 0.7-1.2mm Thickness


    Rolling shutter door is produced by rolling shutter making machine and are used for parking door and home doors ans shops front show and garages, etc. They are very strong and sage to the property. Therefore, the door-rolling shutter provides adequate protection and safety against thefts and fire. These doors are stronger if use enough steel thickness.


    In fact, we can supply different kinds of roll forming machines for different shutter doors. If you have your door design, show us your design drawing. A good suggestion can be given out by our enginneer. If you have any idea about your new project, some professional ideas can be gotten from us.


    1.This machine is made up of roll forming machine,manual decoiler,cutting machine,PLC computer control and hydraulic system,out put tables.
    2.The machine is stable,no noise,no shake.

    3.It is one unit, the control box and the hydraulic station for the cutting are all put under the machine frame to save space.
    4.The touch screen is hang over, it is not under the floor.

    5.When you get the machine,it is no need to assemble and connect the complicate cable of the machine, you only need to connect one main cable, then the machine is working.


    Metal shutter doors offer numerous advantages, making them a popular choice for a wide range of applications in commercial, industrial, and residential settings. Here are some key advantages:

    1. Enhanced Security
    - Strong Barrier: Metal shutter doors provide a robust physical barrier that is difficult to breach, deterring potential burglars and vandals.
    - Locking Mechanisms: They often come with advanced locking mechanisms, enhancing security for properties.

    2. Durability and Longevity
    - Material Strength: Made from galvanized steel or aluminum, these doors are highly resistant to impact, wear, and tear.
    - Corrosion Resistance: The materials used are typically treated to resist rust and corrosion, ensuring long-term durability even in harsh environments.

    3. Space Efficiency
    - Compact Design: When opened, the door rolls up into a compact coil above the entrance, saving valuable space compared to traditional swinging doors.
    - Versatility: Suitable for installations where space is limited or where a traditional door might be impractical.

    4. Weather Protection
    - Weather Sealing: Offers excellent protection against rain, wind, and other adverse weather conditions.
    - Insulated Options: Some metal shutters come with insulation, providing thermal efficiency by keeping interiors warmer in winter and cooler in summer.

    5. Fire Resistance
    - Fire-Rated Models: Some metal shutters are designed to withstand high temperatures and prevent the spread of fire, enhancing safety in case of emergencies.

    6. Ease of Operation
    - Manual and Motorized Options: Available in both manually operated and motorized versions, providing flexibility to suit different needs and budgets.
    - Automation: Motorized shutters can be integrated with remote controls, sensors, and smart home systems for added convenience.

    7. Noise Reduction
    - Sound Insulation: Insulated metal shutters can reduce external noise, creating a quieter interior environment, which is particularly beneficial for residential and office spaces.

    8. Aesthetic Appeal
    - Customizable Designs: Available in various colors, finishes, and designs, metal shutter doors can be customized to match the aesthetic requirements of different properties.
    - Modern Look: Adds a sleek, modern look to buildings, enhancing their overall appearance.

    9. Low Maintenance
    - Easy to Clean: Metal surfaces are easy to clean and maintain, requiring only occasional wiping and lubrication of moving parts.
    - Minimal Repairs: Due to their durability, metal shutters generally require fewer repairs compared to other types of doors.

    10. Versatility
    - Wide Range of Applications: Suitable for commercial storefronts, industrial warehouses, residential garages, and more.
    - Various Configurations: Can be designed with perforations for ventilation, vision panels for visibility, and solid panels for maximum security.

    11. Energy Efficiency
    - Thermal Insulation: Insulated shutters help in reducing energy costs by maintaining indoor temperatures, thus lowering heating and cooling expenses.

    12. Improved Privacy
    - Complete Coverage: When closed, metal shutter doors provide complete coverage, ensuring privacy for occupants and protecting against prying eyes.

    Conclusion

    Metal shutter doors are a highly effective solution for securing various types of properties. Their numerous advantages, including enhanced security, durability, space efficiency, and ease of operation, make them an ideal choice for commercial, industrial, and residential applications. Whether you need protection from intruders, weather elements, or fire, metal shutter doors provide a reliable and versatile option that can be customized to meet specific needs and preferences.

    The Technique Data

    Material of coil

    Material Thickness

    1.5-2mm galvanized

    Un Coiler

    3 tons manual

    Forming system

    Rolling Speed

    About 8-12 m/min

    Roller Stations

    About 16-18 stations

    Roller Material

    Gcr15# Steel with quenching 60mm shaft

    Maim Motor Power

    7.5 kw

    Hydraulic cutting Power

    4 kw

    Cutting
    system

    Material Of Cutting

    CR12Mov with quench treatment

    Hardness

    HRC58-62

    Tolerance

    +-1.5mm

    Electrical control system

    Electric Source

    380V, 50HZ,3 phase

    Control System

    PLC with touch screen

    Weight

    About 4 tons

    Way Of Drive

    1 inch single chain

    Size of machine

    About Length 8500mm* Width 600mm* Height 1000mm


    Working flow:


    Decoiler—→Level device—→Main roll forming machine—→Hydraulic punching—hydraulic cutting& Punching→ Run out table

    Machine List
    Name
    Quantity (set)
    De-coiler
    1set
    Hydraulic cutting device
    1set

    Main roll forming machine with lubrication
    1set
    Hydraulic cutting device
    1set
    Hydraulic punching for Punching Waist Hole& Riveted(remachado) System
    5 sets
    Run out table
    2 sets
    Control box
    1set


    Profile drawing

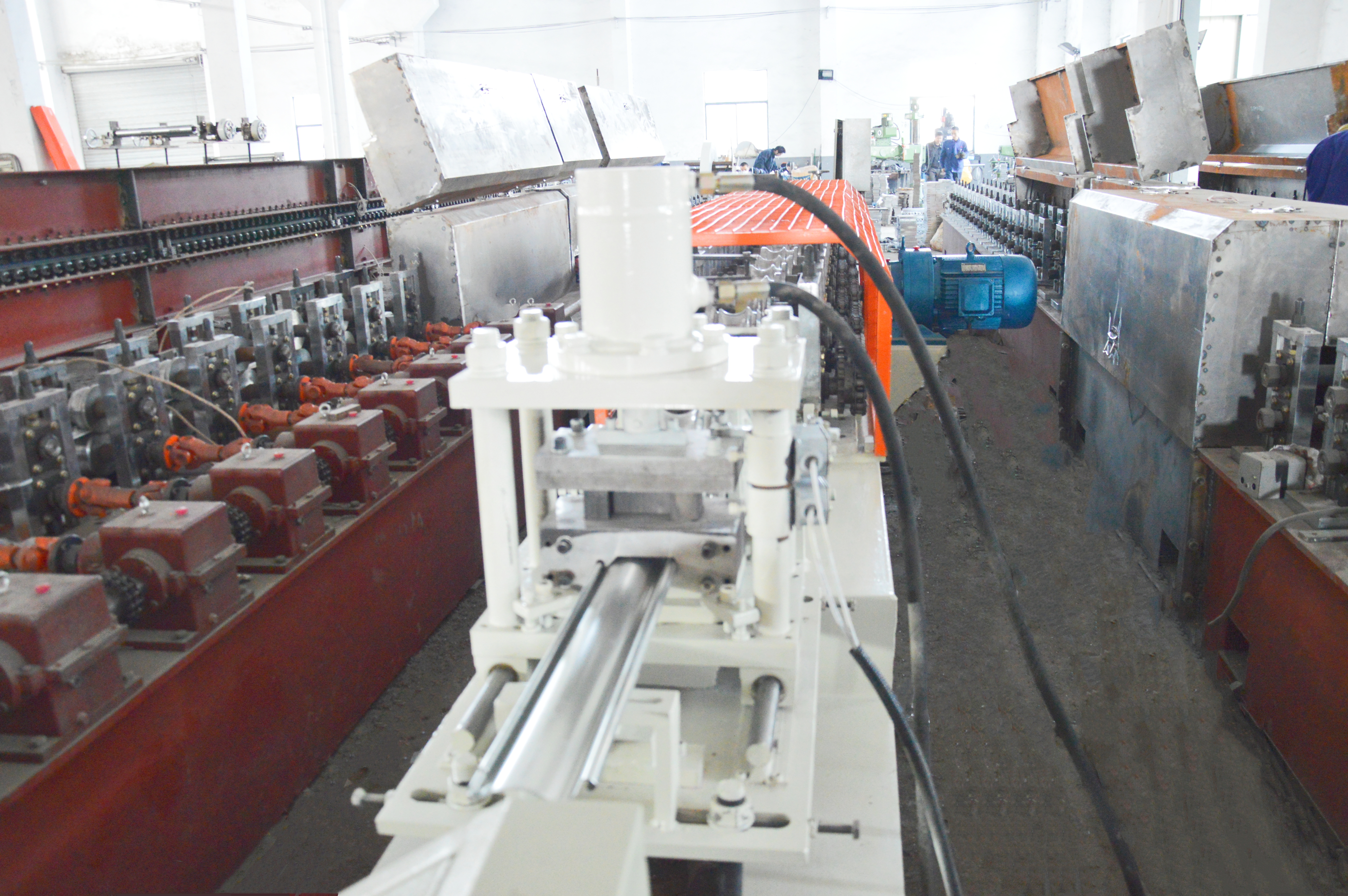

    Machine Picture Shows
