C Purlin Machine Description:
Features of C Purlin Roll Forming Machine
1.The roll forming machine is to make C shaped purlin.
2.Machine adopt cast iron structure, which will increase the
strength of the machine.
3.The processing of Punching & Cutting has different type for
choosing: Post-Punching & Post-Cutting, Pre-Punching & Post
Cutting, Pre-Punching & Pre-Cutting.

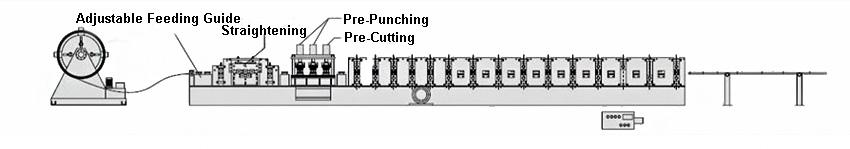

Process Flow of C Purlin Roll Forming Machine
Uncoiler --- Feeding --- Straightening --- Pre-punching ---
Pre-cutting --- Roll Forming --- Exit Rack
Uncoiler --- Feeding --- Straightening --- Roll Forming --- Post
Punching --- Post Cutting --- Exit Rack
Technical Parameters:
| Parameter | Description |
|---|
| Material thickness | 2.0-3.0mm |
|---|
| Width | 100-300mm adjustable automatically |
|---|
| Roller Material | 45# Steel |
| Control System | PLC Control System |
| Weight | About 8T |
| Cutting Type | Hydraulic Cutting |
| Forming Speed | 8-12m/min |
| Color | Customized |
| Length Measurement | Encoder Measurement |
| Material | Galvanized Steel |
| Total Power | About 18.5KW |
| Machine Type | CZ Purlin Making Machine, CZ Purlin Rolling Machine, Cee Zee Purlin
Machine |
Machine Configurations of C Purlin Roll Forming Machine
| 1. Hydraulic Uncoiler | 2. Feeding Device |
| 3. Straightening | 4. Roll Forming Machine |
| 5. Hydraulic Punching | 6. HydraulicCutting |
| 7. PLC Control System | 8. Exit Rac |
| Model | C Section Size (mm) | Hole Distance | Remark |
| H | B | B | C | t | h |
| C100 | 100 | 40 | 40 | 15 | 2.0.3.0 | No Punching | We Can Design the Machine According to Customer's Requests (with
Middle Hole Punching). |
| C120 | 120 | 50 | 50 | 20 | 2.0-3.0 | 40 |
| C140 | 140 | 50 | 50 | 20 | 2.0-3.0 | Adjustable Hole Distance |
| C160 | 160 | 60 | 60 | 20 | 2.0-3.0 |
| C180 | 180 | 60 | 60 | 20 | 2.0-3.0 |
| C200 | 200 | 60 | 60 | 20 | 2.0-3.0 |
| C220 | 220 | 70 | 70 | 20 | 2.0-3.0 |
| C250 | 250 | 70 | 70 | 20 | 2.0-3.0 |
| C300 | 300 | 80 | 80 | 20 | 2.0-3.0 |
Applications:
Sussman Machinery CZ Purlin Processing Machine is a great choice
for many construction projects.
The finished products are widely used as the supporter of roof and
wall in large-scale and mid-scale construction, such as factory,
industrial buildings, balcony, and garages, warehouse, garage,
exhibition center, cinema, theatre, garden and so on.
Support and Services:
Technical Support and Service for C Purlin Roll Forming Machine We offer comprehensive technical support and service to our
customers for C Purlin Roll Forming Machine. Our team of
experienced engineers and technicians ensure that you receive the
best possible service for your C Purlin Roll Forming Machine. Our
technical support and service includes:
- Installation and setup of the C Purlin Roll Forming Machine
- Periodic maintenance and service
- Troubleshooting of the C Purlin Roll Forming Machine
- Training of your personnel
- Advice on the best use of the C Purlin Roll Forming Machine for
your production
We are committed to providing you with the highest quality service
and support for your CZ Purlin Roll Forming Machine. If you have
any questions or concerns, please do not hesitate to contact us.
Machine photo
