    22-32 Gauge Ppgi Gi Zinc Sheet Wavy Corrugated Roof Panel Roll Forming Machine

    Ask Lasest Price
    Brand Name : Sussman
    Model Number : SM-RP
    Certification : CE ISO SGS
    Price : negotiable
    Payment Terms : T/T L/C
    Supply Ability : 10 sets per months
    Delivery Time : 65 days after deposit
    • Product Details
    • Company Profile

    22-32 Gauge Ppgi Gi Zinc Sheet Wavy Corrugated Roof Panel Roll Forming Machine

    22-32 Gauge PPGI GI Zinc Sheet Wavy Corrugated Roof Panel Roll Forming Machine


    The normal machinable thickness range of our roof panel roll forming machine is 0.3mm-0.8mm, working raw material is Aluminum, PPGI, Galvanized steel, Galvalume steel etc. We design the machine according to your drawing, specially the pitch and height of each wave. This machine is used to form the pre-painted sheet/GI material to various roofing of the projects such as sports center, exhibition center, subway project, airport and stadium etc.

    22-32 Gauge Ppgi Gi Zinc Sheet Wavy Corrugated Roof Panel Roll Forming Machine

    22-32 Gauge Ppgi Gi Zinc Sheet Wavy Corrugated Roof Panel Roll Forming Machine

    Technical parameter:

    Rolling Speed: 0-10m/min

    Feeding width: 1000mm

    Steel sheet Thickness: 0.12-0.3mm galvanized sheet

    Control System: PLC Siemens

    Roller Stations: about 22-24 stations

    Roller Material : 45# forge steel, coated with chrome

    Shaft Material and DIA: ¢75mm,material is 45# forge steel, Chrome with quenching

    Motor Power: 7.5kw main motor

    Hydraulic power: 3kw

    Hydraulic Pressure: 12Mpa

    Tolerance: +1.5mm

    Power supplier: According to Customer’s Requirements

    Way Of Drive:1.2 inch single chain


    Machine List


    Machine list5 tons hydraulic de-coiler1 set
    Main roll forming machine1 set
    PLC Control box1 unit
    Hydraulic station1 unit
    Safety cover1 set
    Spare parts1 set

    working flow



    Profile Drawing

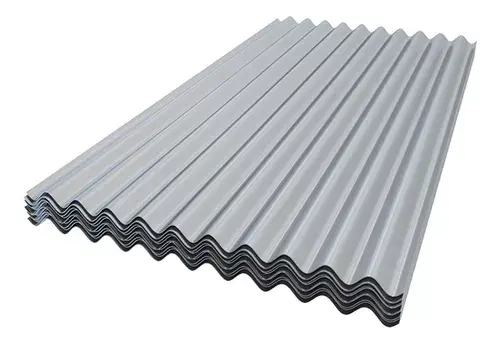

    This drawing shows the drawing of ONDULADO-48, is not only popular in Chile, also in Africa, South Africa, the Philippines, Indonesia, Thailand and etc.
    The length after corrugation is 1000mm, the height wave is 14mm or 18mm, we can customized the wave size and total length according to your demand.

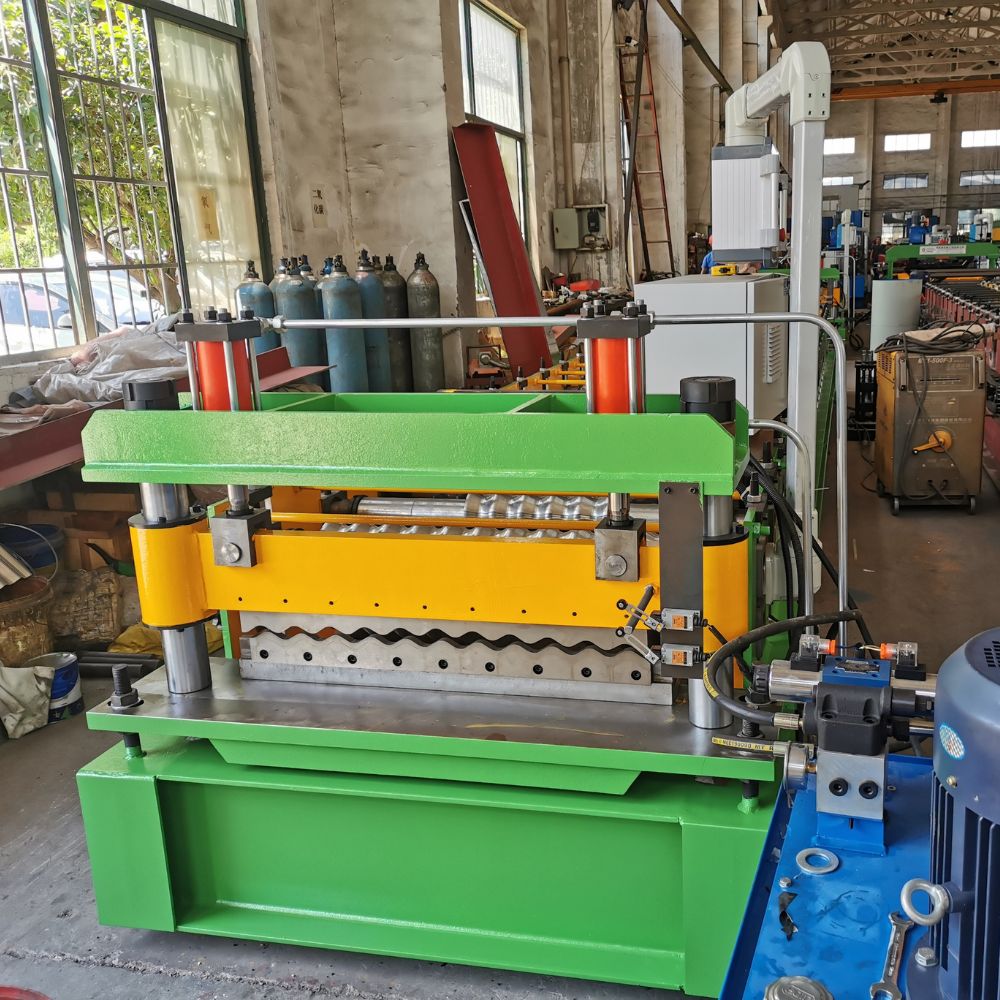

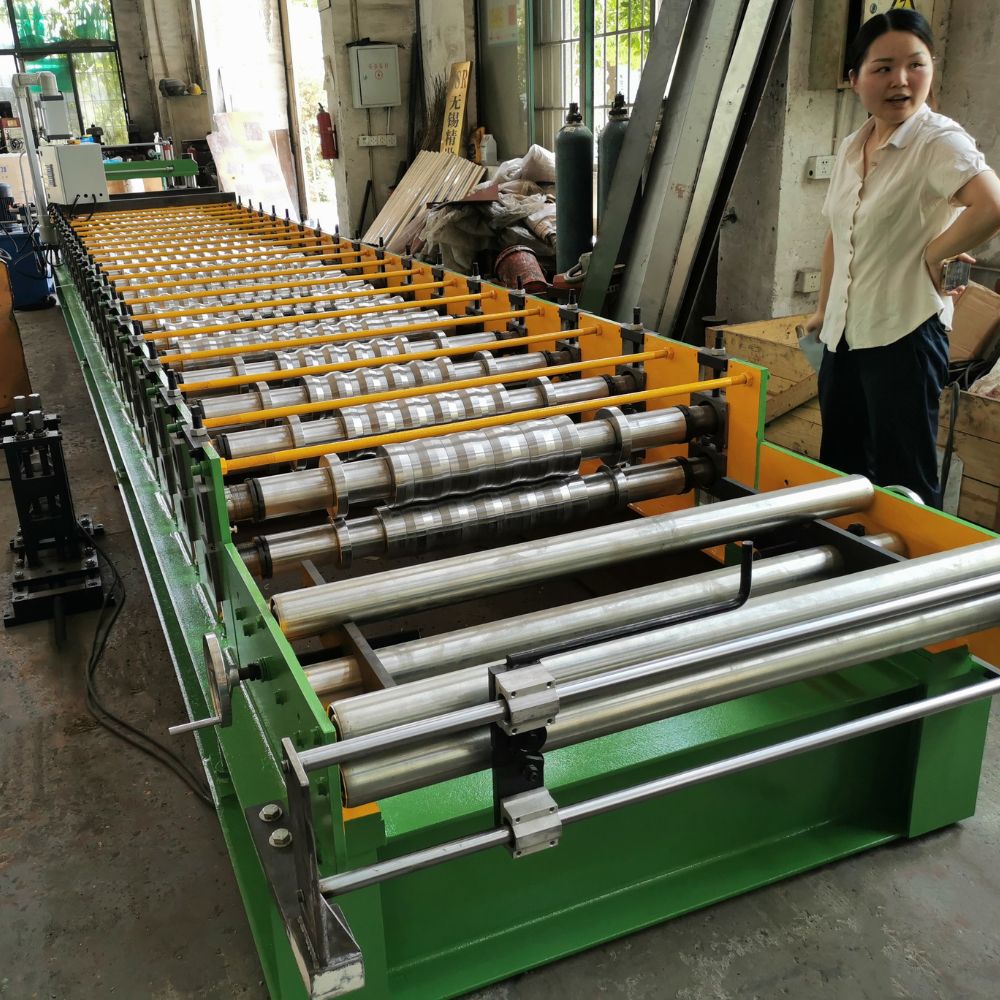

    Machine Shows
