Brand Name : | Sussman |
Model Number : | SM-RP |
Certification : | CE ISO SGS |
Price : | negotiable |
Payment Terms : | T/T L/C |
Supply Ability : | 30 sets per months |
Delivery Time : | 75 days after deposit |
0.3mm-0.8mm Thickness Africa Popular Trapezoidal Covermax Roof Tile
Roll Forming Machine
The covermax panel is a steel panel with a trapezoidal shape,
covered on both sides by a layer of aluminum and zinc (Galvalume or
Aluzinc), which guarantees a roof resistant to environmental
oxidation, waterproof and durable. Its medium wave height allows it
to be applied as a metal roof and wall.
Technical parameter:
Item NO | Description | Offered specification |
1.0 | Roll forming machine | |
1.1 | Rolling speed | 12-15m/min(not include cutting time) |
1.2 | Rolling thickness | 0.3mm-0.8mm |
1.3 | Raw material | Color painted coils, Aluminium, Zinc, Galvanized |
1.4 | Main Motor | 7.5KW |
1.6 | Dimension | About 8000×1600×1200(mm) |
1.7 | Effective width | 1025mm |
1.8 | Feeding Coil width | 1220mm |
1.9 | Roller stations | About 20 stations |
1.10 | Roller material | 45#forge steel, coated with chrome |
1.11 | Shaft diameter | Φ76mm |
1.12 | Transmission | By chain 1.2 inch |
1.13 | Material of chain | 45# forged steel with frequency quenching, 12A |
1.14 | Material of cutting | Cr12Mov with quench HRC58-62° |
1.15 | Tolerance | 10m+-1.5mm |
1.16 | Hydraulic station | 4kw |
Machine List:
No. | Name | Quantity |
1 | 5 ton passive decoiler | 1 set |
2 | Main roll forming machine | 1 set |
3 | Hydrulic station | 1 set |
4 | Control box | 1 set |
5 | Out table | 1 set |
working flow
Profile Drawing

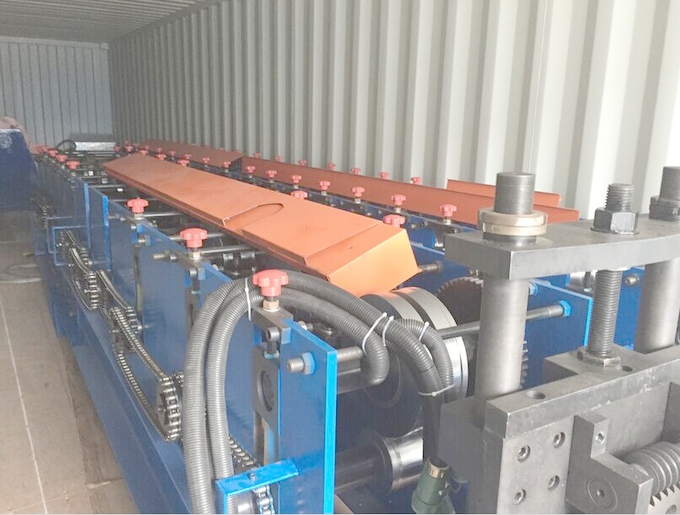

Machine Shows
Loading Pic.
Company Introduction
Sussman Machinery (wuxi) Co., Ltd. is a comprehensive enterprise
integrating production, sales and services. We are mainly engaged
in providing machineries and equipment. Owing to a professional
teamwork, we are experienced in manufacturing, import and export,
customers' design, installation and test, technical solution and
after-sale services. We have shipped out our machines to more than
80 countries, and keep good business relationships with a large
amount of worthy customers, contributing to our great business
records and reputation.
Our service
1. Professional mechanical background sales for better undestanding
customer's need
2. Experienced in China machine industry for supplying
comprehensive machines and equipments
3. Strictly product manufacturing and quality controlling to ensure
every machine we sold is satisfied with our customer
4. Engineers available to service machine overseas, for example
installation, training, etc
5. Lifelong service for spares, ware parts, technical supporting,
etc
Topic
Metal roof sheets are a popular choice for both residential and commercial buildings due to their durability, longevity, and aesthetic appeal. Here are some key points about metal roof sheets:
Types of Metal Roof Sheets
1. Corrugated Metal Sheets:
- Recognizable by their wavy pattern.
- Often used for agricultural buildings and sheds.
2. Standing Seam Metal Roofs:
- Characterized by raised seams running vertically from the roof's
ridge to the eaves.
- Common in modern architectural designs.
3. Metal Shingles:
- Mimic the appearance of traditional roofing materials like slate,
wood, or tile.
- Offer a more classic look while providing the benefits of metal
roofing.
Materials
- Steel:
- Often coated with a layer of zinc (galvanized) or a mix of zinc
and aluminum (Galvalume) to prevent rust.
- Durable and cost-effective.
- Aluminum:
- Lightweight, resistant to rust, and ideal for coastal areas.
- More expensive than steel.
- Copper:
- Offers a distinctive aesthetic and develops a patina over time.
- Very durable but also one of the most expensive options.
- Zinc:
- Long-lasting and self-healing, meaning scratches will mend over
time.
- Like copper, it's quite expensive.
Benefits
- Durability:
- Metal roofs can last 40-70 years, depending on the material.
- Weather Resistance:
- Can withstand high winds, rain, snow, and even fire.
- Energy Efficiency:
- Reflects solar radiant heat, reducing cooling costs.
- Low Maintenance:
- Requires less maintenance compared to traditional roofing
materials.
Considerations
- Initial Cost:
- Higher upfront cost compared to asphalt shingles.
- Noise:
- Can be noisier during rain or hailstorms, although proper
insulation can mitigate this.
- Expansion and Contraction:
- Metal expands and contracts with temperature changes, which can
lead to issues if not properly installed.
Installation
Proper installation is crucial to ensure the longevity and
performance of a metal roof. It is recommended to hire experienced
professionals who understand the specific requirements of metal
roofing systems.
Conclusion
Metal roof sheets offer a robust, long-lasting, and aesthetically
versatile roofing option suitable for a wide range of applications.
Whether for residential homes, commercial buildings, or
agricultural structures, the various types and materials available
can meet diverse needs and preferences.
![]() |
