    Exposed Fastening System 26 Gauge 29 Gauge Coverage Width 24" 5v Crimp Roof Panel Roll Forming Machine

    Ask Lasest Price
    Brand Name : Sussman
    Model Number : RF-ST
    Certification : CE, SGS, ISO
    Price : negotiable
    Supply Ability : 10 sets/month
    Delivery Time : 60 days after deposit
    • Product Details
    • Company Profile

    Exposed Fastening System 26 Gauge 29 Gauge Coverage Width 24" 5v Crimp Roof Panel Roll Forming Machine

    Exposed Fastening System 26 Gauge 29 Gauge 5V Crimp Roof Panel Roll Forming Machine



    1. Zinc roofing machine technical parameter


    Coil Material

    Material thickness

    0.3-0.8mm PPGI Color steel

    Material width

    As profile


    ROLL MACHINE

    Frame Structure

    350H-beam

    Roller Station

    About 16 roller stations

    Roller Shaft

    76mm 45# Steel Solid,Precision

    Shaft Material

    45# Steel Solid,Precision

    Roller Info.

    45# steel harden chromed plated

    Transmission

    Chain 1 inch

    Motor Power

    7.5KW

    Output Speed

    About 10-15m/min


    CUTTING

    Frame Structure

    350mm Carbon Steel

    Cutting Type

    Hydraulic Automatic

    Cut Performance

    No scrap,no deformation

    Cutting Blade

    Cr12Mov,hardness 60-62℃

    HYDRAULIC

    SYSTEM

    Installation

    inside,easy for operation

    Pump Motor

    4KW


    COMPUTER
    SYSTEM

    Electrical Control

    DELTA PLC

    DELAT Inverter

    Length Control

    Rotaty Encoder from Omron


    Length Tolerance

    ±1.5mm

    Touch Screen

    DELTA or Siemens


    2. Roofing Machine List

    5 T passive de-coiler

    1 set

    Guiding Platform

    1 set

    Pre-cutting device

    1 set

    Main roll forming machine

    1 set

    Hydraulic cutting machine

    1 set

    PLC Control box

    1 unit

    Hydraulic station

    1 unit

    Passive Out table

    2 units

    Safety cover

    1 unit



    3. Profile Drawing of roofing machine


    5V Crimp is most common in residential settings but is also suitable for light commercial applications.


    The 5V Crimp roof panel offers an ideal old-time, residential appearance.


    5V Crimp is also an aesthetically-pleasing solution for light commercial applications.


    The 5V Crimp panels require a solid roof deck with a waterproof membrane.


    Double ribs on the panel edges create the classic 5V look and conceal an anti-siphon channel.

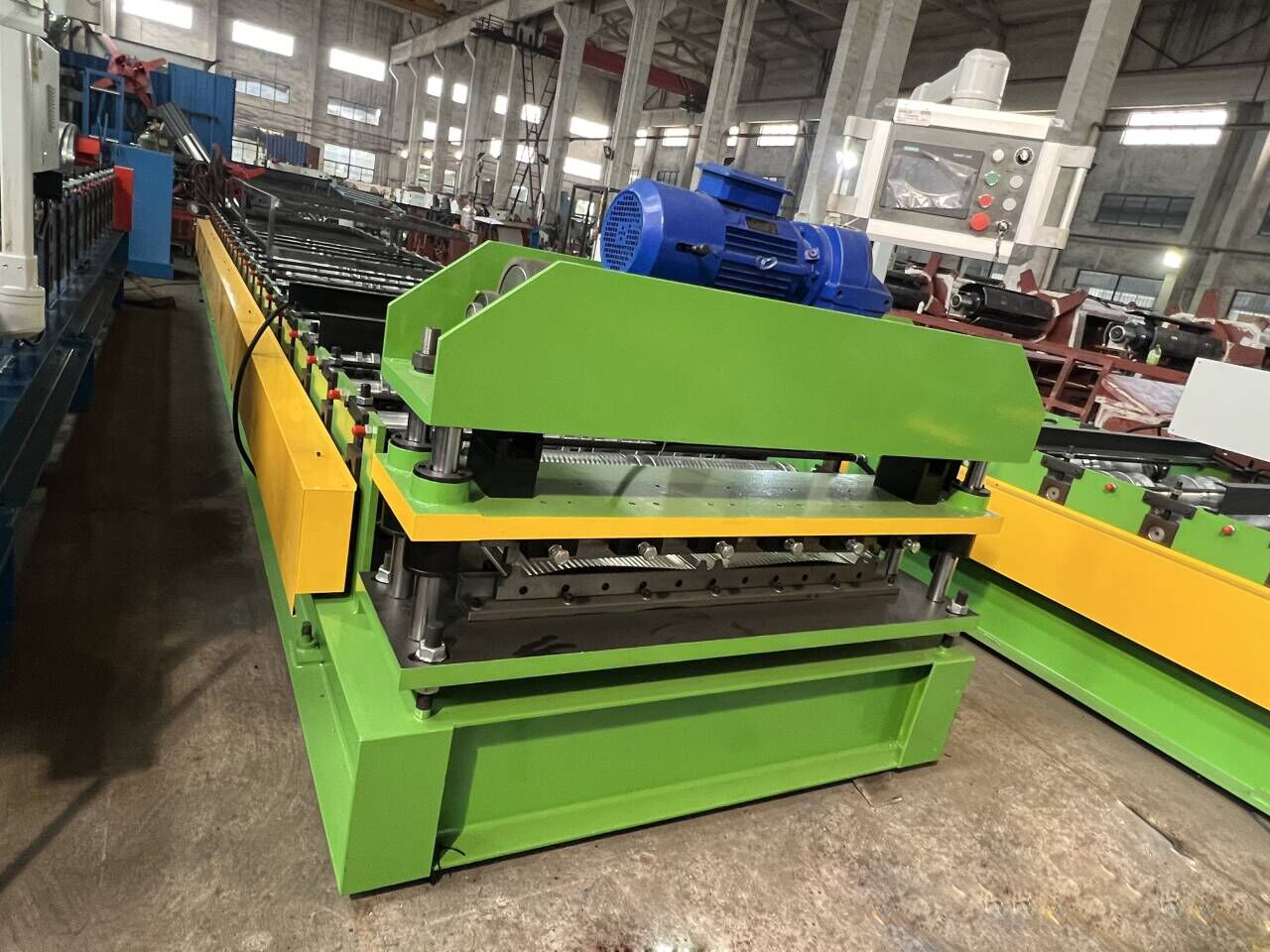

    5. Roofing Machine Photo


    Machine produce the roofing sheet by roll forming. Feed flat sheet into machine, set how long one sheet and how many pieces sheet you need, machine will start to produce the roofing sheet and counting the quantity by itself.
    We provide customized service, customer can provide the roof sheet design he want to produce, we will make the machine according to customer's requirement.
