    Metal Wall Panel & Siding Systems Box Rib Profiles Metal Sliding Panel Roll Forming Machine

    Ask Lasest Price
    Brand Name : Sussman
    Model Number : SM-RP
    Certification : CE ISO SGS
    Price : negotiable
    Payment Terms : T/T L/C
    Supply Ability : 10 sets per months
    Delivery Time : 65 days after deposit
    • Product Details
    • Company Profile

    Metal Wall Panel & Siding Systems Box Rib Profiles Metal Sliding Panel Roll Forming Machine

    Metal Wall Panel & Siding Systems Box Rib Profiles Metal Sliding Panel Roll Forming Machine



    Technical Parameter


    Item NO

    Description


    Offered specification

    1.1Rolling speed10-12m/min
    1.2Rolling thickness0.4-0.8mm
    1.3Raw materialGalvanized steel coils or PPGI
    1.4Main motor7.5kw
    1.5Hydraulic motor4kw
    1.6dimension9000×1000×1000(mm)
    1.7Roller stationsAbout 24 stations
    1.8Roller material45#forge steel, coated with chrome
    1.9Shaft diameterΦ70mm,material is 45# forge steel
    1.10TransmissionBy chain 1 inch
    1.11Material of chain45# forged steel with frequency quenching, 12A
    1.12Material of cuttingCr12Mov with quench HRC58-62°
    1.13Tolerance6m+-0.5mm
    1.14FrameH type steel
    1.15Voltage380v, 50hz, 3phases



    Main Components


    NoNameQuantity
    15 ton manual de-coiler1 set
    2Main roll forming machine1 set
    3Control box1 unit
    4Hydraulic station1 unit
    5Out table2 units
    6Safety cover1 unit



    Glazed tile working flow


    Profile Drawing




    Application

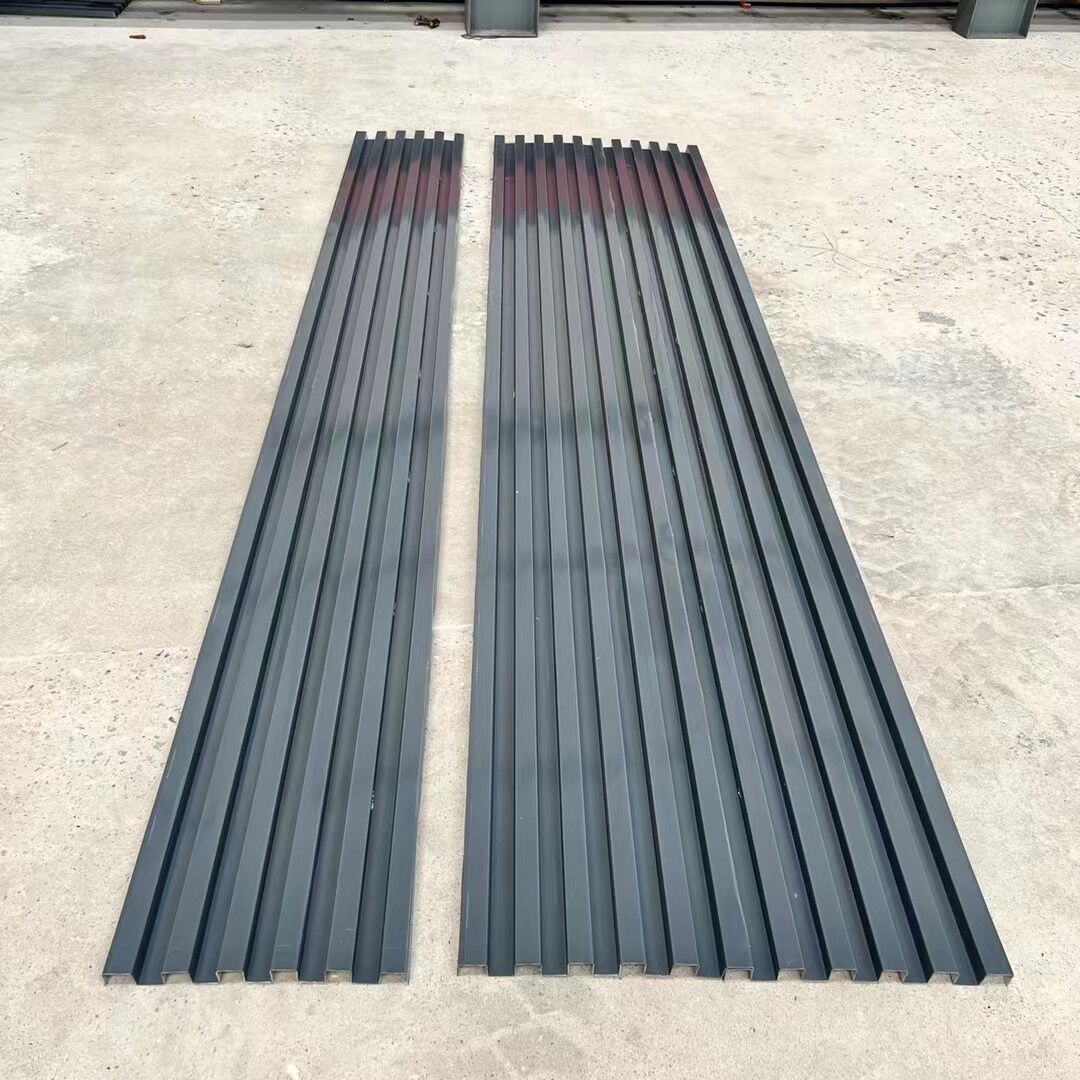

    Metal steel wall cladding sheets is widely used inresidential buildings, modern design buildings, offices, shops, trade buildings, sport halls, exhibition bildings, industrial buildings, public buildings, storehouse halls, .
