1.0-2.0 Thickness G275 Galvanized Steel Vineyard Post Trellis Grape
Stakes Support Roll Forming Machine
Vineyard post, also called vineyard stake, vineyard trellis stake and grape
trellis. It is a type of high strength, long service life and
little maintenance post for supporting grape and other fruit normal
growth in vineyard, orchard, grape manor and agriculture plantation
and farming. The vineyard post is popular in European market and
American market, such as Spain, France, Chile and so on.
Specifications of vineyard post
- Material: Q235 low carbon steel.
- Surface treatment: hot dipped galvanized or PVC coating.
- Post thickness: 1.2 mm, 1.5 mm, 1.8 mm, 2.0 mm or 2.5 mm. 1.5 mm is the most
common used.
- Section size: 50 mm × 30 mm, 54 mm × 30 mm, 50 mm × 40 mm, 60 mm × 40 mm.
- Length: 1.8 m to 2.8 m. commonly is 2.4 m or 2.5 m.
Technical Parameter
Main Components
S.N | Equipment Name | Quantity |
1 | 3T hydraulic De-coiler | 1 set |
2 | Leveling device 200mm | 1 set |
3 | Servo feeding device 200mm | 1 unit |
4 | Press machineJH21-63 | 1 unit |
5 | Main roll forming machine | 1 set |
6 | Cutting holder | 1 set |
7 | Hydraulic station | 1 set |
8 | Control system ( including control box) | 1 set |
9 | Out tables | 2 units |
10 | Spare parts | 1 package |
16 | Cutting dies | 1 set |
17 | Punching die set | 1 set |
Working Flow of Roll Forming Machine
Decoiler----feedingwithguide---Punching----Rollforming----Cutting----Products
collecting
Profile of product

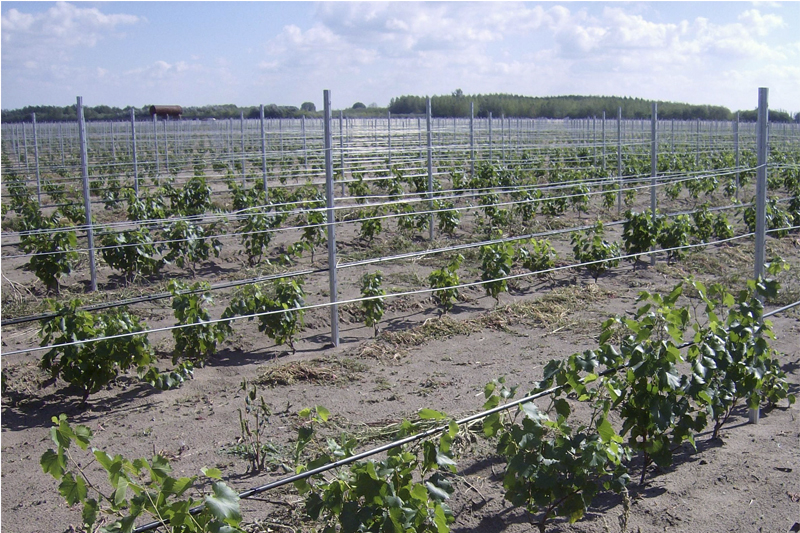

Application:
The vineyard post is mainly used in vineyard, orchard, grape manor,
agriculture plantation and farming. It can supply high
strength for normal growth and good harvest.
Steel vineyard post has far more advantages:
* High strength. Hot rolled steel strip material supply high
strength to withstand high wind and heavy weight of grapes.
* High corrosion and rust resistance. The vineyard post is commonly
made of hot dipped galvanized or PVC coating, which supplies
excellent anti-corrosion performance.
* Easy to install. The installation of vineyard post is very
simple, it need no special tools and few labor compared with wooden
vineyard post.
* Good fastening performance. The wire slot along the post provides
complete control of trellis wires.
* Little maintenance. The vineyard post has smooth and bright
surface, which needs less maintenance during its long service life.
* Long service life. The high tensile and quality material and
anti-corrosion performance of vineyard post make the post a long
service life in good performance.
After-sale Serive
- The seller take responsibility to installation and commissioning
of the equipment and free training. After machine arrive the
destination, by the request of the buyer , the seller will provide
1 technical engineer to guide installation and training , and the
buyer should give the technical person with full cooperated.
- Installation period: about 5 days after the complete preparation
by the buyer such as the foundation and all necessary accessories.
- Training time: 5 days.
- Before departure of the engineers from seller, the buyer should
pay for installation and commissioning fee 100$/day to the point
account of the seller. The two-way ticket,visa, food, hotel , the
translator and insurance are all should provide by buyer with full
responsibility.
-The seller supply technical data (including forming mould drawing,
electrical elements drawing and equipment drawing etc.)
