Australia Style Color Coated Fence Panel Roll Forming Machine
Precast Boundary Fence Panel Making Machine
The fence system includes fence post, fence rail track and fence
panel. It needs 3 sets of roll forming machines.
The fencing post roll forming machine is a complete production line
for the manufacture of metal fencing profiles with notched edge or
slotted holes for supporting on a metal fencing system. The fencing
post and rail are basic elements of a fencing security system,
widely used for house garden, school, factory, etc.
The fencing panel consists of decoiler, notching punching, roll
forming system, and cut to length by hydraulic cutting,etc.
Technical Data
Rolling Speed: About 8-12m/min
Steel sheet Thickness: 0.45 mm to 0.7mm PPGI,Galvanized Steel
Roller Stations: about 18 stations
Roller Material : 45# forge steel, coated with chrome
Shaft Material and DIA: ￠76mm, material is 45# forge steel, Chrome
with quenching
Main Motor Power:7.5kw
Hydraulic Pressure: 12Mpa
Power supplier: 380V, 50HZ,3 phase or customized as customer’s
requirement
Way Of Drive:by chain
Color Of The Machine :blue or customized
The size of the forming machine: About 8500*1500*1500mm
Machine weight: about 8 tons
Control system: PLC control panel with touching screen
Machine List:
| 5 ton manual de-coiler | 1 set |
| Feeding with guide | 1 set |
| Main roll forming machine | 1 set |
| Hydraulic cutting device | 1 set |
| PLC Control box | 1 set |
| Hydraulic station | 1 set |
| 4m out table | 1 set |
| Safety cover | 1 set |

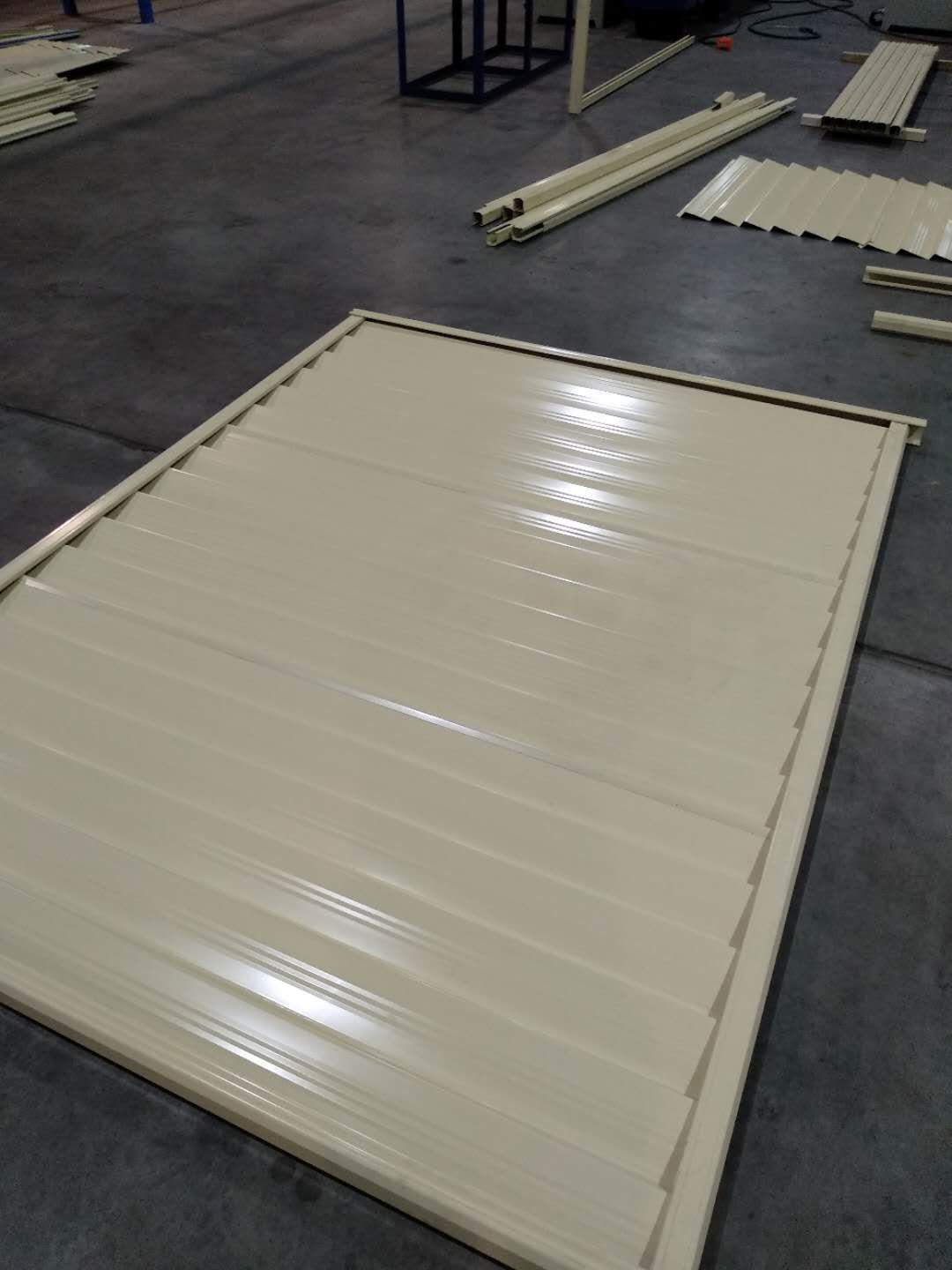

Profile Drawing:

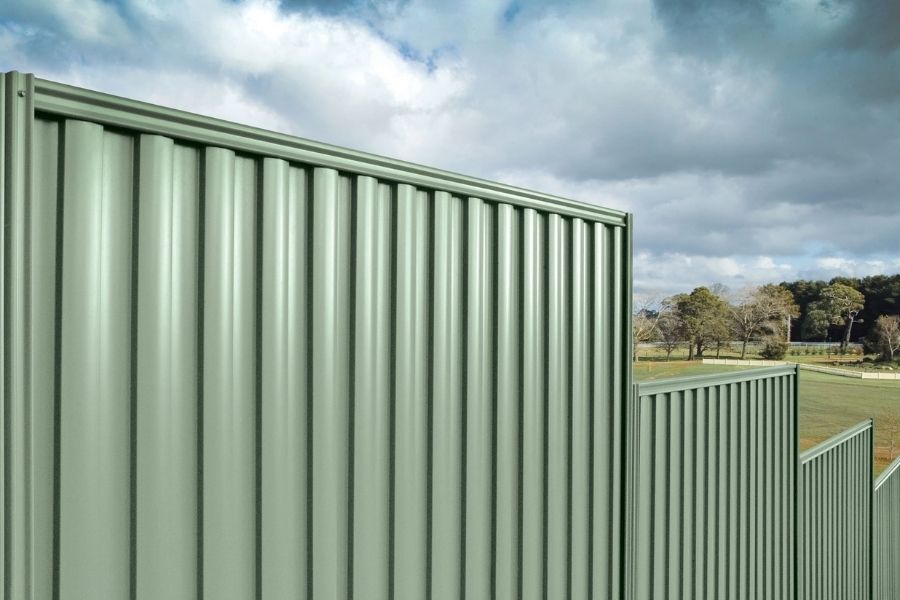

Application:
Spare Parts
| Name | Number |
| Tools | Feeler gauge | 1 |
| Size spanner | 1 |
| Inner hexagon spanner | 1 |
| Clamp | 1 |
| Standard spanner | 1 |
| Shifting spanner | 1 |
| Slotted screwdriver | 1 |
| Other accessories | Chain | 2 pieces |
| Bearing (Haerbin) | 4 pieces |
After-sale Serive
- The seller take responsibility to installation and commissioning
of the equipment and free training. After machine arrive the
destination, by the request of the buyer , the seller will provide
1 technical engineer to guide installation and training , and the
buyer should give the technical person with full cooperated.
- Installation period: about 5 days after the complete preparation
by the buyer such as the foundation and all necessary accessories.
- Training time: 5 days.
- Before departure of the engineers from seller, the buyer should
pay for installation and commissioning fee 100$/day to the point
account of the seller. The two-way ticket,visa, food, hotel , the
translator and insurance are all should provide by buyer with full
responsibility.
-The seller supply technical data (including forming mould drawing,
electrical elements drawing and equipment drawing etc.)
