    24-28 Gauge 5V 5 Ribs Metal Corrugated Roof Panel Roll Forming Machine

    Ask Lasest Price
    Brand Name : Sussman
    Model Number : SM-RP
    Certification : CE ISO SGS
    Price : negotiable
    Payment Terms : T/T L/C
    Supply Ability : 10 sets per months
    Delivery Time : 65 days after deposit
    • Product Details
    • Company Profile

    24-28 Gauge 5V 5 Ribs Metal Corrugated Roof Panel Roll Forming Machine

    24-28 Gauge 5V 5 Ribs Metal Corrugated Roof Panel Roll Forming Machine

    The 5V metal roof sheet is commonly used for roofing applications in residential, commercial, and industrial buildings. Its unique 5V crimp profile provides both aesthetic appeal and functional benefits, such as increased strength and water shedding capabilities. The sheets are often installed in a side-lap configuration to ensure proper water drainage and weatherproofing.


    Overall, the 5V metal roof sheet is a versatile and durable roofing material that offers a combination of visual appeal, structural integrity, and weather resistance for various construction projects.


    Technical parameter:

    NumberItemsUnitTypeRF-DL
    1Steel Thickness24-28ga.PPGI and GI
    2Forming line Speedm/min10-12
    3Roller standsstandAbout 20-22stands
    4Roller Materialmm#Gcr15, coated with hard chrome quenching
    Shaft material and diametermmФ76 45# steel, coated with chrome
    5Main Motor PowerKw7.5
    6Hydraulic cutting PowerKw4
    7Hydraulic pressureMpa12
    8Power Supply220V, 60HZ,3 phase
    9Tolerancemm+/-1.5
    10Material of cuttingCr12mov HRC60-62
    11Control systemPLC with touch screen
    12Machine net weightT8
    13Out sizemm8000*1300*1200


    Machine List


    Machine list5 tons hydraulic de-coiler1 set
    Main roll forming machine1 set
    PLC Control box1 unit
    Hydraulic station1 unit
    Passive output table2 sets
    Safety cover1 set
    Spare parts1 set

    working flow

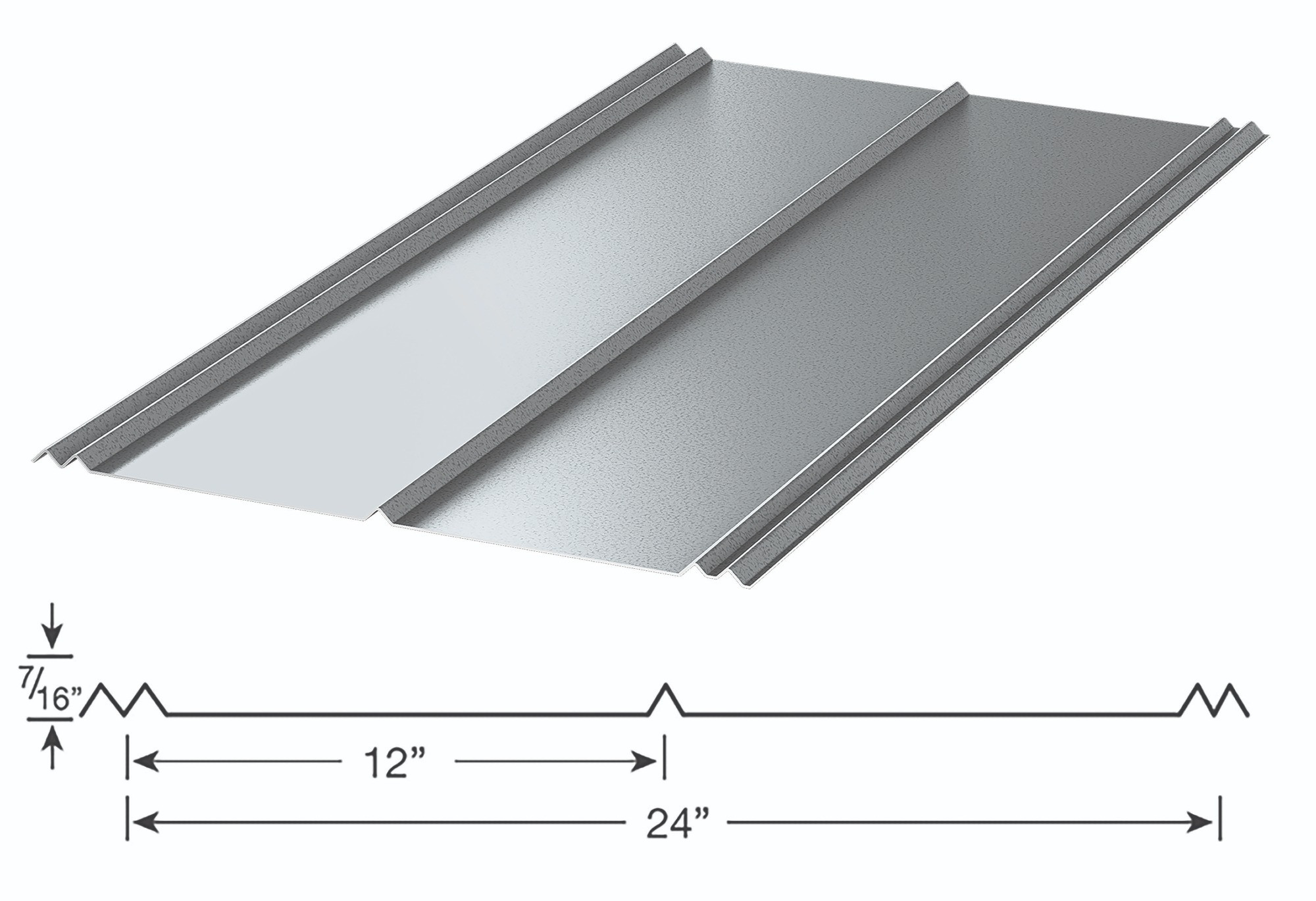

    Profile Drawing

    Machine Shows


    Application:

    Although originally an agricultural panel, 5V crimp is now a popular residential panel.


    Advantage

    1. Durability: 5V metal roof sheets are made from high-quality materials that are resistant to corrosion, rust, and weather damage, making them a long-lasting roofing option.
    2. Strength: The 5V crimp profile provides added strength and rigidity to the metal roof sheet, allowing it to withstand high winds, heavy rain, and other environmental stresses.
    3. Aesthetic appeal: The distinctive 5V crimp profile adds a visually appealing design element to the roof, enhancing the overall look of the building.
    4. Lightweight: Despite their strength and durability, 5V metal roof sheets are relatively lightweight compared to other roofing materials, reducing the overall load on the building structure.
    5. Low maintenance: Metal roof sheets require minimal maintenance and are easy to clean, helping to reduce long-term maintenance costs for the building owner.
    6. Energy efficiency: Metal roof sheets can reflect solar heat, helping to reduce cooling costs in the summer and improve energy efficiency in the building.
    7. Environmental benefits: Metal roof sheets are recyclable and energy-efficient, making them a sustainable roofing option for environmentally conscious building projects.
