30m/min High Speed Zinc Corrugated Roof Panel Roll Forming Machine
Corrugated metal roof sheets are available in various thicknesses,
typically ranging from 0.3mm to 0.8mm. The choice of thickness
depends on factors such as the span of the roof, the expected
loads, and the specific requirements of the building.
Residential roofing: Corrugated metal roof sheets with a thickness
of around 0.4mm to 0.7mm are commonly used for residential roofing
applications. They provide durability, weather resistance, and a
lightweight option for covering homes, garages, sheds, and other
residential structures.
Commercial and industrial roofing: For commercial and industrial
buildings, corrugated metal roof sheets with thicker gauges,
ranging from 0.8mm to 1.5mm, are typically used. These thicker
sheets offer increased strength, durability, and resistance to
heavy loads, making them suitable for warehouses, factories,
agricultural buildings, and commercial structures.
Agricultural applications: Corrugated metal roof sheets with a
thickness of around 0.9mm to 1.2mm are commonly used in
agricultural buildings such as barns, stables, and poultry houses.
They provide protection against weather elements, including rain,
snow, and wind, while also being resistant to pests and fire.
Architectural applications: Corrugated metal roof sheets are also
used in architectural designs to create unique and modern
aesthetics. Thinner gauges, such as 0.4mm to 0.6mm, are often
chosen for these applications to achieve a lightweight and visually
appealing result in structures like restaurants, retail buildings,
and public spaces.
It is important to consult with roofing professionals or
manufacturers to determine the appropriate thickness of corrugated
metal roof sheet for specific applications, as factors such as
local climate, building codes, and structural requirements may
influence the selection.
Technical parameter:
| Item NO |
Description |
Offered specification |
| 1.0 | Roll forming machine | |
| 1.1 | Rolling speed | 0-30m/min(not include cutting time) |
| 1.2 | Rolling thickness | 0.3mm-0.8mm |
| 1.3 | Raw material | Color painted coils, Aluminium, Zinc, Galvanized |
| 1.4 | Main Motor | 22KW |
| 1.6 | Dimension | About 13000×1600×1200(mm) |
| 1.7 | Effective width | 914mm |
| 1.8 | Feeding Coil width | 1092mm |
| 1.9 | Roller stations | About 31 stations
|
| 1.10 | Roller material | 45#forge steel, coated with chrome |
| 1.11 | Shaft diameter | Φ80mm |
| 1.12 | Transmission | By chain 1.2 inch |
| 1.13 | Material of chain | 45# forged steel with frequency quenching, 12A |
| 1.14 | Material of cutting | Cr12Mov with quench HRC58-62° |
| 1.15 | Tolerance | 10m+-1.5mm |
| 1.16 | Hydraulic station | 5.5kw |
Machine List:
| No. | Name | Quantity |
| 1 | 5 ton hydraulic decoiler | 1 set |
| 2 | Main roll forming machine | 1 set |
| 3 | Hydrulic station | 1 set |
| 4 | Servo following cutting | 1 set |
| 5 | Control box | 1 set |
| 6 | Out table | 1 set |
Working flow
Profile Drawing
Machine Shows

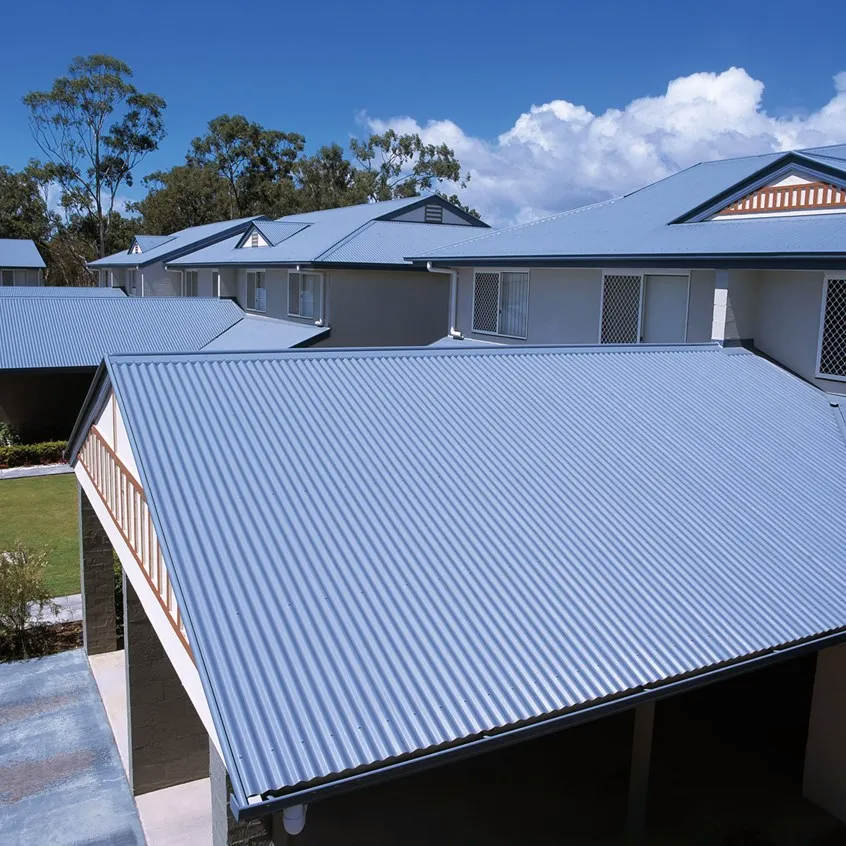

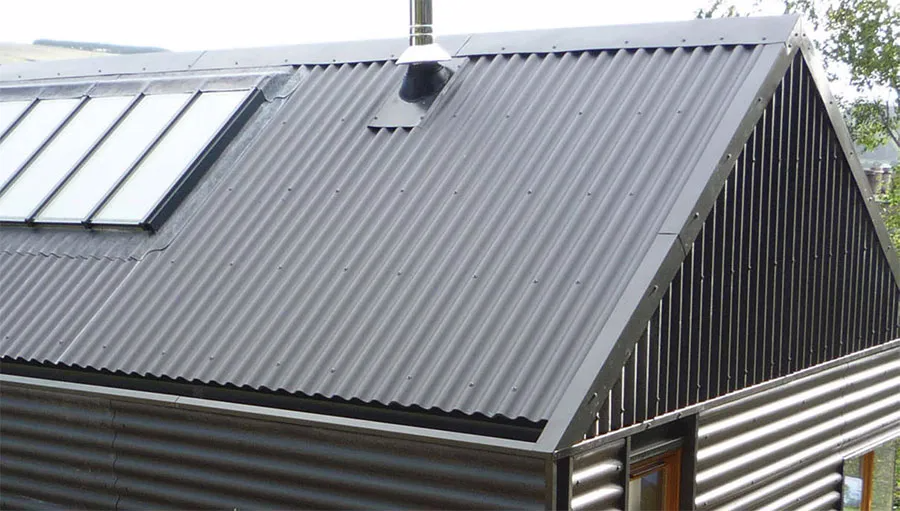

Application
