Galvanized Metal PBR PBU Roofing Flashing Outside Rake Corner Trim Roll Forming Machine

Ask Lasest Price
Brand Name :	Sussman
Model Number :	RF-ST
Certification :	CE, SGS, ISO
Price :	negotiable
Supply Ability :	5 sets/month
Delivery Time :	60 days after deposit

Add to Cart

Product Details
Company Profile

Galvanized Metal PBR PBU Roofing Flashing Outside Rake Corner Trim Roll Forming Machine

Galvanized Metal PBR PBU Roofing Flashing Outside Rake Corner Trim Roll Forming Machine

Rake & Corner Trim can be used on outside corners of the building wall panels or on the roof edge rake where roof panels meet. The trim protects the edges and forms a weather-tight seal which prevents leaks. Provides a professional finished look to the building.

Outside Corner is designed to install at the corners of the wall panel. The profile of the Outside Corner matches the other edge flashings on the building to give it a uniform look. Designed to help protect against the weather and keep bugs and debris away from the framing of the building. • Seals off building outside corners • Protects where end wall meets roof panels • Prevents leaks from occurring • Provides a professional finished look to roof edge and building corners

Technical Data:

	Items	Specifications
Material of coil	Material Thickness	0.4-1.0mm Thickness
Forming system	Rolling Speed	0-10 m/min( without the cutting time)
	Roller Stations	About 16 stations
	Roller Material	45# Steel with quenching 60mm shaft
	Maim Motor Power	5.5 kw
	Hydraulic cutting Power	4 kw
	Bearing	Rubber sealing bearing
Cutting system	Material Of Cutting	CR12 with quench treatment
	Hardness	HRB85-95
	Tolerance	+-1.5mm
	Cutting way	Stop cutting
Electrical control system	Electric Source	220V, 60HZ,3 phase Also can satisfy Customer’s require
	Control System	PLC Delta
	Inverter	Delta
	Weight	About 2.5 tons
	Way Of Drive	1 inch single chain
	Size of machine	Length 3000mm* Width 800mm* Height 500m
	MOTOR	Under the frame of the machine

Machine List:

3 ton passive de-coiler	1 set
Main roll forming machine	1 set
Cutting device	1 set
PLC Control box	1 unit
Hydraulic station	1 unit
Out table	1 unit

Working Flow:

Decoiler—feedingwithguide—Rollforming——Cutting—Products collecting

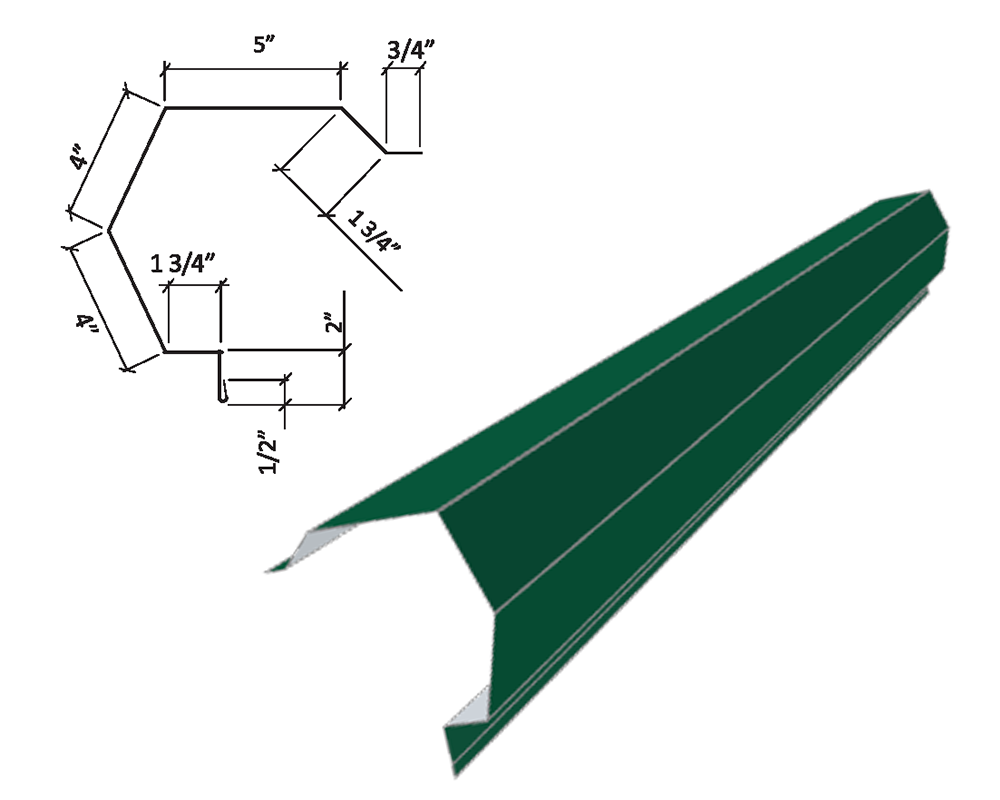

Profile Drawing:

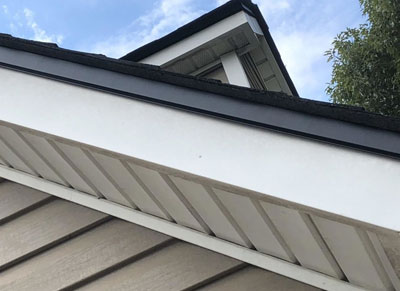

Application:
