    2.5-4.0 mm Thickness Galvanized Steel Container House Corner Post Corner Column Roll Forming Machine

    Ask Lasest Price
    Brand Name : Sussman
    Model Number : SM-PM
    Certification : SGS, ISO9001, CE
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 10 sets per month
    Delivery Time : 60 days after deposit
    • Product Details
    • Company Profile

    2.5-4.0 mm Thickness Galvanized Steel Container House Corner Post Corner Column Roll Forming Machine

    2.5-4.0 mm Thickness Galvanized Steel Container House Corner Post Corner Column Roll Forming Machine


    Main features of container corner post equipment: suitable for wide-width plate forming, beautiful appearance, high degree of automation, simple operation, long service life, production speed of 8-12m/min, high utilization rate of raw materials and high precision of fixed length.


    The roll forming system of the container corner column equipment is composed of a frame, a transmission component and a cold-formed roller set. It is divided into precision wheel rotation molding, which has good forming effect, reduces the friction between the wheel and the raw material, and is convenient and quick to debugging.


    No.

    Type

    Specification


    1


    Raw Material

    Type

    Galvanized steel

    Feeding width

    According to finalprofile

    Thickness

    2.0-3.0mm


    2


    Main Body

    Forming roller station

    22 Stations

    Diameter of shaft

    80mm

    Shaft material

    High grade Gcr15 steel

    Roller material

    high grade 45# steel , hard treatment and polishing ( plated chrome on surface )

    Main body frame

    Whole set of square pipe

    Frame thickenss

    14 mm

    Working speed

    8-12 m/min

    Size (L*W*H)

    About 12000*850*1310mm

    Weight

    About 5 tons


    3


    Power

    Motor power

    11 kw

    Hydraulic power

    3 kw

    Voltage

    380V 50Hz 3phases or Customerization

    Drving Way

    By chain


    4


    PLC Control System

    Language

    English and Chinese

    Brand Of PLC

    Delta brand ( Touch Screen )

    Operation

    Manual and Automatic ( Two Type )


    5


    Cutting Device

    Cutting Type

    mould


    Machine inclued parts
    Machine nameQuantity
    5T manual uncoiler1 set
    Main roll forming1 set
    Hydraulic punching device1 set
    Hydraulic stop cutting system1 set
    4 meters out tables1 ste
    PLC control box system1 set
    Tool box1 package
    Safety cover

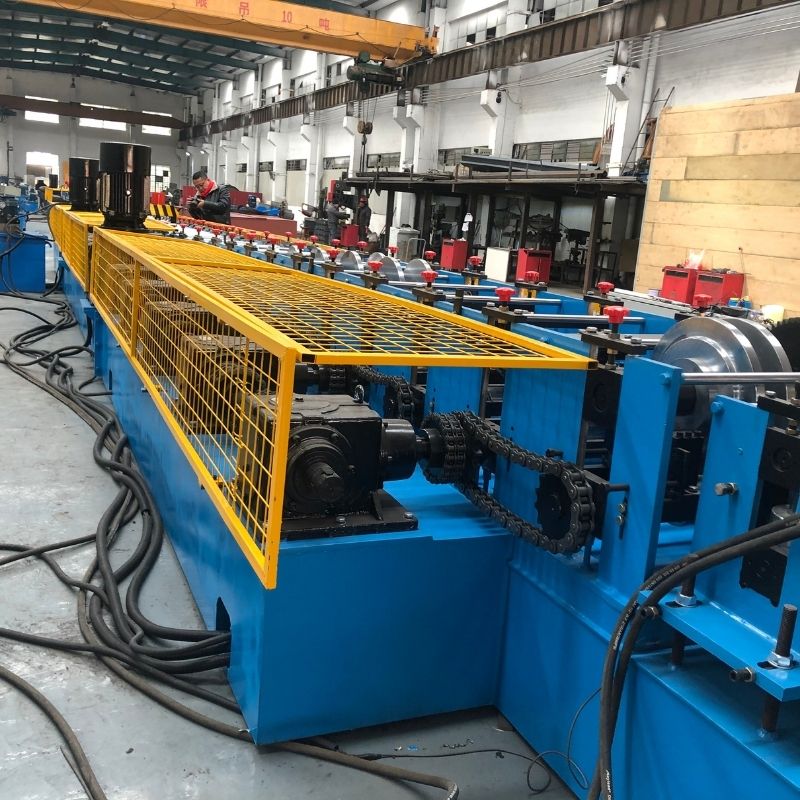

    Sample Picture

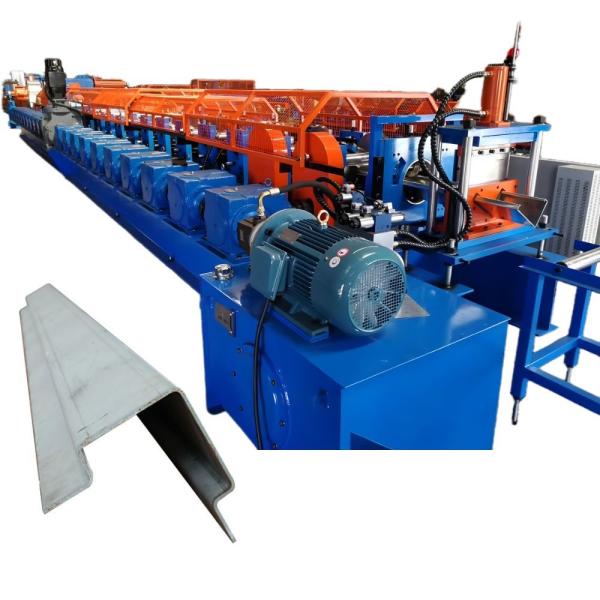

    Container House Machine


    Cold roll forming is a method of shaping hard metals, such as steels and stainless steels. Very precise, complex cross-sections can be created, and long lengths of these sections can be consistently reproduced.


    1. The unique rollforming machinery designs have varies widths and heights product that could be simply production by computer control, to input the parameters instead of any tools change over. The rollforming line is available to set up groups of pattern punching units to deal with pattern holes in line automatically.


    2. The type of rollforming machinery is designed to roll form both edges of sheet panel, main machine with one side fixed and one side adjustable to suit for various widths of sheet panel. Extensively use in the productions of office furniture, steel shelving system, cold storage panels and many industries applications.
