Galvanzied Steel 1.0-1.5mm Upright Rack Cross Support Hat Profile Center Shelf Reinforce Roll Forming Machine

Ask Lasest Price
Brand Name :	Sussman
Model Number :	SM-WA
Certification :	SGS.CE.ISO
Price :	USD20800-USD25800 Per set
Payment Terms :	L/C, T/T
Supply Ability :	5 sets per month
Delivery Time :	60days

Add to Cart

Product Details
Company Profile

Galvanzied Steel 1.0-1.5mm Upright Rack Cross Support Hat Profile Center Shelf Reinforce Roll Forming Machine

Galvanzied Steel 1.0-1.5mm Upright Rack Cross Support Hat Profile Center Shelf Reinforce Roll Forming Machine

Machine Technical Parameter

	Items	Specifications
Material of coil	Material Thickness	0.5-1.0 mm
De-coiler	Weight	3 ton manual
Forming system	Rolling Speed	up to 15m/min
	Roller Stations	About 13 stations forming
	Roller Material	Gcr15 Steel with quenching
	Shaft Material	45# Steel
	Maim Motor Power	7.5 kw
	Hydraulic cutting Power	4 kw
Cutting system	Material Of Cutting	CR12 with quench treatment
	Hardness	HRC58-62
	Tolerance	+-1.5mm
	Cutting blade	1 set of cutting blade
Electrical control system	Electric Source	380V, 50HZ
Electrical control system	Control System	PLC with touch screen Japanese Panasonic and Yaskawa Brand
	Weight	About 3.5 tons
	Way Of Drive	1 inch single chain
	Size of machine	Length 3100mm* Width 500mm* Height 700m

Main Components

Main Components
3 ton passive de-coiler	1 set
Feeding with guide	1 set
Main roll forming machine	1 set
PLC control system	1 unit
Hydraulic station	1 unit

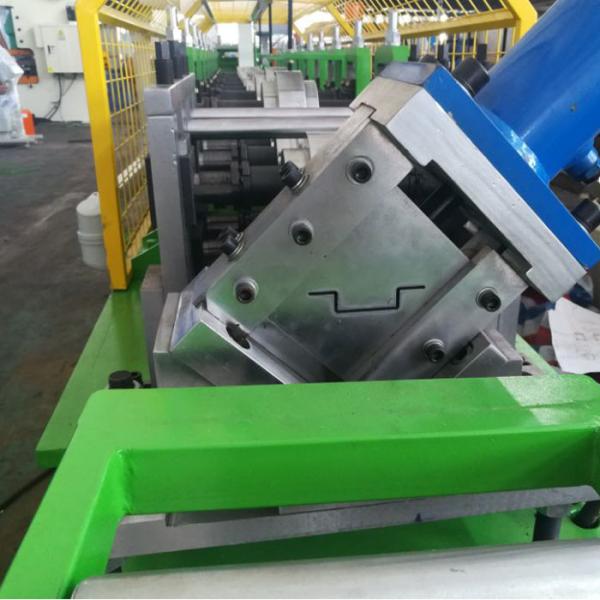

Stop cutting device	1 unit
Safety cover	1 unit
Out table	2 units
Spare parts	1 package

Working Flow of Roll Forming Machine

Decoiler----Hydraulic punching to make the hole—Roll forming——Cutting—Products collecting

Application:

Top hat is used for pallet shelving, which are the most economical method for supporting full pallet loads stored in industrial selective pallet rack shelving.

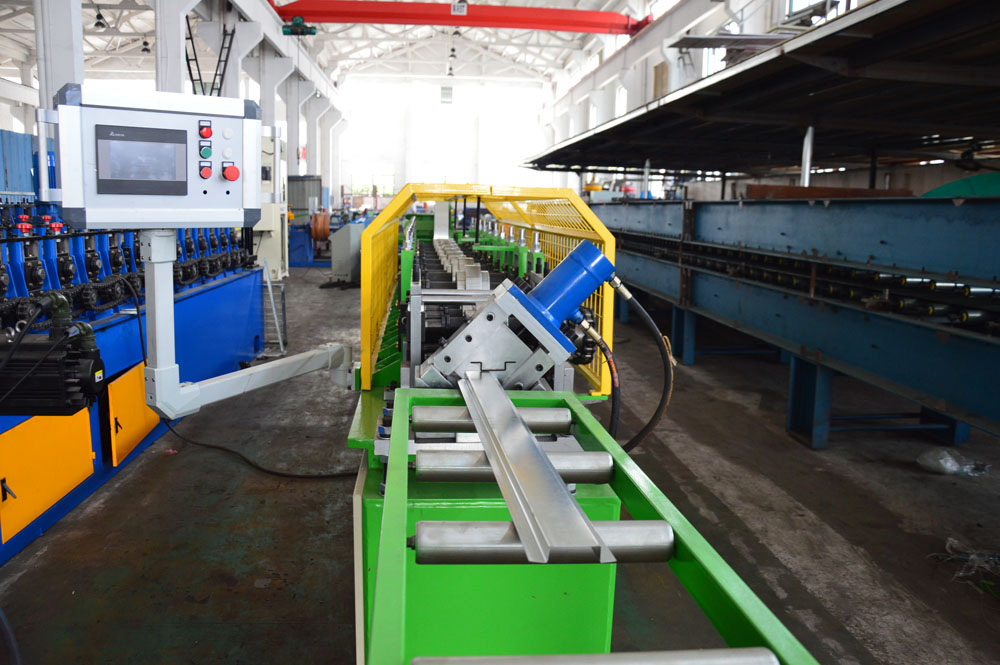

Photo Gallery
