836mm Round Wave Shaped Australia Popular Corrugated Roof Sheet Roll Forming Machine

Ask Lasest Price
Brand Name :	Sussman
Model Number :	SM-RP
Certification :	CE ISO SGS
Price :	negotiable
Payment Terms :	T/T L/C
Supply Ability :	30 sets per months
Delivery Time :	75 days after deposit

Add to Cart

Product Details
Company Profile

836mm Round Wave Shaped Australia Popular Corrugated Roof Sheet Roll Forming Machine

836mm Round Wave Shaped Australia Popular Corrugated Roof Sheet Roll Forming Machine

Roofing system roll forming machine has a big range of metal sheet profiles. It includes trapezoidal panel, PV-4, PV-5, corrugated panel, roof tile panel, step glazed tile, metal deck panel, standing seam panel, ridge cap, rain gutter, double layer/ two layer, K span panel and ridge cap machine. Its products are widely used in roof and wall system in workshop construction and housing construction.

The normal machinable thickness range of our roof panel roll
forming machine is 0.3mm-0.8mm, working raw material is Aluminum,
PPGI, Galvanized steel, Galvalume steel etc. We design the machine
according to your drawing, specially the pitch and height of each
wave. This machine is used to form the pre-painted sheet/GI
material to various roofing of the projects such as sports center,
exhibition center, subway project, airport and stadium etc.

Different countries has different its own commonly used profiles
and name. Here are some popular drawing profiles selected by our
customers:
U-Panel is an exposed fastened wall and roof panel. With a ¾”
(approximate) rib height and 6” on center rib spacing, U-panel
offers a lower profile and softer appearance than R-Panel or
Multi-Rib. U-Panel is widely utilized as a liner panel or partition
wall.

Technical parameter:

Item NO	Description	Offered specification
1.0	Roll forming machine
1.1	Rolling speed	12-15m/min(not include cutting time)
1.2	Rolling thickness	0.3mm-0.8m
1.3	Raw material	Color painted coils, Aluminium, Zinc, Galvanized
1.4	Main Motor	7.5KW
1.6	Dimension	About 8000×1600×1200(mm)
1.7	Effective width	836mm
1.8	Feeding Coil width	1000mm
1.9	Roller stations	About 18 stations
1.10	Roller material	45#forge steel, coated with chrome
1.11	Shaft diameter	Φ76mm
1.12	Transmission	By chain 1.2 inch
1.13	Material of chain	45# forged steel with frequency quenching, 12A
1.14	Material of cutting	Cr12Mov with quench HRC58-62°
1.15	Tolerance	10m+-1.5mm
1.16	Hydraulic station	4kw

Machine List:

5 tons passive de-coiler	1 set
Main roll forming machine	1 set
PLC Control box	1 unit
Hydraulic station	1 unit
Safety cover	1 set
Spare parts	1 set

working flow

Profile Drawing

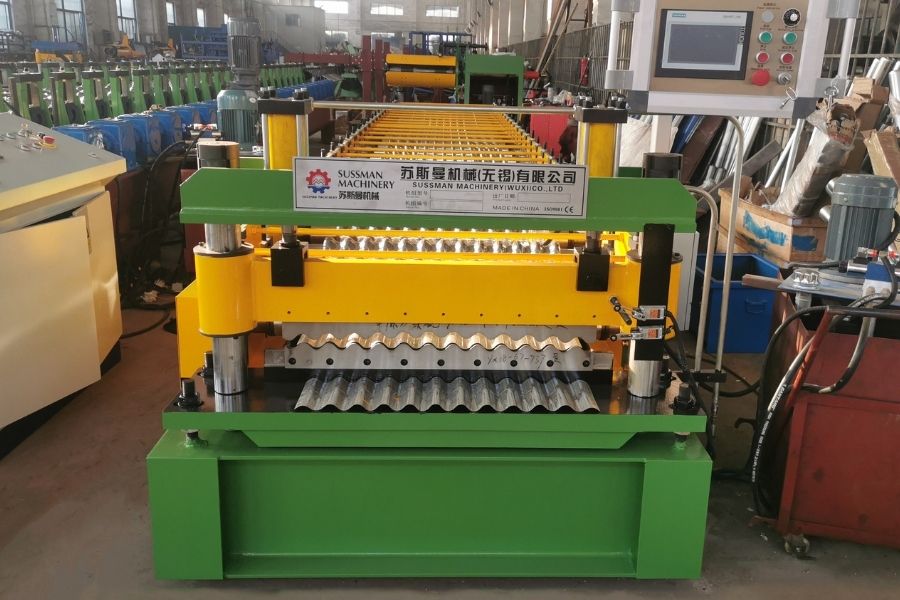

Machine Shows

Application
