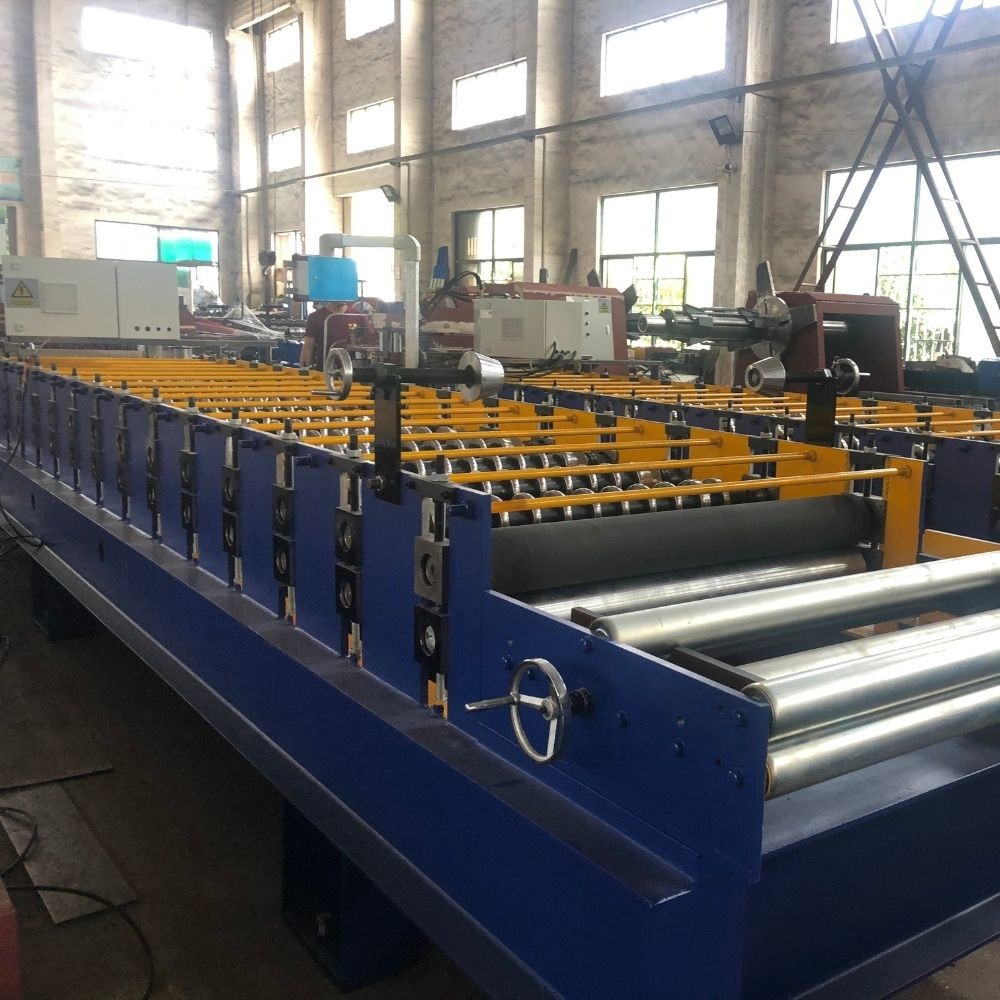

Trapezoidal Roof Panel Roll Forming Machine Peru TR4 TR5 TR6 Tile
Making Machine
Roofing system roll forming machine has a big range of metal sheet
profiles. It includes trapezoidal panel, PV-4, PV-6, 5V, corrugated
panel, roof tile panel, step glazed tile, metal deck panel,
standing seam panel, ridge cap, rain gutter, double layer/ two
layer, K span panel and ridge cap machine. Its products are widely
used in roof and wall system in workshop construction and housing
construction.
Roof Zinc Machine can produce material thickness range 0.3-0.8mm or
0.12-0.4mm, material PPGI, galvalume steel and galvanized steel,
also we can customized the machine according to your drawing. This
machine design is unit one, which means the control box and motor
are all put under the machine frame, when you get the machine, no
need to assemble and connect the complicate cable of the machine,
you only need to connect one main cable, then the machine is
working. it saves more time and space.
Technical Data
| Item NO |
Description |
Offered specification |
| 1.0 | Roll forming machine | |
| 1.1 | Rolling speed | 12-15m/min(not include cutting time) |
| 1.2 | Rolling thickness | 0.3mm-0.8m |
| 1.3 | Raw material | Color painted coils, Aluminium, Zinc, Galvanized |
| 1.4 | Main Motor | 7.5KW |
| 1.6 | Dimension | About 8000×1600×1200(mm) |
| 1.7 | Effective width | 1000mm |
| 1.8 | Feeding Coil width | 1219mm |
| 1.9 | Roller stations | About 24 stations
|
| 1.10 | Roller material | 45#forge steel, coated with chrome |
| 1.11 | Shaft diameter | Φ76mm |
| 1.12 | Transmission | By chain 1.2 inch |
| 1.13 | Material of chain | 45# forged steel with frequency quenching, 12A |
| 1.14 | Material of cutting | Cr12Mov with quench HRC58-62° |
| 1.15 | Tolerance | 10m+-1.5mm |
| 1.16 | Hydraulic station | 4kw |
Machine List
5 tons passive de-coiler | 1 set |
Main roll forming machine | 1 set |
PLC Control box | 1 unit |
Hydraulic station | 1 unit |
Safety cover | 1 set |
Spare parts | 1 set |
Working Flow:
Profile Drawing:
Detailed Images
Application
Maintance and the service of the machine
Daily maintenance with meticulous care plays an important part in
extension the equipments’ operation time and the quality of rolling
plank. Therefore, please do the following things in your daily
1.The hydraulic tank must be filled with 32# or 46# hydraulic oil
before using. The amount of oil is subject to the oil mark
2. Add and daub lube often to the outside parts. (Such as driving
chain,Scissors, gears, rollers, )
3. Wipe the surface dust of roller often and particularly work
outside. If you do not use it for long time ,you should daub
machine and lube in the roller surface and you need clean it when
you use next time.
4. If the equipment does not use for long time, you should use
plastics cloth or other articles to cover it and notice to avoid
rain and damp, especially electrical controlling box
5. Cutting device should add lube to the places where need lube to
the request
6. Usually look into hydraulic station and the oil quantity of
deceleration machine, you should add in time when oil quantity
shortage
7. Electrical components should be guaranteed to work in a dry
environment, such as damp. Rain should continue to work after
drying.
Topic
Metal roof sheets are a popular choice for both residential and
commercial buildings due to their durability, longevity, and
aesthetic appeal. Here are some key points about metal roof sheets:
Types of Metal Roof Sheets
1. Corrugated Metal Sheets:
- Recognizable by their wavy pattern.
- Often used for agricultural buildings and sheds.
2. Standing Seam Metal Roofs:
- Characterized by raised seams running vertically from the roof's
ridge to the eaves.
- Common in modern architectural designs.
3. Metal Shingles:
- Mimic the appearance of traditional roofing materials like slate,
wood, or tile.
- Offer a more classic look while providing the benefits of metal
roofing.
Materials
- Steel:
- Often coated with a layer of zinc (galvanized) or a mix of zinc
and aluminum (Galvalume) to prevent rust.
- Durable and cost-effective.
- Aluminum:
- Lightweight, resistant to rust, and ideal for coastal areas.
- More expensive than steel.
- Copper:
- Offers a distinctive aesthetic and develops a patina over time.
- Very durable but also one of the most expensive options.
- Zinc:
- Long-lasting and self-healing, meaning scratches will mend over
time.
- Like copper, it's quite expensive.
Benefits
- Durability:
- Metal roofs can last 40-70 years, depending on the material.
- Weather Resistance:
- Can withstand high winds, rain, snow, and even fire.
- Energy Efficiency:
- Reflects solar radiant heat, reducing cooling costs.
- Low Maintenance:
- Requires less maintenance compared to traditional roofing
materials.
Considerations
- Initial Cost:
- Higher upfront cost compared to asphalt shingles.
- Noise:
- Can be noisier during rain or hailstorms, although proper
insulation can mitigate this.
- Expansion and Contraction:
- Metal expands and contracts with temperature changes, which can
lead to issues if not properly installed.
Installation
Proper installation is crucial to ensure the longevity and
performance of a metal roof. It is recommended to hire experienced
professionals who understand the specific requirements of metal
roofing systems.
Conclusion
Metal roof sheets offer a robust, long-lasting, and aesthetically
versatile roofing option suitable for a wide range of applications.
Whether for residential homes, commercial buildings, or
agricultural structures, the various types and materials available
can meet diverse needs and preferences.
