40-200mm Width Adjustable C U Stud And Track Roll Forming Machine
For Chile Market
Stud Track Drywall machine is used to plaster board, gypsum board
and other decorative finishes lightweight board made of
non-load-bearing walls and roof of the building style decoration, a
variety of decorative building roof shape, inside and outside the
building wall and ceiling scaffolding base material.Products made
by this machine are suitable to use in hotels, theaters, shopping
malls, factories, office buildings, old building renovation,
interior decoration settings, roof and other places.
Gypsum Board Drywall Partition Ceiling System Machine is widely is
widely used to produce C U drywall machine, Main c channel
machine,wall angle machine, roof batten machine, T bar machine,
etc.
The C U drywall machine can do material thickness 0.3-1.2mm with
raw material Cold-rolled Steel, Galvanized Coil, PPGI. Also can do
C U size from 40mm to 200mm adjust automatically, just put
different feeding coil width.
The machine includes decoiler, Feeding and Leveling Device, main
forming machine, hydraulic cutting device, the Frequency converter
controls the motor speed, the PLC system controls length and
quantity automatically.
Our produced profile meet ISO, CE , UL standards, and our machine
is applied to steel structure, industry or home.
1. Technical Parameter
| Stud Track Roll Forming Machine |
| No. | Item | Specification |
| 1 | Suitable material | 0.3-1.2mm Galvanized Coil G350Mpa-G550Mpa |
| 2 | Forming speed(m/min) | About 8-12m/min |
| 3 | Forming station | 18 rollers |
| 4 | Decoiler | Electric decoiler |
| 5 | Main machine motor | Famous China brand |
| 6 | PLC brand | Delta |
| 7 | Driving system | Chain drive |
| 8 | Rollers’ materail | 45# Steel |
| 9 | Station structure | Cast iron structure |
| 10 | Punching system | Yes |
| 11 | Cutting system | Non stop cutting |
| 12 | Power supply requirement | 380V 50HZ or customized |
| 13 | Machine color | Industrial blue or customized |
| 14 | Servo feeder | Yes |
2. Machine Components
The stud track keel machine uses strip steel as raw material,
through continuous cold rolling, to produce complex cross-section
profiles, using PLC control, simple operation, integrated machine
equipment, saving space
1.Electrical control
A. PLC[Delta]
b. Inverter [Delta]
c. Length Encoder [OMRON]
D. Remote control host
2. Hydraulic
A. Hydraulic pump station: 4w
b. The electromagnetic valve
c. hydraulic cylinder
| 3 tons manual decoiler | 1 set |
| Servo feeder | 1 set |
| Press punching device | 1 set |
| Roll forming machine | 1 set |
| Hydraulic station | 1 set |
| Electric Control box system | 1 unit |
| 4M Passive out table | 1 unit |
| Safety cover | 1 unit |
| Spare parts | 1 package |
3. Application
Typically used in corridors, bathrooms, kitchens and fire tunnels a
spanning system can overcome a lack of supporting structure above
by providing a ceiling joist to which plasterboard or other lining
materials can then be fixed.
4. Working flow
Decoiler--servo feeding- press punching for the holes and
notch--roll forming-- hydraulic cutting- out put tables

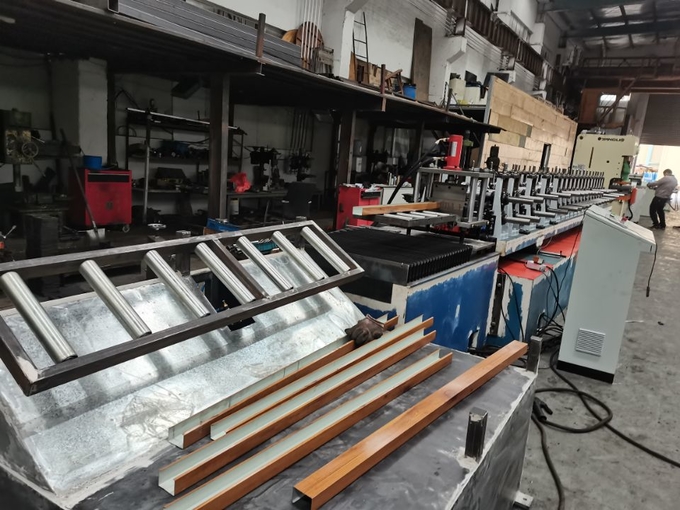

5.Machine picture
Light steel frame machine is to make the wall strcuture or ceiling
system, it is used to plaster board, gypsum board and other
decorative finishes lightweight board.
Products made by this machine are suitable to use in hotels,
theaters, shopping malls, factories, office buildings, old building
renovation, interior decoration settings, roof and other places.
Material for this machine is galvanized steel plate, snowflake
plate and cold steel plate,we can according to customer design,
manufacture different specifications of cold-formed.
