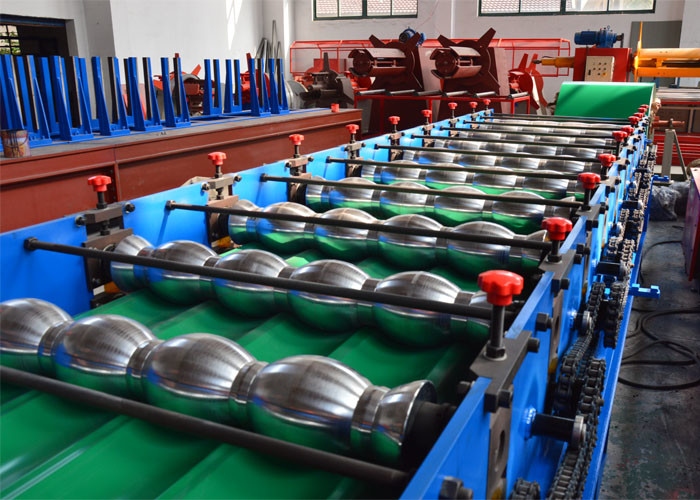

Color Painted Galvanized Steel Glazed Tile Roll Forming Machine
Metal Roofing Making Machine With PLC Control
The finished products are widely used in garden-like factories,
tourist scenic spots, pavilions and pavilions, hotel villas,
exhibition halls, resorts, resorts and so on. It has many
advantages, such as beautiful scenery, Home and other architectural
and outdoor decoration.
Technical Parameter
Color Steel Sheet Thickness: 0.4~0.7mm Color Sheet
Color Steel Sheet width: 1000mm
Roller Stations: 16 stations
Way Of Drive:1.2 inch single chain
Roller Material: 45# forge steel, coated with chrome
Shaft Material and DIA:￠76mm, material is 45# forge steel
Main Motor Power: 7.5kw
Press parts:
Type:Hydraulic
Hydraulic Station Power: 5.5kw
Size of the press parts: 2000*1800*1500mm
1 | Suitable material | Color steel sheet ,galvanized steel sheet, aluminium sheet |
2 | Width of material | 1000mm or 1220mm |
3 | Thickness of material | 0.4-0.7mm or as your needs |
4 | Working speed | 10-12m/min |
5 | Electrical control system | PLC control system |
6 | Shaft diameter | 80mm |
7 | Dimension | 8500x1800x1500mm |
8 | Weight | About 8T |
9 | Voltage | 380V 3phase 50HZ or as the customer's requirements |
10 | Material of roller | High grade 45# forged steel plated with hard chrome plating |
11 | Material of cutting | Cr12 mould steel with quenched treatment |
12 | Workers | One or two person |
Main Components
| S.N | Equipment name | Quantity |
| 1. | 5 Tons passive un-coiler | 1 set |
| 2. | Main roll forming machine | 1 set |
| 3. | Hydraulic cutting | 1 set |
| 4. | Control system (including control box) | 1 set |
| 5. | Out tables | 2 sets |
Working Flow of Glazed Tile
Decoiler----Feeding---Roll forming---Press & Cutting---Run out
tables
Profiles of Glazed Tile
Application
Glazed Steel Tile Making Machinery for Colored Glazed Steel Roofing
Sheet is used to make the color glazed tiles in batch by the Steel
Tile Making Machinery. the finished product of Glazed Steel Tile
Making Machinery For Colored Glazed Steel Roofing Sheet is widely
used in the construction of various industrial plants, villages,
warehouses, supermarkets, hotels, exhibition, family construction,
shopping malls shutter doors and etc. It has the advantage of
beautiful, classical appearance and grace taste. This machine
working speed is around 4-5 meter per minutes.
