    PLC Galvanized Steel Roll Forming Machine Top Hat Channel With 12 Stations 1.2mm

    Galvanized Steel Top Hat Channel Omega Profile Roll Forming Machine With 12 Stations



    Furring channel machine is used to plaster board, gypsum board and other decorative finishes lightweight board made of non-load-bearing walls and roof of the building style decoration, a variety of decorative building roof shape, inside and outside the building wall and ceiling scaffolding base material.Products made by this machine are suitable to use in hotels, theaters, shopping malls, factories, office buildings, old building renovation, interior decoration settings, roof and other places.


    Material for this machine is galvanized steel plate, snowflake plate and cold steel plate,we can according to customer design, manufacture different specifications of cold-formed.


    The machine includes decoiler, feeding and leveling device, main forming machine, hydraulic cutting device, the frequency converter controls the motor speed, the PLC system controls length and quantity automatically. Our produced profile meet ISO, CE , UL standards, and our machine is applied to steel structure, industry or home.


    Product Description


    Decoiler: 3 ton manual

    Roll Forming Machine: About 12 station

    Rolling Speed: 0-10m/min

    Main Motor: 7.5kw

    Hydraulic Power: 4kw

    Output Table: one manual 6 meter output table


    Machine Technical Parameter


    ItemsSpecifications
    Material of coilMaterial Thickness0.4-1.2mm
    De-coilerWeight3 ton manual
    Forming systemRolling Speed0-10m/min
    Roller StationsAbout 12 stations forming
    Roller MaterialGcr15 Steel with quenching
    Shaft Material45# Steel
    Main Motor Power7.5 kw
    Hydraulic cutting Power4 kw
    Cutting
    system
    Material Of CuttingCR12 with quench treatment
    HardnessHRC58-62
    Tolerance+-1.5mm
    Cutting blade1 set of cutting blade
    Electrical control systemElectric Source380V, 50HZ
    Control SystemPLC with touch screen Japanese Panasonic and Yaskawa Brand
    WeightAbout 3.5 tons
    Way Of Drive1 inch single chain
    Size of machineLength 5500mm* Width 600mm* Height 800m




    Main Components


    Main Components
    3 ton passive de-coiler1 set
    Feeding with guide1 set
    Main roll forming machine1 set
    PLC control system1 unit
    Hydraulic station1 unit
    Stop cutting device1 unit
    Safety cover1 unit
    Out table1 unit
    Spare parts1 package



    Working Flow of Roll Forming Machine

    feeding with guide—Roll forming——Cutting—Products collecting

    0.4 - 1.2mm Omega Section Roll Forming Machine Galvanized Steel Cr12 Roller 0




    Standard Profile and Drawing Of Product
    angle -steel -bar profile.jpg

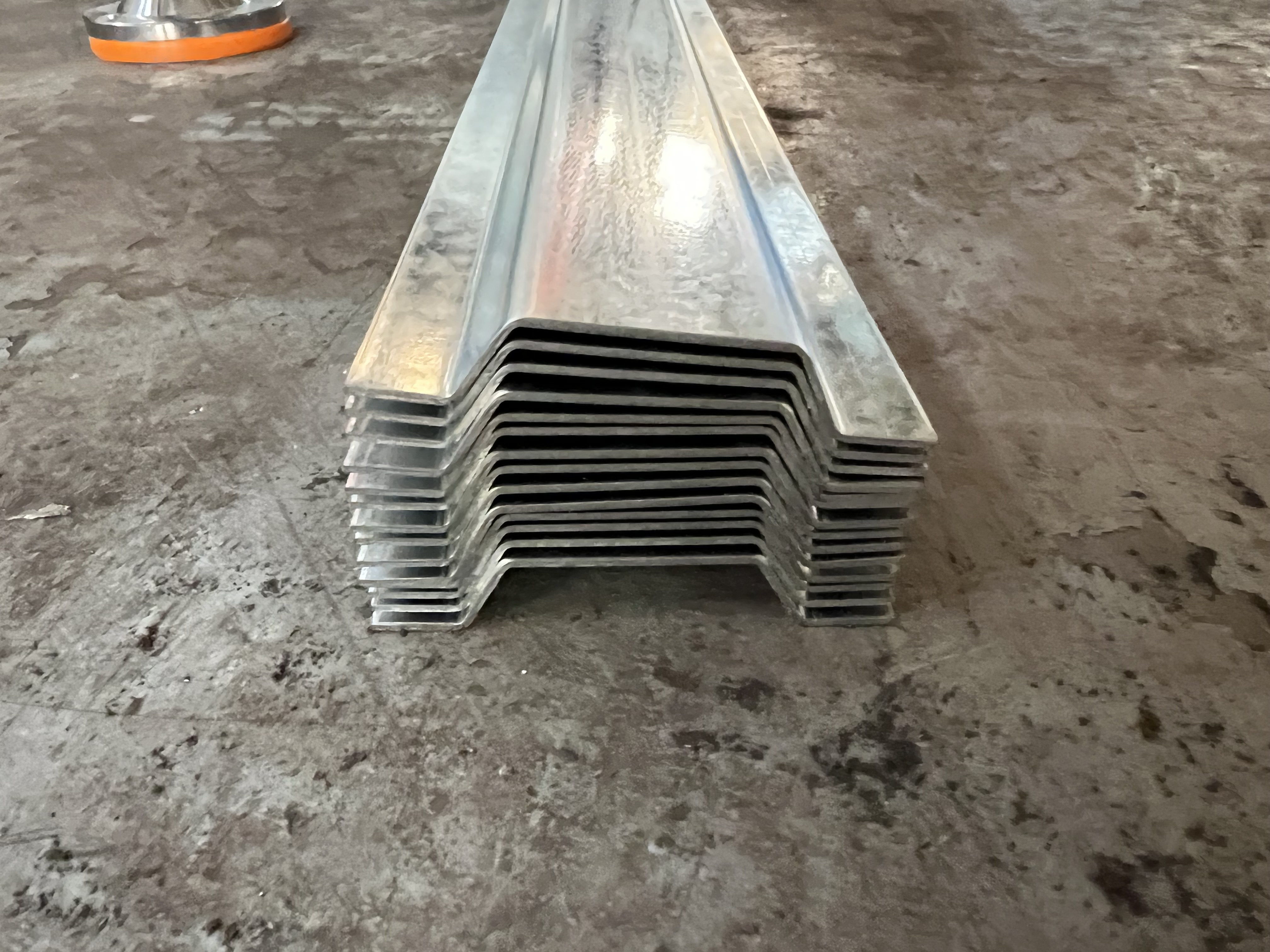

    Product Images



    Application
