123mm*88mm Galvanized Metal Steel Soffit Facia Gutter Roofing Roll
Forming Machine
Fascia gutter is a square feature gutter providing a clean
appearance and the strength advantages of a stiffened back.
The gutter has a large water carrying capacity and a high front
(with overflow slots if required) to conceal the edge of the
roofline. The capping mitres at the corners neatly to provide a
clean finish. Ideal for carports and flat roofs.
1, Metal Fascia is the modern, good looking and economical
alternative to timber.
2, Metal Fascia forms part of a total system of rainwater goods,
such as Roof and Wall Cladding, Gutter, Capping and Downpipes, and
can be used with any type of roof and gutter system.
3, Metal Fascia is straight, won’t shrink or warp and will last a
lifetime.
4, Metal Fascia is used as both fascia and barge and is mounted on
adjustable pressed steel brackets using a very simple fixing
method.
5, Metal Fascia Cover is also available, which can be used to
re-face timber, giving a fresh new look to your home.
1. Technical Parameter
| Gutter roll forming machine |
| No. | Item | Specification | Optional |
| 1 | Suitable material | Type:Galvanized Coil, PPGI, Carbon steel Coil | |
| | Thickness(mm):0.3-0.8 | |
| | Yield strength: 250 - 550MPa | |
| | Tensil stress( Mpa):G350Mpa-G550Mpa | |
| 2 | Nominal forming speed(m/min) | 8-10 | Or according to your requirement |
| 3 | Forming station | 16 | According to your profile |
| 4 | Decoiler | Manual decoiler | Hydraulic decoiler or double head decoiler |
| 5 | Main machine motor | China famous brand | Siemens |
| 6 | PLC brand | Delta | Siemens/Panasonic |
| 7 | Inverter brand | Yaskawa | |
| 8 | Driving system | Chain drive | Gearbox drive |
| 9 | Rollers’ materail | Steel #45 | GCr15 |
| 10 | Station structure | Wall plate |
Forged Iron station Or Wall panel structure
|
| 11 | Punching system | No | Hydraulic punching station or Punching press |
| 12 | Cutting system | Post-cutting | Pre-cutting |
| 13 | Power supply requirement | 380V 60Hz | Or according to your requirement |
| 14 | Machine color | Industrial blue | Or according to your requirements |
2. Flow Chart
Uncoiling – Infeed Guiding– Roll forming – Hydraulic cutting –
Run-out table
3. Machine Components
The portable gutter roll forming machine comprised of 3T manual
uncoiler, infeed guiding, roll forming machine, cutting equipment,
hydraulic system, electrical controlling system, output table and
portable device.
4. Gutter Machine Photo

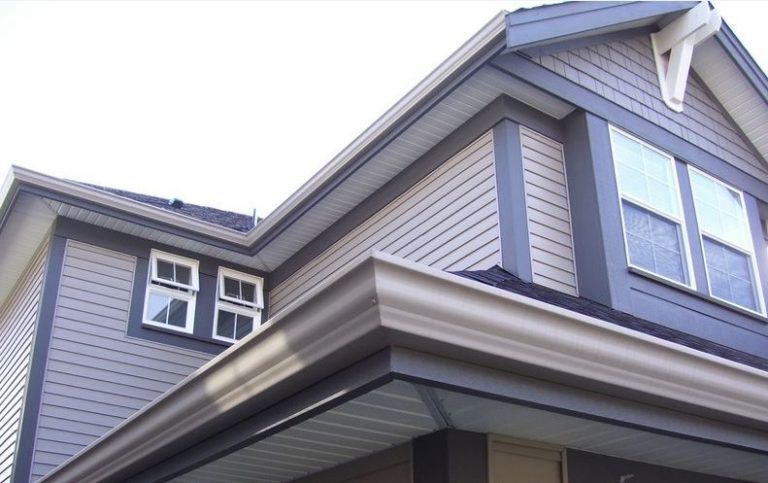

5.Application
