    1.3mm Top Hat Stud And Track Roll Forming Machine Steel Light Keel Omega Profile

    Ask Lasest Price
    Brand Name : Sussman
    Model Number : SM-RM
    Certification : SGS, ISO9001, CE
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 10 sets per month
    Delivery Time : 60 days after deposit
    • Product Details
    • Company Profile

    1.3mm Top Hat Stud And Track Roll Forming Machine Steel Light Keel Omega Profile

    1.3-1.5 Mm Color Steel Light Keel Omega Profile Top Hat Roll Forming Forming Machine For Roof And Ceiling Batten


    Hat channel machine also called omega profile machine, furring channel machine, roof battern machine, we can design the machine as your requirement.


    The thickness can be made 0.9-1.5mm, material is galvanzied steel, but also can do color painted steel (PPGI), we give the client plastic film device to avoid products surface scratches.


    Compotent: 3 tons manual decoiler, hat roll forming machine, hydraulic cutting device, control box system and finished table


    Technical parameter


    Item

    Technical data

    Steel sheet thickness

    1.3-1.5mm galvanized steel,PPGI,GI

    Hydraulic power

    4kw

    Transmission way

    1 inch chain

    Capacity of Decoiler

    3 Tons passive

    Forming Speed

    8-12m/min

    Roller Groups

    about 12 rollers

    Roller Material

    45# high grade steel with finish machining treatment, by high frequency quenched HRC58-62

    Roller Diameter

    60mm

    Principal Axis

    45# high grade steel with quenching treatment

    Main Motor Power

    5.5 KW

    Dimension

    About 4.8*0.8*1.200m


    Applications


    1. Used to level uneven surfaces
    2. Furring channel is used on masonry walls and ceiling assemblies

    3. furring is commonly used for purlins in exterior applications
    4. Furring channel is used in conjunction with U-channel, hanger wire, and furring channel clips to form rigid suspended ceiling framework


    Main Components

    Machine nameQuantity
    3T passive uncoiler1 set
    Main roll forming system1 set
    Hydraulic stop cutting system1 set
    4 meters out tables1 ste
    PLC control box system1 set
    Toll box1 package
    Safety cover

    Hat Furring Channel Machine Advantage


    1.The roller is solid and electroplated, which will not have rust

    2.The material are all national standard.

    3.The board is cost iron frame and all milled and polished.

    4. Only need one main power wire

    5. Two people to operate it

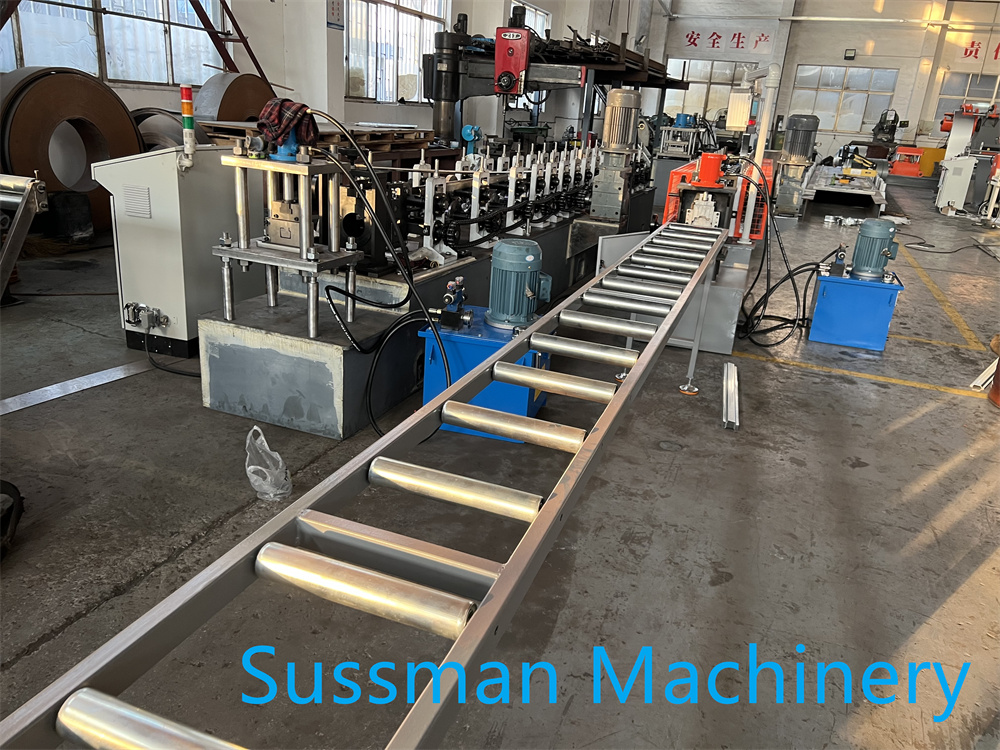

    Furring Channel Machine Photo
