1.5mm Thickness Galvanized Steel Metal Shutter Door C Profile Guide
Rail Roll Forming Machine
Shutter door guide rail roll forming machine | Guide rail machine |
C guide rail roll forming machine | Shutter patti guide rail
roll forming machine | door slide guide roll forming machine
Shutter door guide rail roll forming machine popular sell in many
countries. We ship shutter guide rail roll forming machine all over
the world like India, Thailand, Russia, Algeria, Qatar, Morocco,

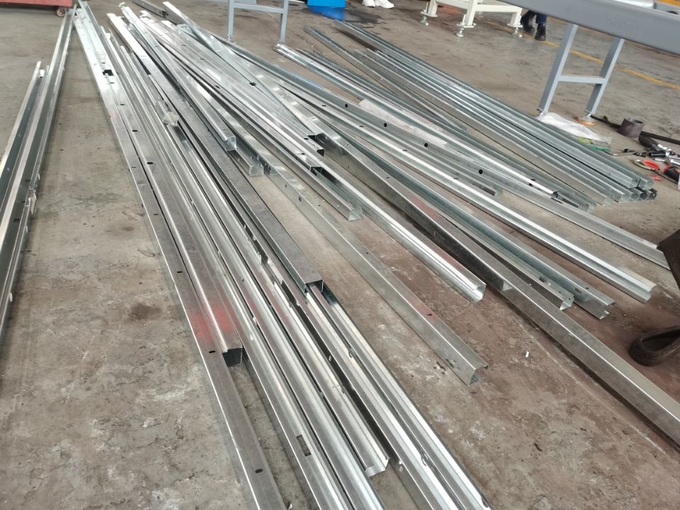

Saudi Arabia, Oman etc. Product thickness common between 0.8-1.5mm,
material use Galvanized steel.This machine is for a customer from America, the thickness 1.5mm,
the working speed of the whole line is 3-4 meters/min. It has 3
sets of punching moulds. If you are interested in, please contact
me.
We manufacture steel shutter door, steel garage door, door seaming
machine, door packaging machine, door guide rail,rolling shutter
door bottom machine,etc.
The completed production line is with components of Decoiler,
Hydraulic punching to make notch hole, Roll forming
machine,hydraulic cutting system, Electrial control system and out
put tables.
Our Shutter door roll forming machines have made and exported to
many oversea countries,like America, Chile, Combolia,
Nicaragua,Algeria,South Africa,etc.
Shutter Door Machine Technical parameter
| Items | Specifications |
| Material of coil | Material Thickness | 1.3mm-1.5mm galvanized coils |
| De-coiler | Weight | 3 tons automatic |
| Forming system | Rolling Speed | About 3-5 m/min(including punching and cutting time) |
| Roller Stations | About 16 stations forming |
| Roller Material | Gcr15 steel with quenching |
| Shaft Material | 45# Steel Diameter 75mm shaft
|
| Main Motor Power | 7.5 kw |
| Hydraulic punching motor | 4Kw |
Cutting system | Method of cutting | Saw cutting |
| Tolerance | +-1.5mm |
| Electrical control system | Electric Source | 220V, 60HZ,3 phase or customized
|
| Control System | PLC with touch screen |
| Weight | About 5 tons |
| Way Of Drive | Chain |
| Size of machine | About Length 7500mm* Width 800mm* Height 1200m |
Shutter Door Machine Main Components
| Name | Quantity (set) |
| 3T Automatic De-coiler | 1 set |
| Hydraulic punching device | 1 set |
| Feeding with guide | 1 set |
| Main roll forming machine | 1 set |
| Run out tables | 2 sets |
| Control box | 1 set |
Rolling Shutter Door Machine Working Flow
De-coiler—→feeding with guide—→main roll forming machine—→hydraulic
cutting&punching —→ run out table
Advantage for our roller shutter
1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Durable
6. Reliable
Rolling Shutter Door Machine Profile Drawing
