2mm-3.5mm Thickness Carbon Steel Hydraulic Cutting C U Channel Purlin Roll Forming Machine

Warehouse shelf upright roll forming machine is widely used in producing upright frame, box beam and step beam. Our intelligent roll forming machine could make wide range of sizes using cantilever type structure, and automatically change by motors from one size to the other not only at width but also at height. The one and only step is to put your required data into our touch screen and wait for few seconds. Machinable thickness is from 1.5-3mm with raw material Cold-rolled Steel, Galvanized Coil, PPGI, Carbon steel, Stainless Steel and Aluminum. Our produced profile meet ISO, CE , FEM standards, and our machine is applied to Warehouse ,supermarket ,industry or home.

Technical Data:

• Suitable Plate Material: thickness 2mm-3.5mm, Carbon steel
• Working Speed: 3-4 meters /minutes
• Forming Steps: about 16 stations
• Material of Roller: Cr12mov, Quench HRC58-62 Plated Chrome
• Material of Shaft: 45# Advanced Steel (Diameter: 90mm), thermal refining
• Driven system: Gearbox drive
• Main Power with reducer: 22 KW WH Chinese Famous
• Power supplier: 380V, 60 Hz, 3Phase
• The whole machine is controlled by industry computer-PLC.
• PLC--Delta, Japan English and Chinese Language
• Touch Screen—Delta
• Encoder--Omron, Japan
• Electric parts--Schneider

Main Components

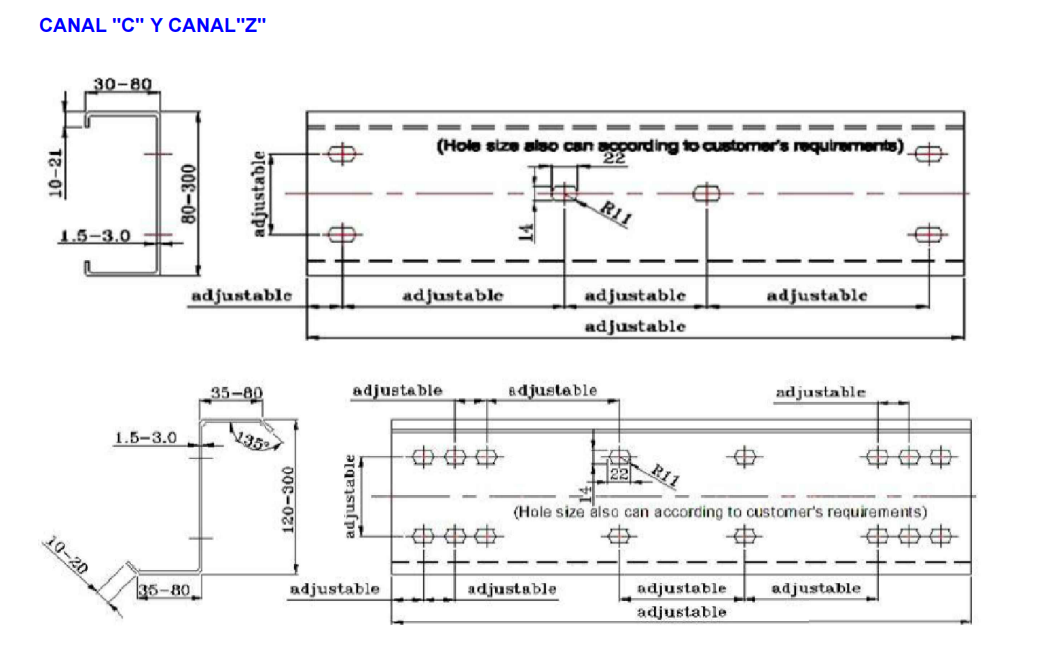

Profile drawing:

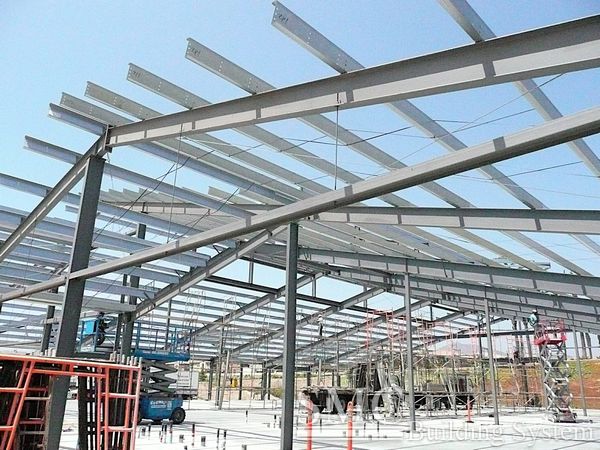

Application

The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises’s growing demand.
